• Up to 15% less energy consumption: The optimised refrigeration unit with highly efficient compressors and EC fan motors reduces energy demand while delivering higher cooling capacity. This lowers ongoing operating costs and increases efficiency.
• Sustainable operation with fewer emissions: With 44% fewer emissions compared to other units, the refrigeration system helps reduce environmental impact. Cooling performance is maintained.
• Safe food quality through stable temperatures: The HACCP-ready function regularly monitors and records the chamber temperature. Combined with digital control, this supports reliable freshness preservation.
• More storage space in the cold room: Ceiling mounting frees up wall and floor areas for shelving and stored goods. This optimises the use of available space.

• Ceiling cooling unit of European manufacture
• For a maximum of 9.7 m³ cold storage room
• Temperature range: -5 °C to +15 °C
• LED display and keyboard with backlighting
• Hermetic compressor & evaporator as Cu/Alu finned heat exchanger
• Condensate drain directly into heated condensate evaporation tray
• Bluetooth connectivity for app control
• Includes door contact switch with 2.5 m cable and LED cold room light with 5 m cable

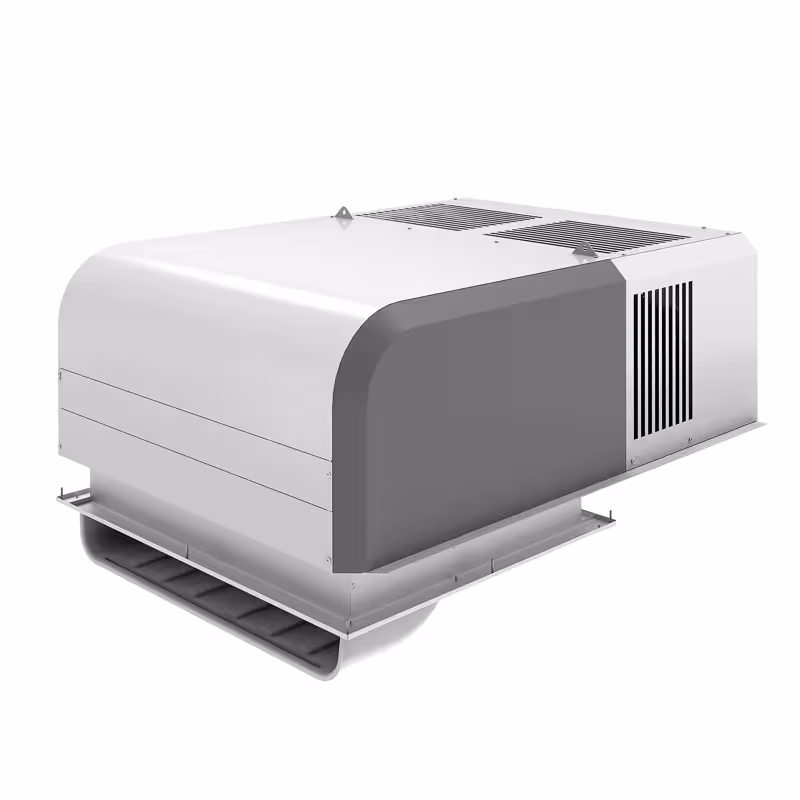

Efficient cooling in the cold storage room

The ceiling cooling unit is a reliable solution for the efficient cooling of cold storage rooms and operates in an energy-saving manner. The air-cooled condenser is designed for quiet operation and can therefore be used in areas where low noise is important. The hermetically sealed compressor works together with the powerful evaporator to provide reliable cooling performance. Thanks to the high-quality polyurethane insulation, heat loss is reduced, and the integrated app control allows operating parameters to be easily accessed at any time via smartphone.

• ⚠️ To ensure adequate ventilation and efficient operation, we recommend leaving 400 mm of space on each side and maintaining at least 200 mm clearance to the ceiling.
• Please observe the recommended ceiling thickness of the cold room, which should be at least 60 mm and no more than 180 mm.

• We recommend regularly checking the refrigeration unit for dirt and frost build-up and carefully cleaning it as necessary. This ensures optimal air circulation and reliable cooling performance are maintained.
