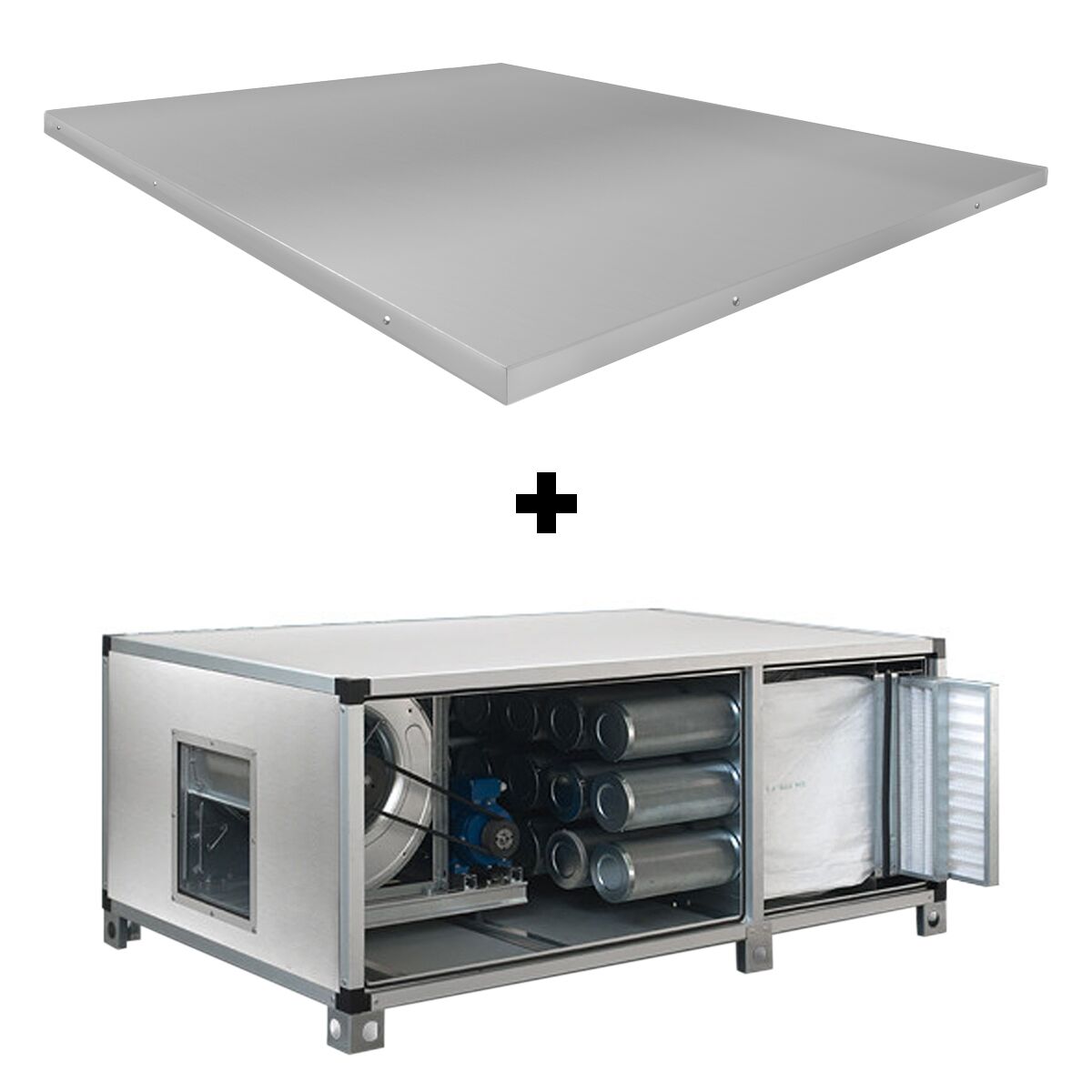

Commercial kitchen extract air cleaning unit with motor - 5,400 m³/h - With pre-filter, pocket filter and activated carbon filter - Incl. protective panel

Recommendation:

• Change the pre-filter every month
• Change the filter every 3 months
• Change the activated carbon filter every 6 months

Design

• Low-noise activated carbon filter system
• TOP performance 5400 m³
• With motor and protection panel for outdoor use
• Low energy consumption
• Environmentally-friendly
• Radial fan with dual exhaust
• Pre-filter, pocet filter and activated carbon filter
• Air filtration and deodorisation
• Deodorisation (removal of undesired smells)
• Easy to clean

High quality

• Aluminium profile frame
• Noise and pressure resistant covering
• Interior made of hot-dip galvanised sheeting and stainless steel exterior

Connection

• Power: 1,5 kW
• Electrical connection: 3 / N / PE 400 volts / 50 Hz

Dimensions

• External dimensions W x D x H: 987 x 2006 x 750 mm

Supplied with

• Engine
• 14x activated carbon filtres
• 2x Prefilter
• 1x Pocket filter
• Protection panel

Compliance with standards

• ErP Guideline 2018
• Manufactured in accordance with relevant hygiene and safety standards
• CE marking as proof of conformity with EU regulatory standards
•


Please note:

• IMPORTANT: to avoid motor failure, it is important to connect the existing thermal contact to the speed controller. A fault due to an unconnected thermal contact is not covered by the warranty.
• Operation only with an inverter!
