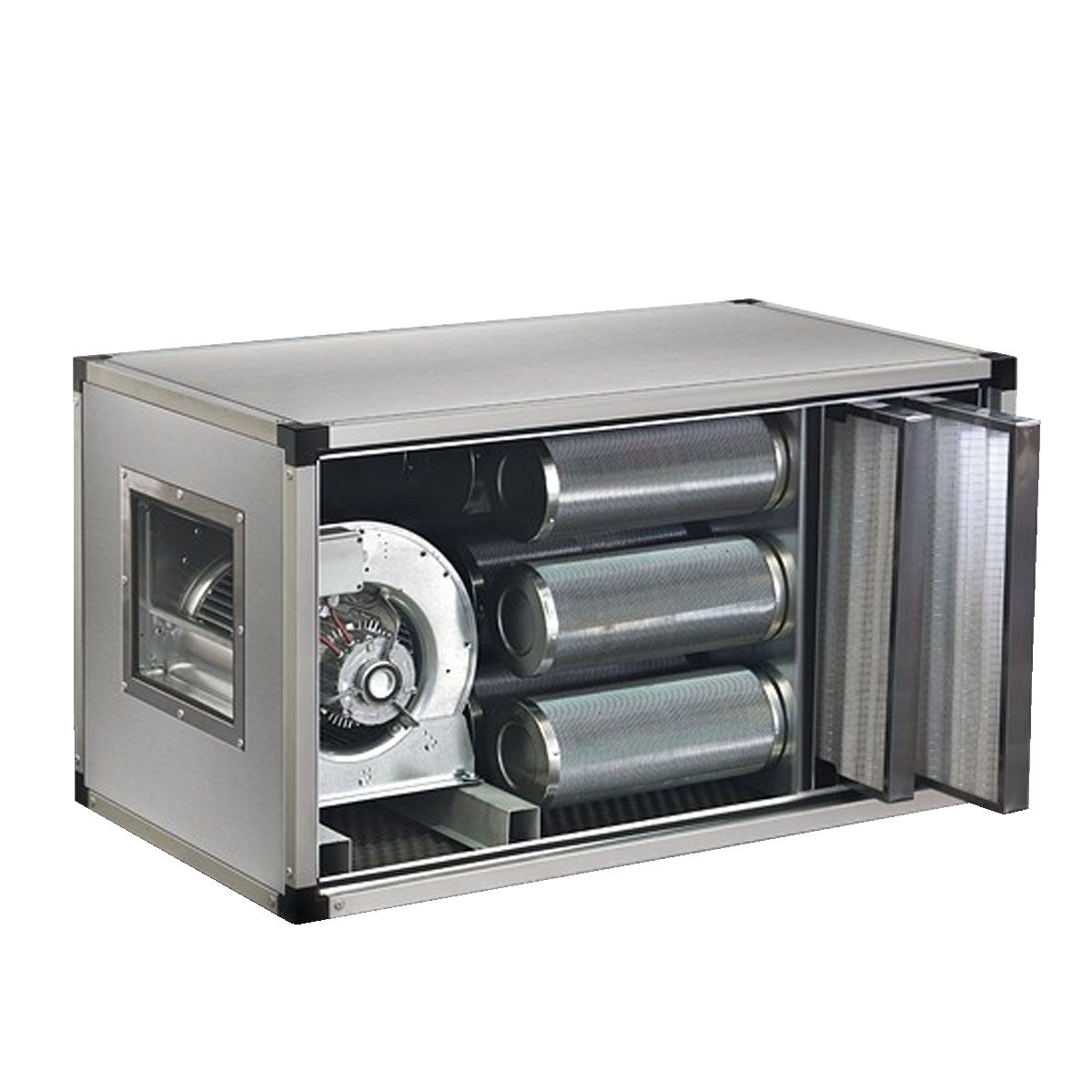

Commercial kitchen extract air cleaning unit with motor - 2,000 m³/h - With pre-filter and activated carbon filter

Design

• Low-noise activated carbon filter system

• TOP performance 2.000 m³

• With motor

• Low energy consumption

• Environmentally-friendly

• Pre-filter and activated carbon filter

• Air filtration and deodorisation

• Deodorisation (removal of undesired smells)

• Easy to clean

Quality

• Aluminium profile frame

• Noise and pressure resistant covering

• Interior made of hot-dip galvanised sheeting and stainless steel exterior

Connection

• Power: 300 Watt

• Electrical connection: 230V / 1N/PE / 50 Hz

Dimensions

• External dimensions W x D x H: 1.200 mm x 670 mm x 520 mm

Scope of delivery

• Engine

• 6 Activated carbon filter

• 1 Prefilter

Guidelines

• ErP Guideline 2018

• Compliant with European Regulation 1253 (ERP 2018)

• Manufactured in accordance with relevant hygiene and safety standards

• CE marking as proof of conformity with EU regulatory standards

Notes

• IMPORTANT: to avoid motor failure, it is important to connect the existing thermal contact to the speed controller. A fault due to an unconnected thermal contact is not covered by the warranty.

Recommendation:

• Change the pre-filter every month

• Change the activated carbon filter every 6 months
