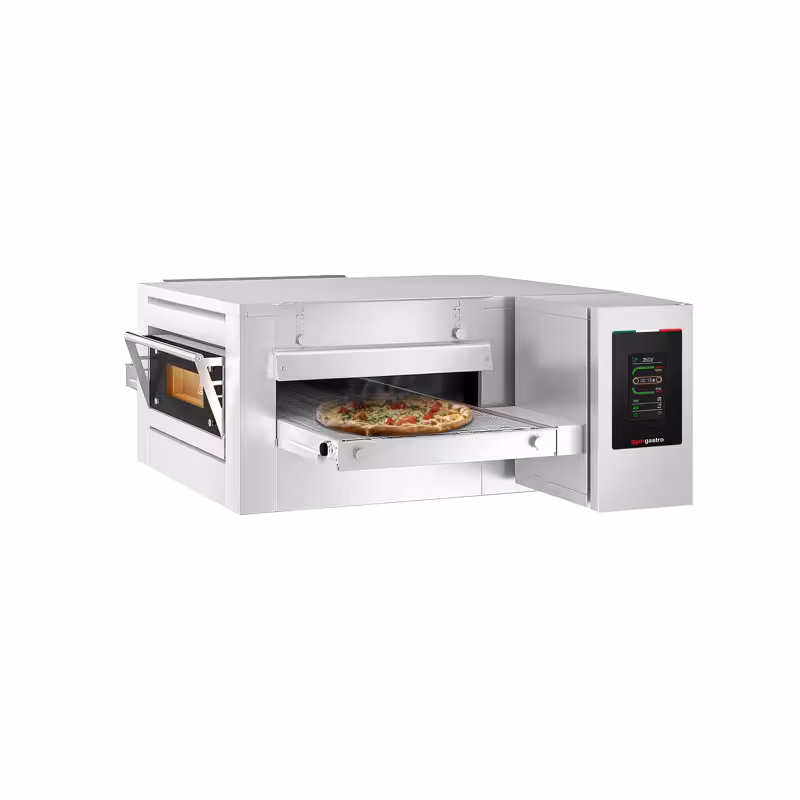

Commercial Electric Conveyor Oven – 1650 × 2150 mm – Touch Control – 800 mm Belt Width
Rate now
SKU DPZ17030EN
Temperature up to 350 °C
Print* net price | gross price incl. 19% VAT.: €12,096.34
Accessories
Description
Product advantages
- No. 1 among continuous ovens in Europe
- The maximum temperature of 350 °C is more than sufficient to achieve perfect results, thanks to the optimized ventilation system
- 10 Cooking programs - setting options for each program: cooking time, temperature and power for the upper and lower part of the oven
- ECONOMY function for lower production quantities - save money and energy
Please note
- Heat oven slowly during initial start-up. Increase temperature by 50 °C every 30 minutes until temperature of 350 °C is reached. With the door open, heat through for 4 hours at the set temperature of 350 °C heat through .
Design
- Electric convection oven
- Professional device for staff costs savings
- Maximum energy saving thanks to top-quality insulation
- Reverse button: Enables the direction of the conveyor belt to be easily reversed at the touch of a button
- Integrated safety thermostat
- Modern touch panel: Intuitive operation thanks to a highly sensitive and shock-resistant next-generation display
- Automated weekly schedule: Programmable automatic switch-off based on fixed operating times for the entire week
- Patented system for a cool external housing
- Heat-resistant control window
- Superior performance with low power consumption (good for the environment)
- All DPZ pass-through ovens can be stacked
- Remote control via app: Comprehensive control and monitoring of the oven via the Zanolli web app
- IoT connectivity: Intelligent networking of the device for digital processes.
Quality
- Body made of high-quality Stainless Steel
Oven chamber
- Optimal and even heat distribution
- Operating temperature is reached in record time
- Electronic temperature control
- Easily accessible interior
- High hourly productivity
- Perfect baking results, even without prior experience
- Efficient handling: Direct loading of the belt without doors, shovels or tools
- Always crispy baking results
- Product is transported directly to the area of use
- Side access ( for monitoring of the baking process)
Guidelines
- Manufactured in accordance with relevant hygiene and safety standards
- CE marking as proof of conformity with EU regulatory standards
- Material complies with European food standards
Technical data
Overall dimensions
| Width | 1.650 mm |
|---|---|
| Depth | 2.180 mm |
| Height | 600 mm |
Inner dimension per oven
| Width of the Interior | 800 mm |
|---|---|
| Depth Interior | 1.200 mm |
| Height Interior | 100 mm |
Details
| Operation | Touchscreen |
|---|---|
| Number of baking chambers | 1 Baking Chamber |
| Bandwidth | 800 mm |
| Minimum baking time | 1,75 ' |
| Maximum baking time | 30 ' |
Baking method
| Heating type | Convection |
|---|---|
| Temperature to: | 350 °C |
Connected load
| Operation type | Electric |
|---|---|
| Power | 24,45 kW |
| Power Connection | 400V |
| Phase | 3N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping Method | Haulage |
|---|---|
| Delivery condition | Partly Mounted |
| Gross Weight | 430 kg |
Download
Download / Exploded drawing
Download / Exploded drawing
