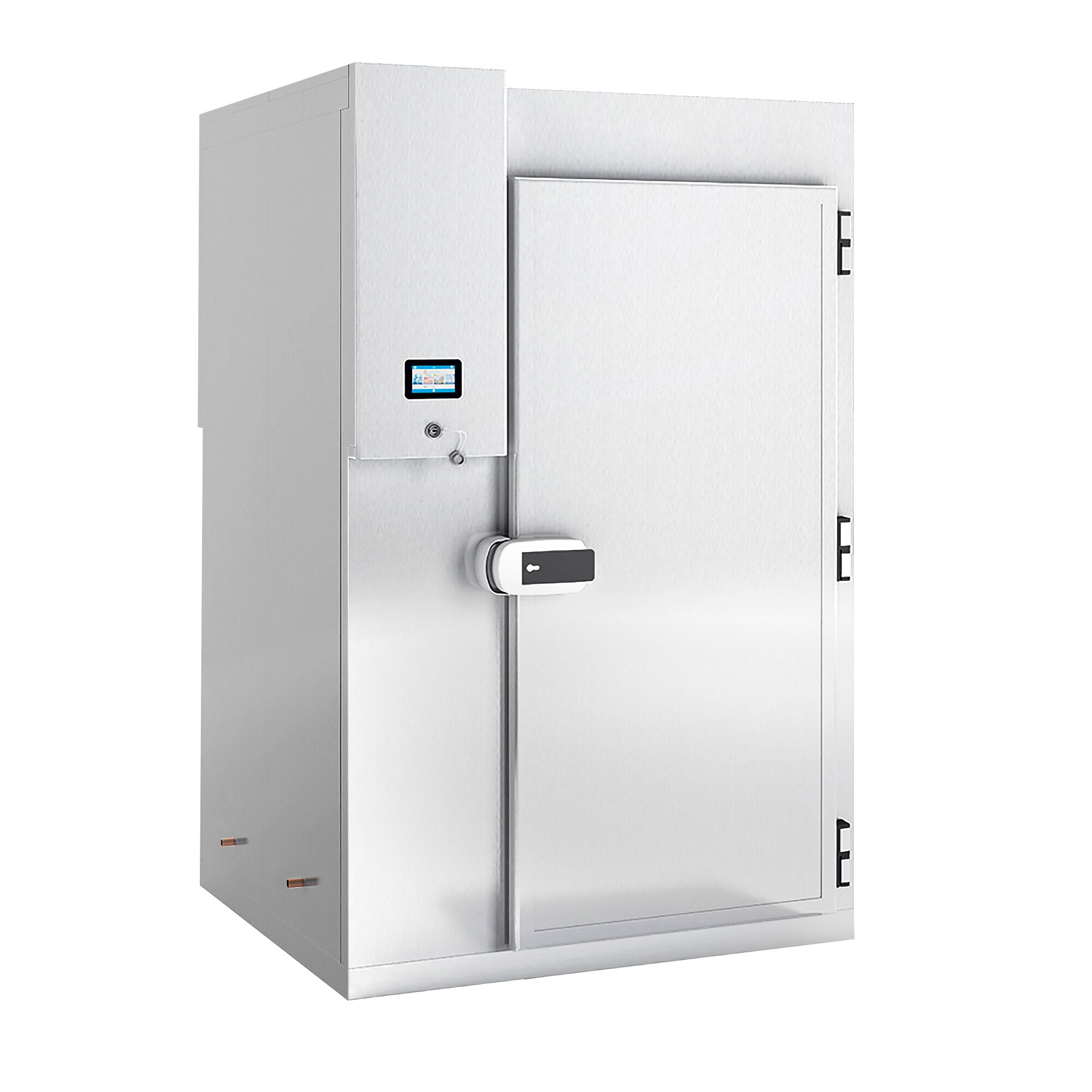

Commercial Blast Chiller - Touchscreen – full‑size cabinet – R452a – 400V

Design

• Set articles consist of: Shock freezer & aggregate

• Touch display

• Suitable for GN 1/1 and 600x400 containers

• Climate class 4: This device is designed for use in ambient temperatures from +10 °C up to +30 °C.

• Door lockable

Quality

• Exterior and interior made of high-quality Stainless Steel AISI 304

• Inner structure: Reflective inner surface, with rounded corners

• Insulation: Polyurethane: High density polyurethane Density 40kg/m3, CFC-free

• Thickness of insulation: 80 mm

• Door frame heating

Cooling

• Compressor

• Manual defrosting

• Refrigerant: R452a

• Temperature range: Max. -35 °C

• From 90 °C to 3 °C in 90 min.

• From 90 °C to -18 °C in 270 min.

• Control program to prevent ice development

• Extendable conical thermal core probe

Connection

• Power: 9,77 kW

• Electrical connection: 400V / 1N/PE / 50 Hz

Dimensions

• Outer dimensions W x D x H: 1.200 mm x 1.095 mm x 2.280 mm

• Inner dimension: W x D x H: 945 mm x 840 mm x 2.107 mm

Notes

• Ramp is not included in the scope of delivery

• Refrigerant lines are not included in the scope of delivery and must be obtained and installed by a specialist on site.

• The trolley for GN containers is not included in the scope of delivery

• The system is filled for a refrigerant line of 10 m. If, due to the planned installation, a line longer than 10 m is to be installed, refrigerant must be added to the system by the specialist on site.

Guidelines

• Material complies with European food standards

• Manufactured in accordance with relevant hygiene and safety standards

• CE marking as proof of conformity with EU regulatory standards
