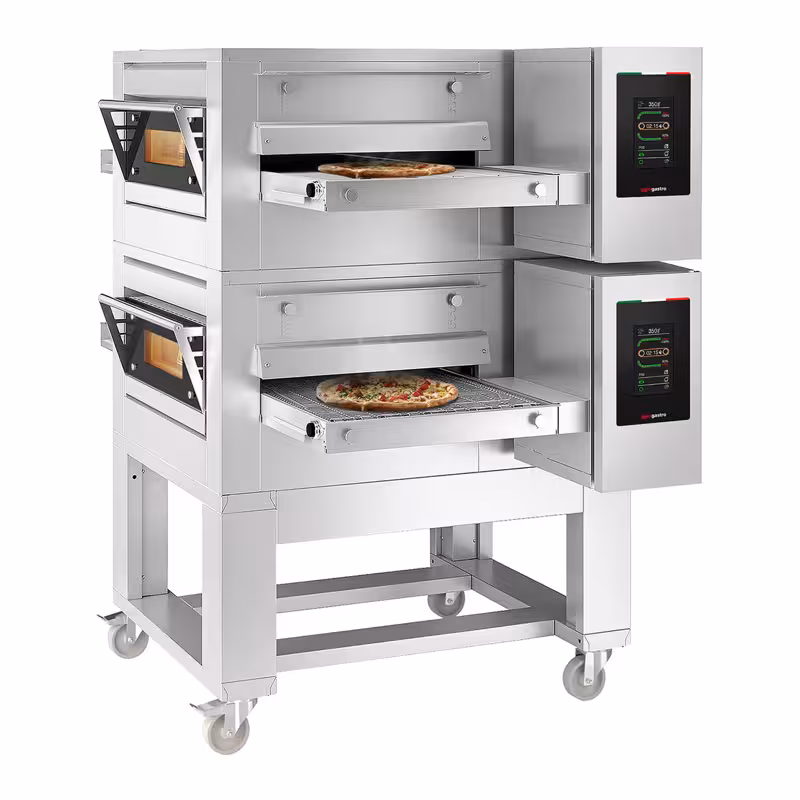

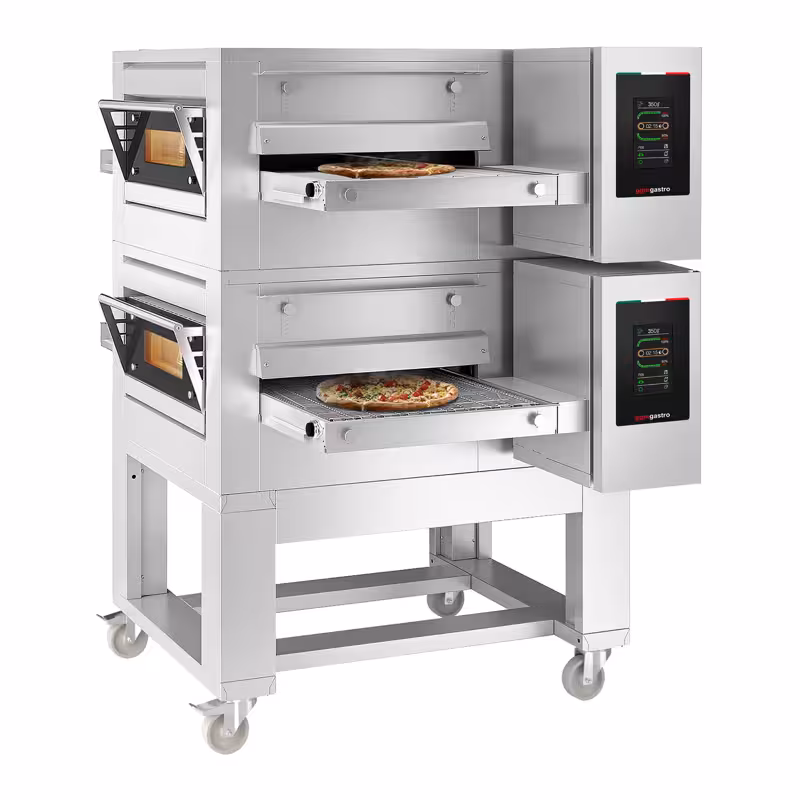

(2 Units) Commercial Electric Conveyor Oven – 1850 x 2450 mm – Touch Control – 1000 mm Belt Width – incl. Stand
Rate now
SKU 2#DPZ20030EN#UDZ2003E3
Temperature up to 350 °C
Print* net price | gross price incl. 19% VAT.: €30,001.08
Accessories (6)
Product Advantages
- No. 1 among conveyor ovens in Europe: This guarantees the highest quality and reliability for your operation.
- Made in Italy: Represents first-class craftsmanship and durable materials.
- 10 cooking programmes with individual adjustment options: Allows precise tuning of cooking time, temperature, and power for perfect results.
- Optimised ventilation system: Ensures fast and even baking results at up to 350°C.
- Economy mode: Reduces energy consumption for smaller production volumes, thereby lowering your operating costs.
Description
General Product Description
Efficient electric conveyor oven for the gastronomy sector. This oven combines high performance with modern operation via a touch panel. The 1000mm width allows for baking large quantities. Ideal for pizzerias and catering businesses that prioritise quality and speed. The convection heating method ensures even baking results at up to 350°C. The integrated base frame provides stability and facilitates installation.Product Details
Power output of 89.8 kW guarantees rapid heating times and consistent temperatures. The oven bakes 200 pizzas per hour, perfect for high demands. The modern touch panel enables intuitive and impact-resistant control. With patented cooling system, the outer casing remains safe and cool. IoT connectivity and remote control via app offer comprehensive control and digital networking. The energy-saving insulation conserves resources and reduces costs.Conclusion and Applications
This conveyor oven is ideal for professional pizza bakeries. It impresses with high capacity and user comfort. Perfect for gastronomy, pizzerias, and catering. The combination of performance, modern technology, and energy efficiency makes it a reliable partner in daily operations. Perfectly suited for the quick and even preparation of large quantities of pizzas. A must-have for every professional who wants to combine quality and efficiency.Installation & Operation
- ⚠️ All equipment with a three-phase connection must be installed by a qualified technician.
- ⚠️ Maintain a minimum distance of 15 cm from rear and side walls as well as neighbouring large appliances.
- Remove all packaging material completely.
- Ensure that all polystyrene is fully removed from the baking chamber and beneath the fireclay bricks.
- Before first use, cure the oven.
- Increase the temperature by 50 °C every 30 minutes until the maximum temperature is reached.
- Heat the oven at maximum temperature for 4 hours.
- Keep the door open during curing to allow vapours to escape.
Cleaning & Maintenance
- Regularly remove baking residues from the oven.
- Thoroughly clean the oven after each use.
Technical data
Overall dimensions
| Width | 1.820 mm |
|---|---|
| Depth | 2.450 mm |
| Height | 1.920 mm |
Conveyor belt dimensions
| Bandwidth | 1.000 mm |
|---|---|
| Belt length | 2.450 mm |
| Oven section | 1.300 mm |
Dimensions per furnace
| outer dimension Width | 1.820 mm |
|---|---|
| external dimension Depth | 2.450 mm |
| external dimension Height | 720 mm |
Base frame dimensions
| Width Underframe | 1.550 mm |
|---|---|
| Depth Underframe | 1.300 mm |
| Height Underframe | 480 mm |
Details
| Operation | Touchscreen |
|---|---|
| Number of baking chambers | 2 Baking chambers |
| Minimum baking time | 2,33 ' |
| Maximum baking time | 30 ' |
| Number of pizzas per hour per baking chamber | 200 |
| Pizza Diameter | 30 cm |
Baking method
| Heating type | Convection |
|---|---|
| Temperature to: | 350 °C |
Connected load
| Operation type | Electric |
|---|---|
| Power | 89,80 kW |
| Power Connection | 400V |
| Phase | 3N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping Method | Haulage |
|---|---|
| Delivery condition | Partly Mounted |
| Gross Weight | 1.347,50 kg |
