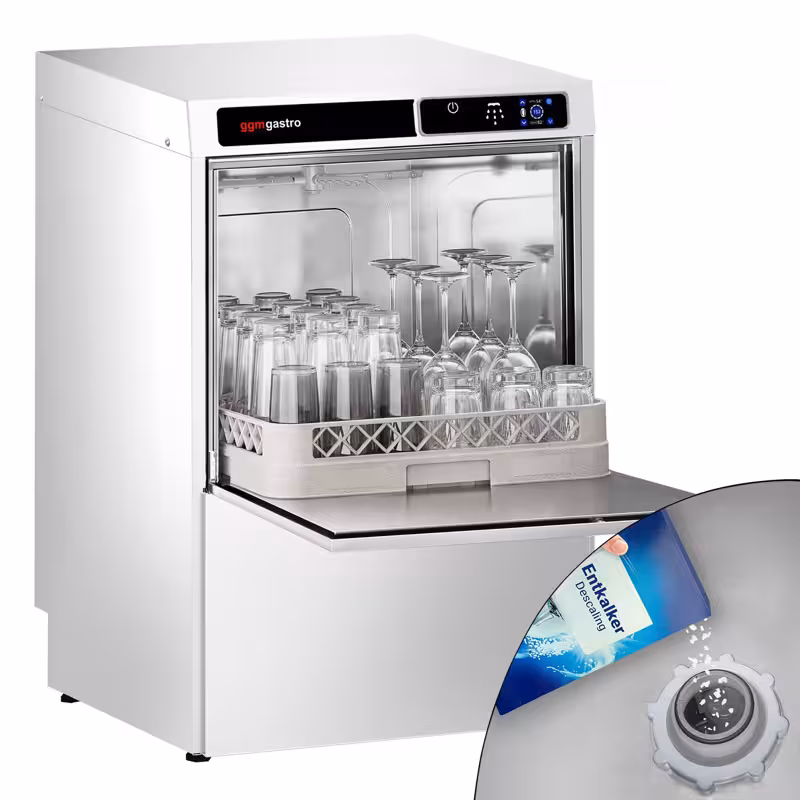

Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Touch Controls - 3.6kW - with Integrated Water Softener - with Drain, Rinse Aid & Detergent Pumps

* The picture may slightly differ from the original.
Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Touch Controls - 3.6kW - with Integrated Water Softener - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Intuitive touchscreen operation: Enables easy control with remaining time display and a variety of settings for maximum comfort.
- Double-walled insulation: Significantly reduces noise levels and minimises heat emission from the machine.
- Integrated descaling system: Eliminates the need for an external descaler and ensures a longer service life.
- Automatic detergent & rinse aid supply: Ensures optimal dosing and saves time during operation.
Description
Product Overview
The double-walled dishwasher with touch control is a powerful undercounter unit that impresses with 3.6 kW energy efficiency and state-of-the-art technology. It is ideal for professional use in the catering industry or larger kitchens where high washing performance and reliability are required. The appliance features an integrated water softener, ensuring gentle and limescale-free cleaning.
Product Details
Equipped with , the machine guarantees optimal distribution of cleaning agents and efficient drainage of wastewater. The robust construction made of high-quality stainless steel and the fully sealed housing ensure IPX5 water protection, which provides long service life and safety in humid environments. The digital control allows precise regulation of washing and rinsing temperatures, optimising energy and water usage. Five different programmes offer flexibility for various levels of soiling and types of crockery. The adjustable feet allow easy height adjustment for perfect integration into any kitchen run.
Conclusion and Areas of Application
This dishwasher is perfectly suited for intensive use in catering establishments, canteens or large kitchens that value efficiency and hygiene. The combination of high washing performance and easy touch operation makes the appliance a reliable helper in everyday use. Thanks to the integrated pumps and water softener, it is particularly low-maintenance and durable. Overall, it offers an excellent solution for professional users seeking a robust, powerful and user-friendly dishwasher.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ A detailed guide is available under the "Download" and "Video" tabs.
- To reduce the heating time, a hot water connection should be used.
- The maximum temperature of 50°C must not be exceeded.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If you have installed a descaler beforehand, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Dimensions
| Width | 610 mm |
|---|---|
| Depth | 645 mm |
| Height | 830 mm |
| Depth with handle | 661 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 335 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 3/4" |
| Water connection | 3/4" inches |
Details
| Wash temperature | 55 °C |
|---|---|
| Rinse temperature | 85 °C |
| Water consumption per run | 2,80 l |
| Maximum volume | 67 dB |
| Max. Crockery height | 335 mm |
Flushing process
| Rinse program 1 | Rinse time 105 at max 34 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 135 at max 26 Baskets/h |
| Rinse program 3 | Rinse time 155 at max 23 Baskets/h |
| Rinse program 4 | Rinse time 175 at max 20 Baskets/h |
| Washing program 5 | Washing time 192 seconds, 18 baskets / hour |
Capacity
| Tank capacity | 27 l |
|---|---|
| Boiler capacity | 6 l |
Connected load
| Power | 3,60 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 69 kg |
| Net weight | 65 kg |
Download / Exploded drawing
