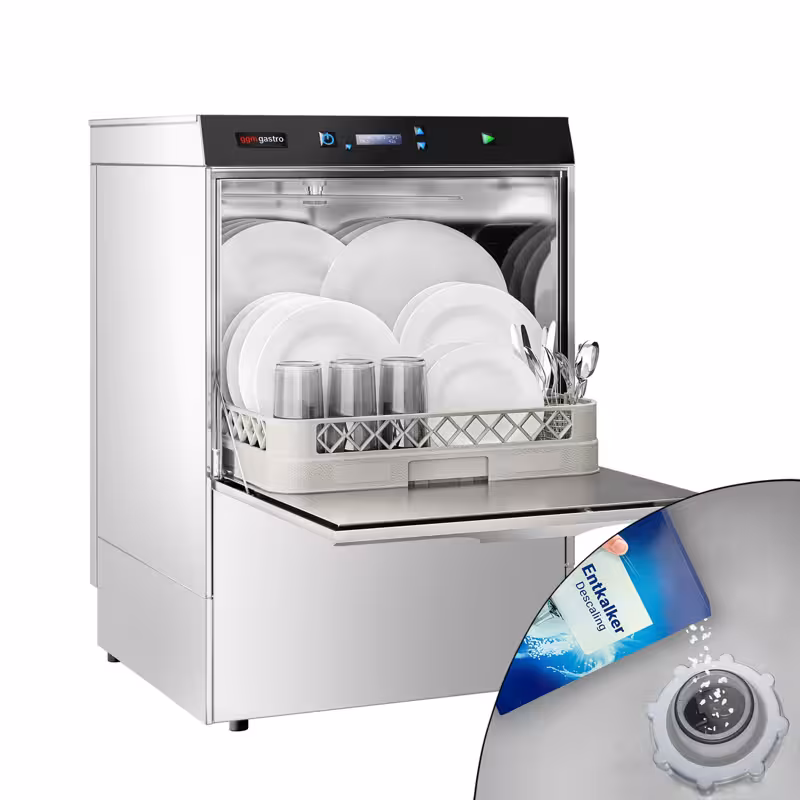

Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Integrated Water Softener - with Drain, Rinse Aid & Detergent Pumps
* The picture may slightly differ from the original.
Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Integrated Water Softener - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Made in Italy: Represents high-quality workmanship and quality from Italy.
- Integrated descaling system: No external descaler required, reducing maintenance effort.
- Double-walled insulated walls: Significantly lower noise levels and effectively reduce heat emission.
Description
Product Overview
The double-walled dishwasher is a robust undercounter unit specifically designed for professional use. With a power consumption of 3.9 kW, it offers powerful and efficient cleaning. The electronic control panel with LCD display enables simple and intuitive operation of the machine. This model is ideal for gastronomy, large kitchens, and other areas with high dishwashing volumes.
Product Details
The machine features two wash arms with rotating, non-clogging wash and rinse arms that ensure excellent cleaning results. A dual filtration system in the wash chamber guarantees hygienic and thorough cleaning. The electric dosing pump for rinse aid and detergent provides precise and automatic dispensing of cleaning agents. The door opening is equipped with a safety system that makes operation safer. In total, four programmes are available, flexibly adapted to different levels of soiling.
Conclusion and Areas of Application
This dishwasher impresses with its high cleaning performance and easy operation. It is ideally suited for use in restaurants, canteens, and catering businesses where reliable and rapid dishwashing is required. Thanks to the high-quality stainless steel housing, the unit is particularly durable and resistant to the daily demands of the hospitality industry.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating manual.
- ⚠️ This appliance requires a cold water connection.
- ⚠️ A detailed manual is available under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly.
- If a descaler is installed upstream, the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The maximum flow rate depends on the water hardness.
- Use only chlorine-free cleaners to avoid damage.
Technical data
Dimensions
| Width | 582 mm |
|---|---|
| Depth | 610 mm |
| Height | 822 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 340 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 320 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|
Connected load
| Power | 3,90 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Forwarding agent |
|---|---|
| Delivered as | Mounted |
| Weight | 64 kg |
