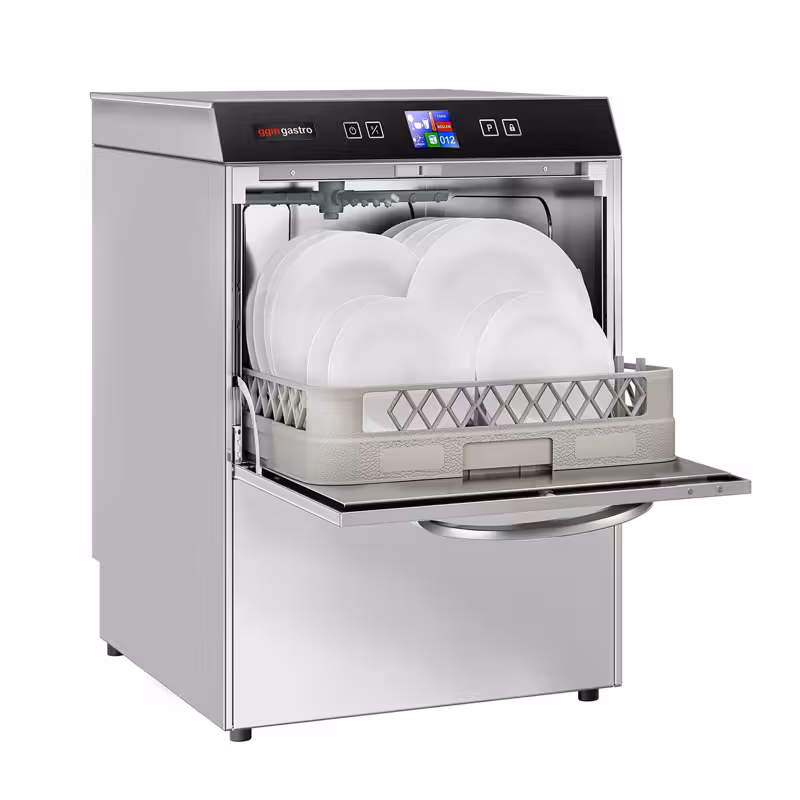

Double-skinned Commercial Dishwasher - Digital Controls - 3.55kW - with Drain, Rinse Aid & Detergent Pumps

* The picture may slightly differ from the original.
Double-skinned Commercial Dishwasher - Digital Controls - 3.55kW - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Sodium hydroxide pump: Pumps wastewater over a height difference into the sewage connection, allowing flexible installation options.
- Double-walled insulation: Significantly lowers noise levels and reduces heat radiation, creating a more comfortable working environment.
- Soft-touch control with display: Facilitates operation through intuitive control and clear display of settings.
Description
Product Overview
The double-walled dishwasher is an efficient solution for the professional cleaning of crockery in gastronomy and catering. With a power output of 3.55 kW, it offers powerful wash cycles while maintaining energy-efficient operation. The machine is compact and space-saving in design, ideal for kitchens with limited space.
Details and Features
Equipped with a detergent, rinse aid, and alkali pump, the dishwasher ensures thorough and hygienic cleaning. The funnel is made of unbreakable and non-deformable material, which enhances durability. A magnetic safety sensor on the opening flap ensures safe operation. The separate control of boiler and tank temperature allows precise management of the washing processes. With a total of four programmes, the machine can be flexibly adapted to different levels of soiling. The waterproof front panel and high-quality stainless steel housing guarantee robustness and easy cleaning.
Conclusion and Areas of Application
This dishwasher is perfectly suited for use in gastronomic establishments, canteens, and catering companies that place value on reliable and hygienic cleaning. Its compact design makes it ideal for small to medium-sized kitchens. Thanks to its versatile functions and robust construction, it impresses with efficiency and durability. With this machine, professional crockery care is implemented simply and time-efficiently.
Installation & Operation
- ⚠️ For safety reasons, the appliance should be connected to the power supply as a separate group.
- ⚠️ Information on the mains voltage can be found in the operating instructions.
- ⚠️ A hot water connection is recommended.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Please note that this device is only suitable for chlorine-free cleaners.
Technical data
Dimensions
| Width | 610 mm |
|---|---|
| Depth | 670 mm |
| Height | 820 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Insertion height | 320 mm |
|---|
Details
| Maximum height of plates | 320mm |
|---|---|
| Washing temperature | 55 °C - 60 °C |
Flushing process
| Rinsing time | 60/90/120/180 seconds |
|---|---|
| Plate / hour | 500 |
| Water consumption per run | 2,50 l |
Connected load
| Power | 3,55 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 79 kg |
| Net weight | 60 kg |
Download / Exploded drawing
Safety and disposal instructions
