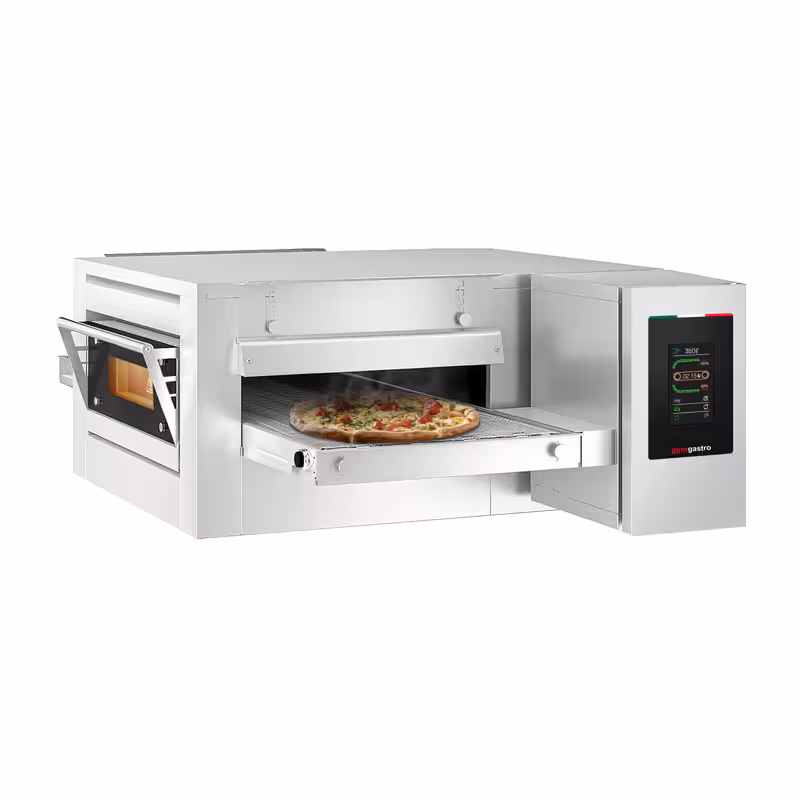

Gas Conveyor Pizza Oven - 1980x2450mm (78"x96") - for Ø 30cm (12") pizza - 230V Single Phase - Touchscreen Controls - Belt width: 1000mm (39") - up to 350°C
Temperature up to 350 °C
SKU DPZ20030GN
* The picture may slightly differ from the original.
Print* net price | gross price incl. 19% VAT.: €16,831.35
Gas Conveyor Pizza Oven - 1980x2450mm (78"x96") - for Ø 30cm (12") pizza - 230V Single Phase - Touchscreen Controls - Belt width: 1000mm (39") - up to 350°C
Rate now
SKU DPZ20030GN
Temperature up to 350 °C
Print* net price | gross price incl. 19% VAT.: €16,831.35
Accessories (6)
Spare Parts (1)
Product Advantages
- No. 1 among conveyor ovens in Europe: Guarantees the highest quality and reliability for your production.
- Made in Italy: Stands for excellent craftsmanship and durable materials.
- 10 cooking programmes with individual settings: Enables flexible adjustment of cooking time, temperature, and power for perfect results.
- Optimised ventilation system: Ensures fast and even baking results at 350°C.
- Economy mode: Reduces energy consumption for smaller batches, thereby lowering your operating costs.
Description
General Product Description
The gas conveyor oven with a belt width of 1000 mm is ideal for professional pizza production in the hospitality industry. 46 kW power ensures rapid and even heating. Operation is via a modern touch panel, allowing intuitive control. Thanks to the convection heating method, optimal heat distribution is guaranteed. This appliance is perfect for establishments aiming to produce high quantities efficiently.Product Details
The oven reaches temperatures up to 350 °C, ideal for crispy pizzas with a diameter of 30 cm. With a capacity of 200 pizzas per hour, it is designed for professional use. Safety features such as a thermocouple monitor the flame and automatically shut off the gas supply if necessary. The high-quality insulation saves energy, while the patented system keeps the outer casing cool. The conveyor belt direction can be easily reversed using the reverse button.Conclusion and Areas of Application
This gas conveyor oven is the perfect solution for pizzerias and hospitality businesses with high throughput. It impresses with efficiency, safety, and ease of use. IoT connectivity and remote control via app enable smart monitoring and management. Ideal for professional use where quality and speed are essential. An indispensable appliance for every professional in the pizza oven sector.Installation & Operation
- ⚠️ All gas appliances must be connected by a qualified professional.
- ⚠️ An extraction system is recommended for optimal performance and use.
- ⚠️ Maintain at least 15 cm distance from the rear and side walls as well as from neighbouring large appliances.
- Remove packaging material, especially ensure all polystyrene in the baking chamber and under the firebricks is completely eliminated.
- Burn in the oven before first use.
- Increase the temperature by 50°C every 30 minutes until the maximum temperature is reached.
- Heat the oven at maximum temperature for 4 hours.
- Keep the door open during the burn-in process to allow vapours to escape.
Cleaning & Maintenance
- Regularly remove baking residues from the oven.
- Thoroughly clean the oven after each use.
Technical data
Overall dimensions
| Width | 1.980 mm |
|---|---|
| Depth | 2.450 mm |
| Height | 720 mm |
Conveyor belt dimensions
| Bandwidth | 1.000 mm |
|---|---|
| Belt length | 2.450 mm |
| Oven section | 1.300 mm |
Dimensions per furnace
| outer dimension Width | 1.980 mm |
|---|
Base frame dimensions
| Width Underframe | 1.720 mm |
|---|---|
| Depth Underframe | 1.300 mm |
| Height Underframe | 470 mm |
Details
| Operation | Touchscreen |
|---|---|
| Number of baking chambers | 1 Baking Chamber |
| Minimum baking time | 2,33 ' |
| Maximum baking time | 30 ' |
| Number of pizzas per hour per baking chamber | 200 |
| Pizza Diameter | 30 cm |
Baking method
| Heating type | Convection |
|---|---|
| Temperature to: | 350 °C |
Connected load
| Operation type | Gas |
|---|---|
| Power | 46 kW |
| Diameter gas connection | 1/2" |
| Power Connection | 230V |
| Phase | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping Method | Haulage |
|---|---|
| Delivery condition | Partly Mounted |
| Gross Weight | 670 kg |
| Net Weight | 490 kg |
