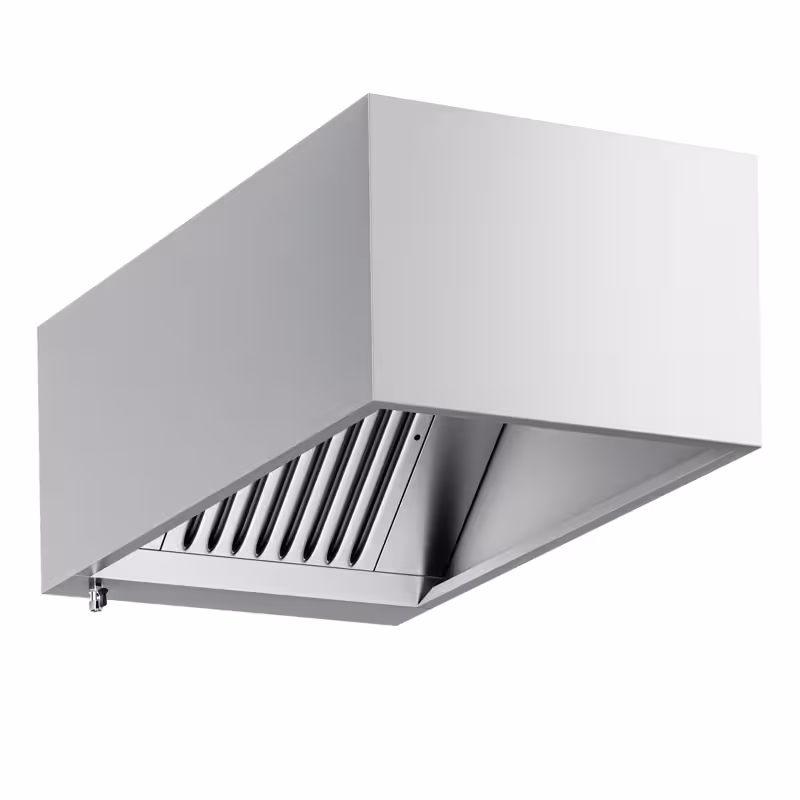

Commercial Wall-Mounted Extractor Hood – 800mm – with Baffle Filters & Lighting
Installation depth: 1100 mm
SKU KLP811
* The picture may slightly differ from the original.
Guaranteed: Order by 12 noon for immediate dispatch!
Print* net price | gross price incl. 19% VAT.: €596.18
Commercial Wall-Mounted Extractor Hood – 800mm – with Baffle Filters & Lighting
SKU KLP811
Installation depth: 1100 mm
Print* net price | gross price incl. 19% VAT.: €596.18
Product Advantages
- Made in Europe: Ensures high quality standards and sustainable production.
- High-quality workmanship: Guarantees durability and reliability in daily use.
- Single-block structure made of AISI 304 stainless steel: Provides a robust and corrosion-resistant construction.
- Grease-free labyrinth filters made of 18/10 stainless steel: Allows easy cleaning and efficient grease separation.
Description
Product Overview
The box canopy with a width of 800 mm is a high-quality extraction solution specifically designed for use in kitchens and commercial cooking areas. It impresses with a compact and robust construction, allowing easy integration into various spatial concepts. The unit is ideal for effectively extracting cooking vapours and sustainably improving air quality.Product Details
The canopy features a high-quality type B filter that ensures efficient grease separation. With an airflow volume of 1200 m³/h, it guarantees powerful air extraction. The electronically welded, drip-free trough with drain taps allows for easy and clean grease removal. Additionally, the canopy is equipped with integrated lighting that optimally illuminates the work area. The elegant Scotch-Brite satin finish and the single-block structure made of AISI 430 stainless steel stand for durability and easy cleaning. The grease-free labyrinth filter made of 18/10 stainless steel enhances hygiene and ease of maintenance.Conclusion and Areas of Application
This box canopy is the perfect solution for catering businesses and professional kitchens that value efficient grease separation and easy maintenance. It is excellently suited for use above cooking stations, grill stations, or fryers, where reliable extraction of cooking vapours and fats is necessary. Thanks to the installation in minutes, the setup is straightforward and time-saving. In summary, this product offers a powerful, hygienic, and durable extraction solution for demanding kitchen environments.Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced in a professionally planned manner.
- ⚠️ An incorrect reduction can impair the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel can be cleaned in the commercial dishwasher.
- Clean the filters daily to prevent burning in and resin build-up.
- Carefully lift the filters from the holder as there may be drops of fat.
- In case of heavy soiling, rinse coarse fat off with hot water.
- Wash the filters in the dishwasher at a minimum of 60–70 °C using a degreasing detergent.
- The filters must be completely dry before being reinserted to prevent mould formation.
Technical data
Dimensions
| Width | 800 mm |
|---|---|
| Depth | 1.100 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Details
| Number of filters | 1 |
|---|---|
| Extraction rate | 1.200 m³/h |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 42 kg |
| Net weight | 41,50 kg |
Download / Exploded drawing
Download / Exploded drawing
Safety and disposal instructions
Safety and disposal instructions
Download / Exploded drawing
Safety and disposal instructions
