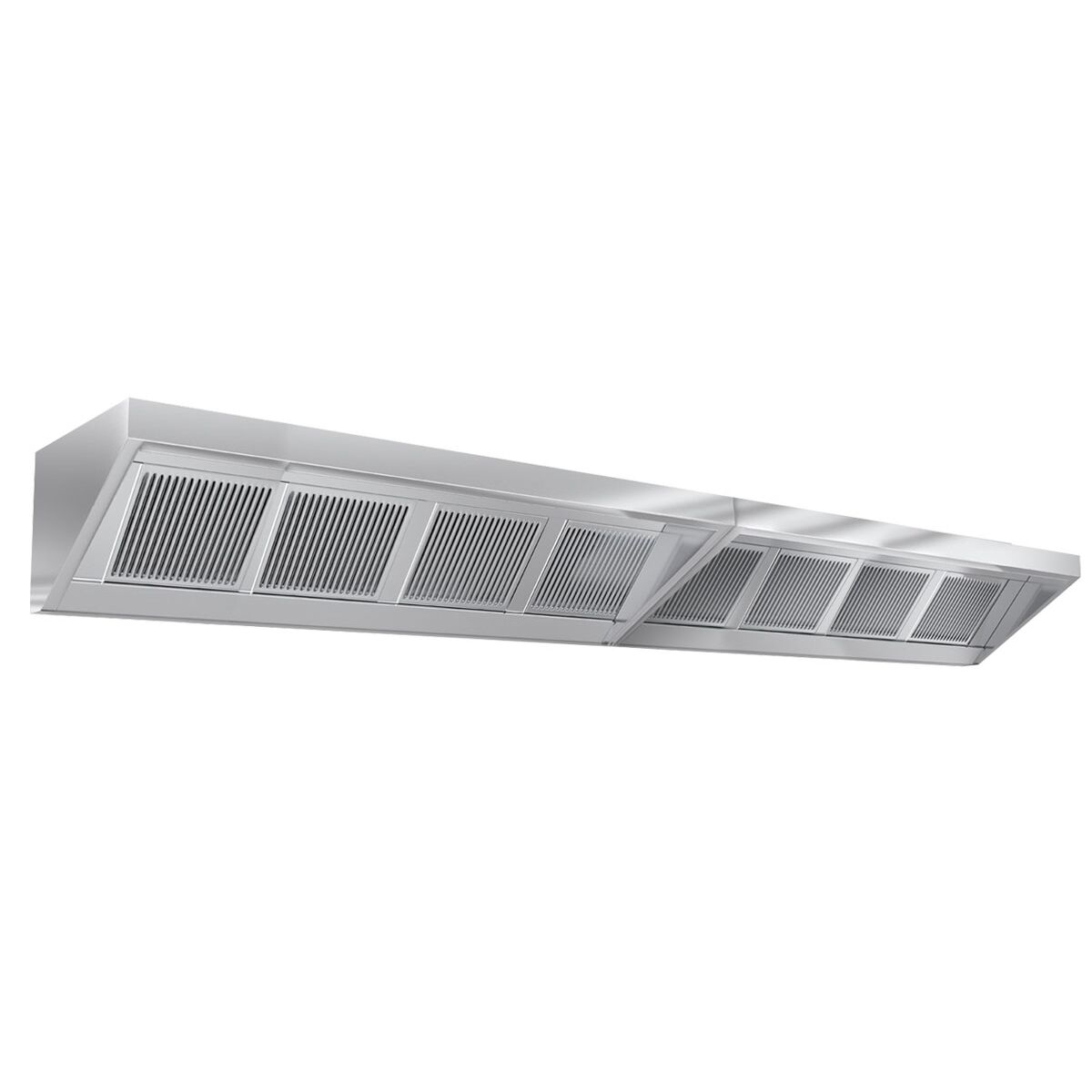

Commercial Wall-Mounted Extraction Canopy - 3600mm - with Baffle Filters & LED Lighting

Installation depth: 700 mm
SKU WLP367#SET
  • Commercial Wall-Mounted Extraction Canopy - 3600mm - with Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - 3600mm - with Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - 3600mm - with Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - 3600mm - with Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - 3600mm - with Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - 3600mm - with Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - 3600mm - with Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - 3600mm - with Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - 3600mm - with Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - 3600mm - with Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - 3600mm - with Baffle Filters & LED Lighting

* The picture may slightly differ from the original.

Guaranteed: Order by 12 noon for immediate dispatch!
€1,427.99 *
RRP €2,412.99
In stock: 1 - 3 Days
Free delivery**
Quantity:
Print* net price | gross price incl. 19% VAT.: €1,699.31
Accessories (5)

Description

Product Overview

This wall-mounted hood with a width of 3600 mm has been specially designed for use in the gastronomy sector. It impresses with a compact and robust construction that guarantees reliable and long-lasting use. The hood is ideally suited to effectively extract cooking vapours, thereby ensuring a pleasant indoor climate in kitchens.

Product Details

The airflow volume is 4200 m³/h, enabling efficient air extraction even under heavy load. Equipped with six type B filters, the hood ensures thorough cleaning of the air from grease particles. The high-quality, spot-welded two-block structure made of stainless steel AISI 430 guarantees a particularly stable and hygienic construction. Additionally, the hood features a grease drain valve and integrated lighting, which optimally illuminates the work area. Installation takes place in minutes, making the fitting straightforward and time-saving. A motor is not included, facilitating use with existing ventilation systems.

Conclusion and Areas of Application

This wall-mounted hood is the perfect solution for professional kitchens that value efficient air purification and durable materials. It is particularly suitable for catering businesses where high air extraction performance and easy maintenance are required. Thanks to the robust construction and well-thought-out features, it is ideal for daily use in restaurants, canteens, or large-scale kitchens. With this hood, you create a clean and pleasant working environment.

Installation & Operation

  • ⚠️ Pipe diameters should always remain consistent or only be reduced following professional planning.
  • ⚠️ An incorrect reduction can affect the entire system.

Cleaning & Maintenance

  • Modern flame protection filters made of stainless steel can be cleaned in the commercial dishwasher.
  • Daily cleaning prevents the filters from burning on and becoming resinous.
  • Carefully lift the filters out of the holder, paying attention to grease droplets.
  • In case of heavy soiling, rinse off coarse grease with hot water.
  • Wash in the dishwasher at a minimum of 60–70 °C using a grease-dissolving detergent.
  • The filters must be completely dry before being reinserted.
  • This prevents the formation of mould and bacteria.

Technical data

Dimensions

Width 3.600 mm
Depth 700 mm
Height 450 mm

Filter dimensions

Width 400 mm
Depth 400 mm

Details

Appliance type extractor hood
Conveyor volume 4.200 m³/h/h
Number of filters 6

Connected load

Voltage 230V
Phase(s) 1N/PE
Frequency 50 Hz

Delivery

Shipping method Haulage
Delivered as Mounted
Gross weight 50 kg
Net weight 50 kg

Download / Exploded drawing
