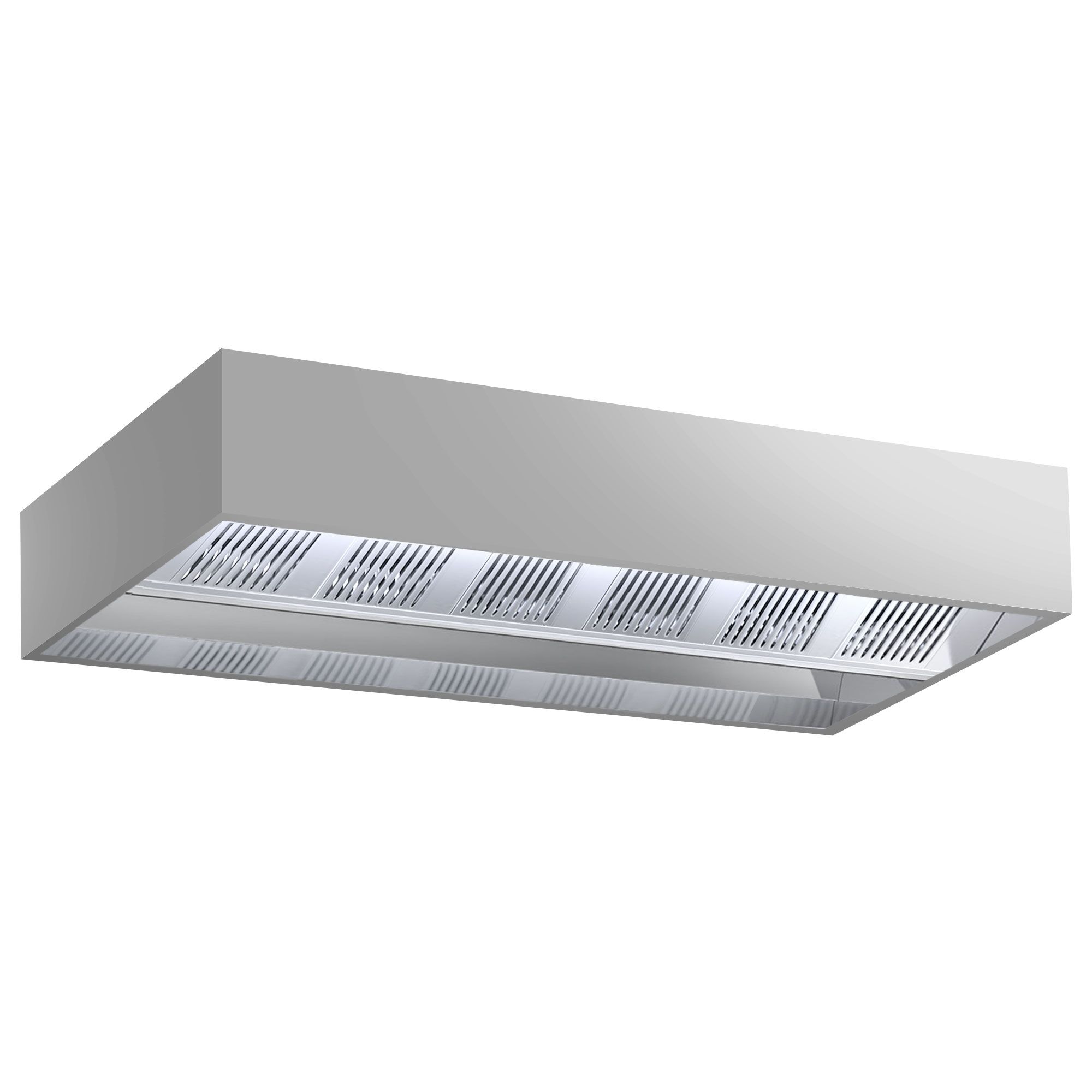

Commercial Extraction Canopy - Ceiling-Suspended - 3500mm - without Motor (for External Fan) - with Baffle Filters - Induction Series
Installation depth: 1800 mm
SKU IDHK3518
* The picture may slightly differ from the original.
Print* net price | gross price incl. 19% VAT.: €5,631.07
Commercial Extraction Canopy - Ceiling-Suspended - 3500mm - without Motor (for External Fan) - with Baffle Filters - Induction Series
Rate now
SKU IDHK3518
Installation depth: 1800 mm
Print* net price | gross price incl. 19% VAT.: €5,631.07
Accessories (3)
Spare Parts (1)
Product Advantages
- Two-stage system: It extracts warm kitchen exhaust air while simultaneously supplying fresh outside air directly at the hood body. This ensures effective air circulation.
- Higher efficiency: The capture rate is significantly higher, resulting in less vapour escaping at the sides of the hood. This improves the air quality in the kitchen.
- Better cleanliness: Vapours are captured more precisely, leading to less grease depositing on surfaces outside the extraction area. This makes cleaning easier.
- Less draught: The air is discharged directly at the hood, causing fewer unpleasant air currents in the rest of the room. This increases comfort in the kitchen area.
Description
Product Overview
This induction ceiling hood impresses with its high-quality workmanship and is ideal for professional use in large kitchens and catering establishments. It is specifically designed to effectively extract cooking vapours, ensuring a clean and pleasant working environment. The hood is 3500 mm long and comes without a motor, offering flexible installation options.Product Details
The unit features 12 filters of type B, which guarantee efficient air purification. With an air volume capacity of 5400 m³/h, cooking vapours and odours are reliably extracted. The hood is made of AISI 304 stainless steel and spot-welded, ensuring durability and stability. A drip-free, hermetic gutter with drain taps safely collects fats and facilitates cleaning. The LED internal lighting provides optimal visibility beneath the hood. The satin-finished Scotch-Brite surface gives the hood a modern and low-maintenance design.Conclusion and Areas of Application
This induction ceiling hood is perfectly suited for kitchens with high standards of hygiene and air quality. The combination of robust materials, efficient filtration technology, and high air volume capacity makes it ideal for continuous operation in the catering industry. Its easy cleaning and durable construction make it a reliable solution for professional use. It is ideal for large kitchens, canteens, and catering businesses that require a powerful and low-maintenance extraction system.Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be professionally reduced as planned.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern stainless steel flame protection filters can be cleaned in the commercial dishwasher.
- Daily cleaning prevents the filters from burning on and becoming resinous.
- Carefully lift the filters out of the holder, as there may be drops of grease.
- In case of heavy soiling, rinse off coarse grease with hot water.
- Wash in the dishwasher at a minimum of 60–70 °C with a grease-dissolving detergent.
- The filters must be completely dry before being reinstalled.
- Dryness prevents the formation of mould or bacteria.
Technical data
Dimensions
| Width | 3.500 mm |
|---|---|
| Depth | 1.800 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Exhaust air capacity | 5.400 m³/h |
|---|---|
| Supply air flow rate | 3.800 l |
| Number of filters | 12 |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 230,40 kg |
| Net weight | 192 kg |
Safety and disposal instructions
Safety and disposal instructions
Safety and disposal instructions
