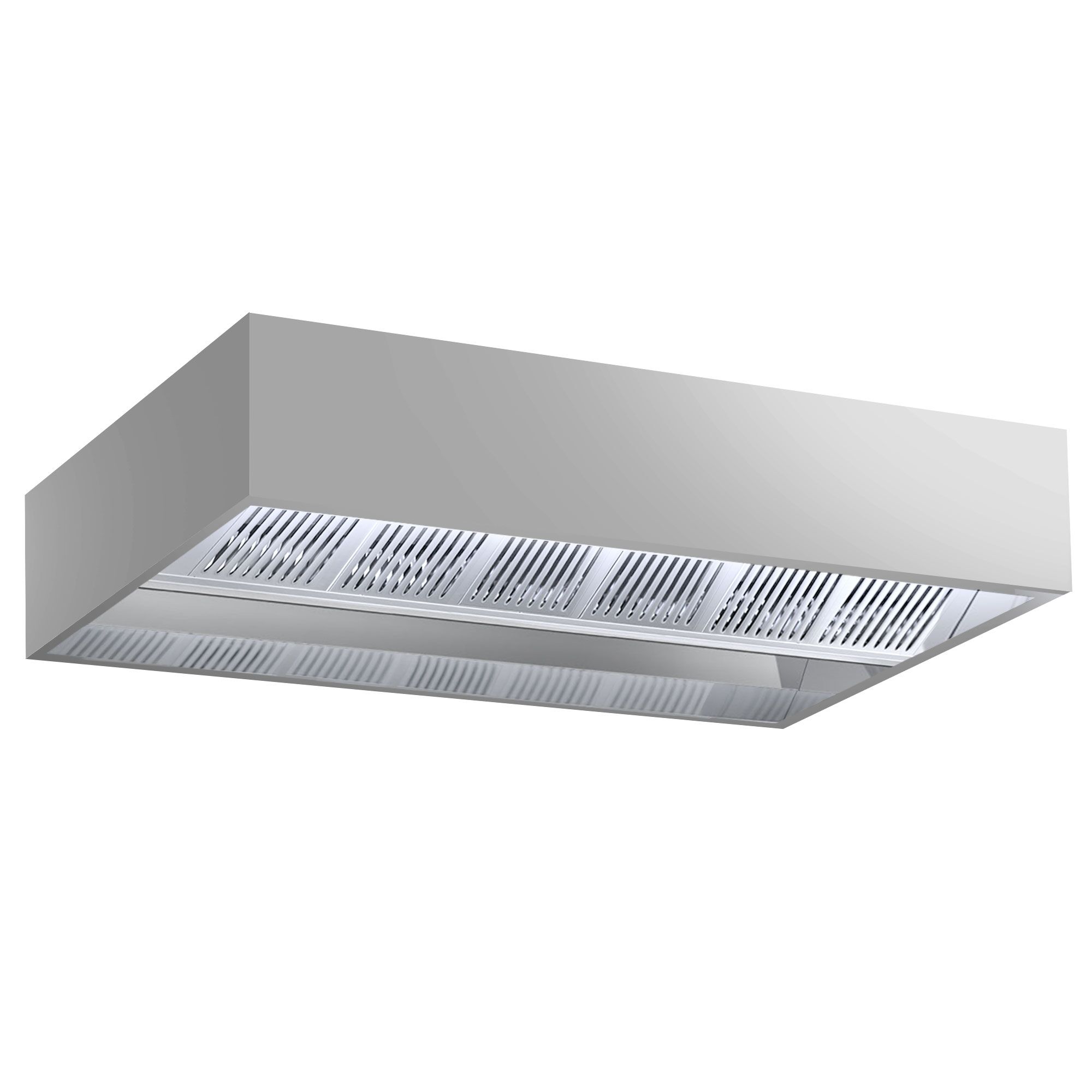

Commercial Extraction Canopy - Ceiling-Suspended - 3000mm - without Motor (for External Fan) - with Grease Filters - Induction Series
Installation depth: 1800 mm
SKU IDHK3018
* The picture may slightly differ from the original.
Print* net price | gross price incl. 19% VAT.: €5,017.03
Commercial Extraction Canopy - Ceiling-Suspended - 3000mm - without Motor (for External Fan) - with Grease Filters - Induction Series
Rate now
SKU IDHK3018
Installation depth: 1800 mm
Print* net price | gross price incl. 19% VAT.: €5,017.03
Accessories (3)
Spare Parts (1)
Product Advantages
- Two-stage system: It extracts warm kitchen exhaust air while simultaneously directing fresh outside air directly at the hood body, ensuring optimal air circulation.
- Higher efficiency: The capture rate is significantly higher, resulting in less vapour escaping into the kitchen at the sides of the hood.
- Better cleanliness: The targeted capture of fumes reduces the deposition of grease on surfaces outside the extraction area.
- Less draught: The air is expelled directly at the hood, reducing unpleasant air currents in the rest of the room.
Description
Product Overview
This induction ceiling hood with a length of 3000 mm is ideal for professional use in gastronomy or large-scale kitchens. It impresses with its high-quality workmanship, which ensures long service life and reliable operation. Designed without an integrated motor, it allows flexible adaptation to existing ventilation systems. The hood is equipped with Type B filters, which effectively filter grease particles from the exhaust air, ensuring clean air.Product Details
The hood features 12 filters that provide a large filter surface, optimally cleaning the air. With an air volume of 5400 m³/h, it guarantees powerful extraction. The LED interior lighting provides bright and energy-saving illumination of the work area beneath the hood. The single-block structure made of AISI 304 stainless steel is not only robust but also easy to clean. Additionally, the hood is spot-welded and features a drip-free, hermetic gutter with drain taps, which facilitates the collection and draining of grease.Conclusion and Areas of Application
This induction ceiling hood is perfectly suited for use in large kitchens, canteens, or other commercial cooking areas that require efficient and hygienic air extraction. Its robust construction and effective grease separation make it a reliable solution for demanding requirements. Thanks to the modular design without a motor, it can be flexibly integrated into existing systems and ensures a clean and safe working environment.Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced following professional planning.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern stainless steel flame protection filters can be cleaned in the commercial dishwasher.
- Clean the filters daily to prevent burning on and resin build-up.
- Carefully lift the filters out of the holder, as there may be drops of grease.
- In case of heavy soiling, rinse off coarse grease with hot water.
- Wash the filters in the dishwasher at a minimum of 60–70 °C using a grease-dissolving detergent.
- Ensure the filters are completely dry before reinserting them to prevent mould formation.
Technical data
Dimensions
| Width | 3.000 mm |
|---|---|
| Depth | 1.800 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Exhaust air capacity | 5.400 m³/h |
|---|---|
| Supply air flow rate | 3.800 m³/h |
| Number of filters | 12 |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 201,60 kg |
| Net weight | 168 kg |
