Commercial Extraction Canopy - Ceiling-Suspended - 2400mm - without Motor (for External Fan) - with Grease Filters - Induction Series
Installation depth: 2000 mm
SKU IDHK2420

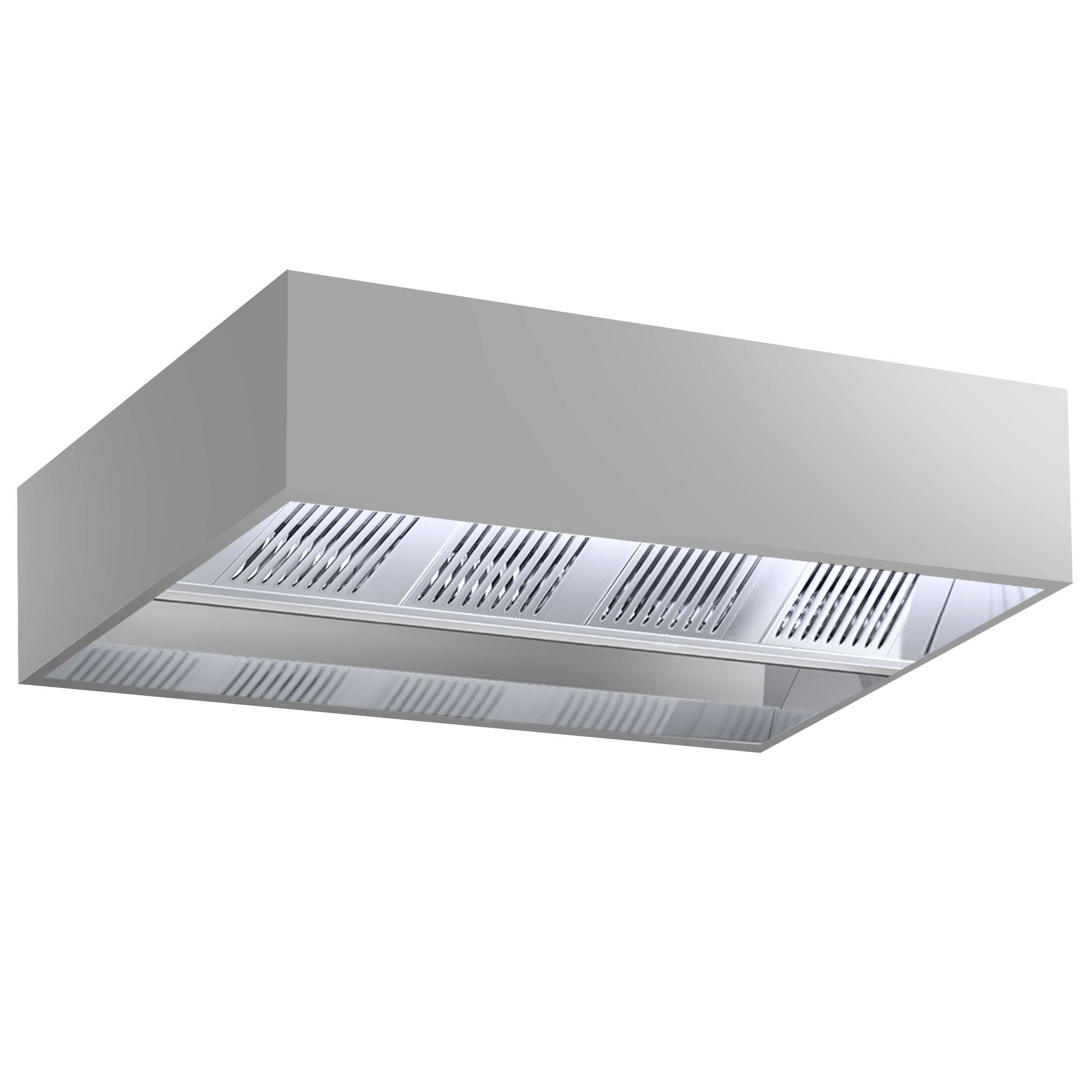

* The picture may slightly differ from the original.
Print* net price | gross price incl. 19% VAT.: €4,821.87
Commercial Extraction Canopy - Ceiling-Suspended - 2400mm - without Motor (for External Fan) - with Grease Filters - Induction Series
Rate now
SKU IDHK2420
Installation depth: 2000 mm
Print* net price | gross price incl. 19% VAT.: €4,821.87
Accessories (3)
Spare Parts (1)
Product Advantages
- Two-stage system: It extracts warm kitchen exhaust air while simultaneously directing outside air back directly at the hood body, improving air quality.
- Higher efficiency: The capture rate is significantly higher, resulting in less vapour escaping from the sides of the hood into the kitchen.
- Better cleanliness: Fumes are captured more precisely, so less grease deposits on surfaces outside the extraction area.
- Less draught: The air is expelled directly at the hood, reducing unpleasant air currents in the rest of the room.
Description
Product Overview
The induction ceiling hood with a width of 2400 mm is a professional solution for efficient extraction in commercial kitchens. It is designed without a motor, allowing flexible integration into existing ventilation systems. Thanks to the eight type B filters, the air is reliably freed from grease particles, ensuring a clean and safe working environment.Product Details
The hood impresses with its high-quality workmanship, featuring spot-welded seams and a drip-free, hermetic gutter for collecting grease, which can be easily drained via drain taps. The surface is Scotch-Brite satin-finished and made of robust AISI 304 stainless steel, guaranteeing long service life and easy cleaning. The integrated LED internal lighting ensures optimal visibility. With an air volume of 3600 m³/h, the hood ensures effective air circulation and extraction.Conclusion and Areas of Application
This induction ceiling hood is ideal for use in large kitchens, canteens, and catering establishments that rely on a powerful and hygienic extraction solution. Its robust construction and efficient filter technology make it the perfect choice for demanding environments. Thanks to the modular design without a motor, the hood can be flexibly adapted to various ventilation systems, thus providing a sustainable improvement in air quality.Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced in a professionally planned manner.
- ⚠️ An incorrect reduction can impair the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are dishwasher safe.
- Clean the filters daily to prevent burning in and resin build-up.
- Carefully lift the filters out of the holder, as there may be drops of fat.
- For heavy soiling, rinse coarse fat off with hot water.
- Wash in the dishwasher at a minimum of 60–70 °C with a grease-dissolving detergent.
- Allow the filters to dry completely before reinserting them.
- Dryness prevents mould and bacterial growth.
Technical data
Dimensions
| Width | 2.400 mm |
|---|---|
| Depth | 2.000 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Exhaust air capacity | 3.600 m³/h |
|---|---|
| Supply air flow rate | 2.550 m³/h |
| Number of filters | 8 |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 174,30 kg |
| Net weight | 145,25 kg |
