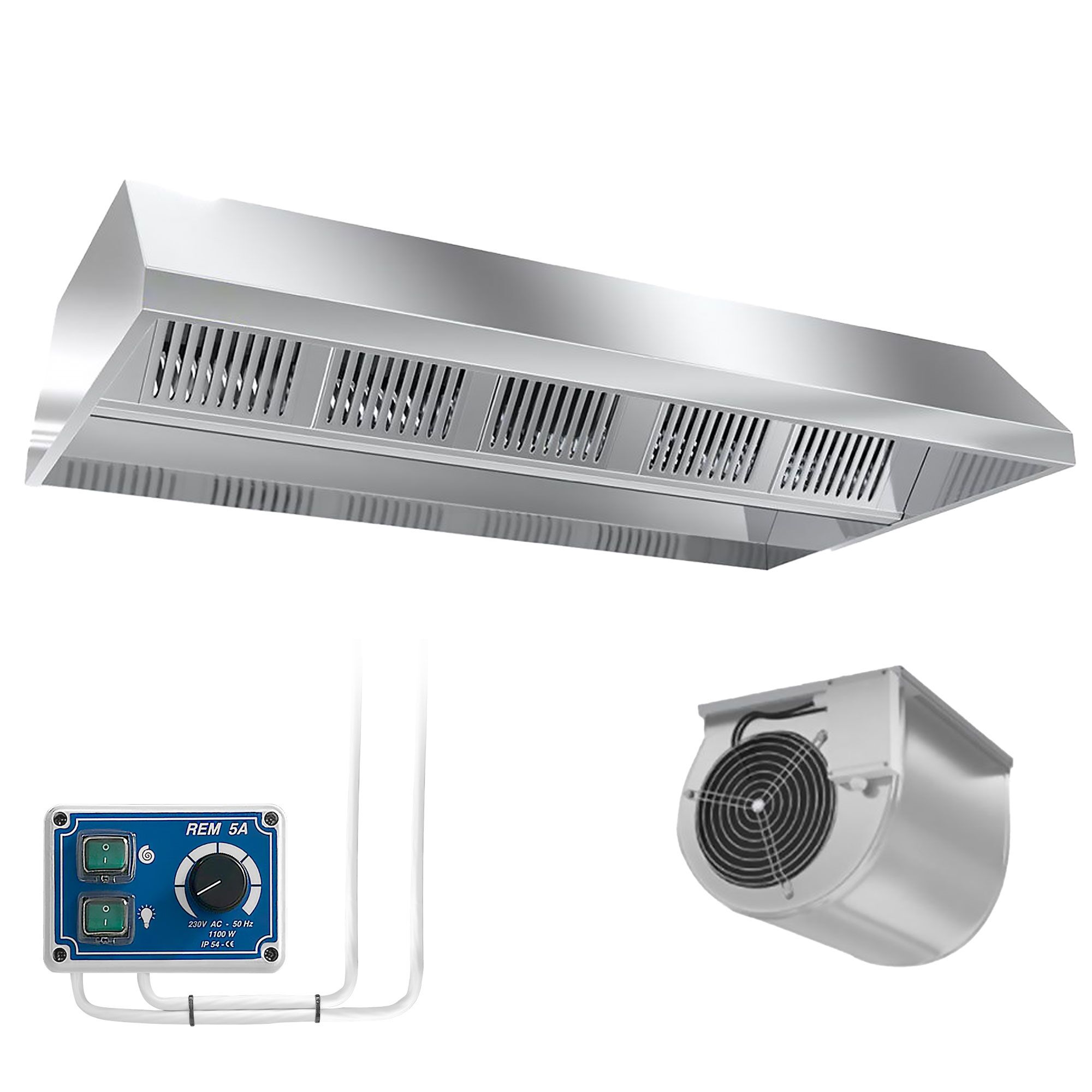

Commercial Ceiling-Mounted Extraction Canopy with Integral Fan - 1800mm - with External Speed Controller, Baffle Filters & LED Lights
* The picture may slightly differ from the original.
Commercial Ceiling-Mounted Extraction Canopy with Integral Fan - 1800mm - with External Speed Controller, Baffle Filters & LED Lights
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and durable quality. The product benefits from Italian artisanal skill.
- Single-block structure made of AISI 304 stainless steel: Provides robust stability and easy cleaning. This ensures a long service life and hygienic operation.
- Grease-free labyrinth filters made of 18/10 stainless steel: Ensure efficient grease separation and easy maintenance. This improves air quality and reduces cleaning effort.
Description
Overview of the Ceiling Hood with Motor
This ceiling hood with a width of 1800 mm is a high-quality solution for efficient air purification in commercial kitchens. It is specifically designed to reliably extract cooking vapours and grease, thereby ensuring a clean and safe working environment. The hood is equipped with an external controller that allows simple and flexible control of the fan speed and lighting.
Product Details and Features
The hood features a powerful motor with 147 watts and an air volume capacity of 2200 m³/h, ensuring optimal air circulation. The integrated air turnover of 1300 m³ provides effective removal of cooking vapours. The six grease-free stainless steel 18/10 labyrinth filters of type B guarantee reliable filtration and are easy to clean. The construction is made from robust stainless steel AISI 430 with welded design and a drip-free, hermetically sealed grease collection trough with drain taps, ensuring durability and easy maintenance. Additionally, the satin finish provides an attractive appearance.
Conclusion and Areas of Application
This ceiling hood is ideal for use in professional kitchens, restaurants, and large-scale kitchens that prioritise efficient grease separation and air purification. Thanks to its compact and robust design and quick installation, it is perfectly suited for both new installations and retrofitting. The integrated lighting also ensures optimal visibility during cooking. Overall, this product offers a reliable and durable solution for a hygienic and safe kitchen environment.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced following professional planning.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel can be cleaned in the commercial dishwasher.
- Daily cleaning prevents the filters from burning in and becoming resinous.
- Carefully lift the filters out of the holder, as there may be drops of fat.
- In case of heavy soiling, rinse off coarse fat with hot water.
- The dishwasher should be operated at a minimum of 60–70 °C using a grease-dissolving detergent.
- Filters must be completely dry before being reinserted to prevent mould formation.
Technical data
Dimensions
| Width | 1.800 mm |
|---|---|
| Depth | 1.300 mm |
| Height | 450 mm |
Drain size
| Width | 260 mm |
|---|---|
| Height | 300 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Conveyor volume | 2.200 m³/h/ h |
|---|---|
| Number of filters | 6 |
| Air turnover per hour | 1.300 m³ |
Connected load
| Power | 147 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 112 kg |
| Net weight | 82 kg |
Download / Exploded drawing
