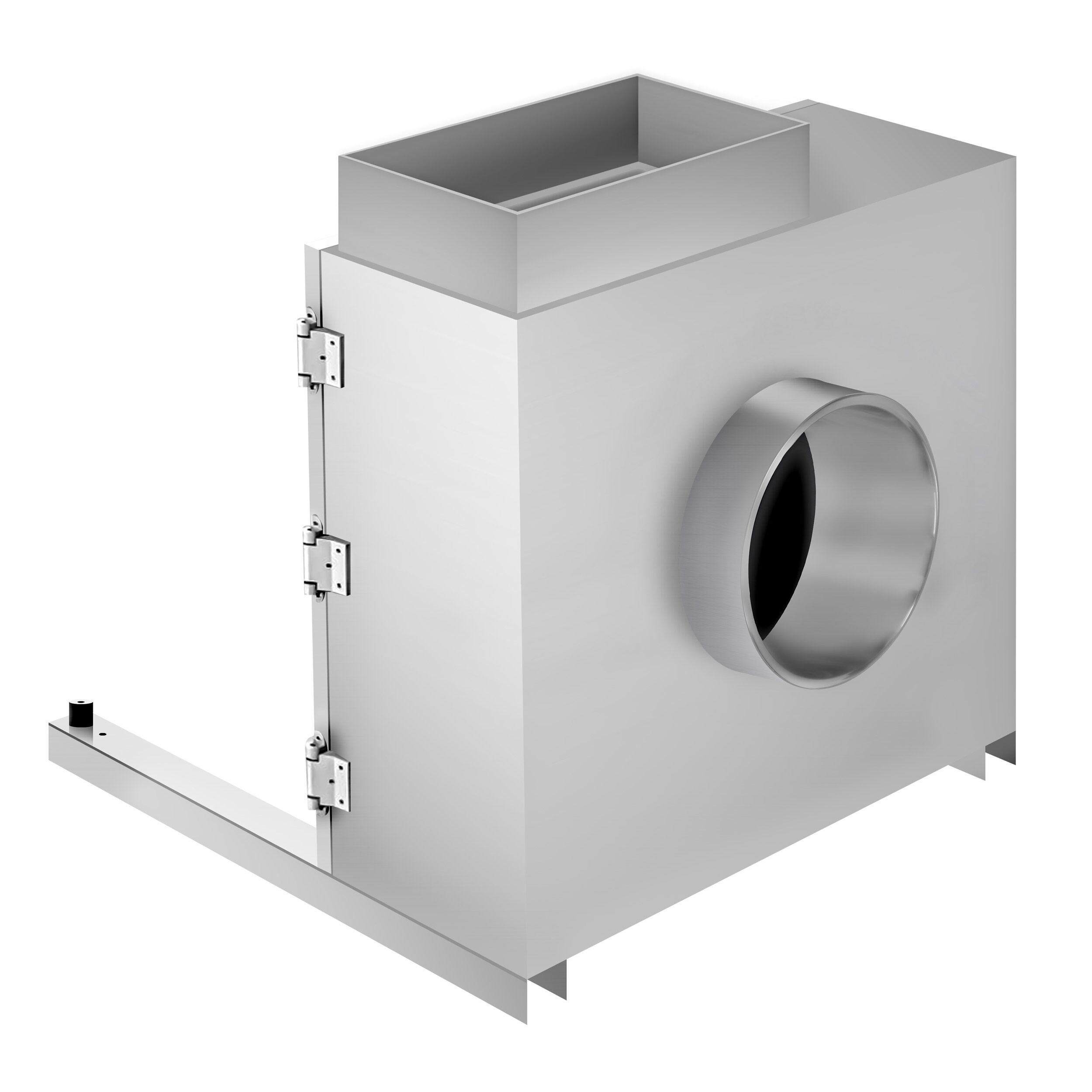

Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top

up to 120°C air temperature - VDI 4000 W PRO 1F 4P 1V
SKU AS4000WPRO
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top

* The picture may slightly differ from the original.

Guaranteed: Order by 12 noon for immediate dispatch!
€1,906.99 *
RRP €3,493.99
In stock: 1 - 3 Days
Free delivery**
Quantity:
Print* net price | gross price incl. 19% VAT.: €2,269.32
Accessories (8)

Product Advantages

  • Foldable inspection opening: Significantly facilitates maintenance and cleaning.
  • High temperature resistance up to 110 °C: Ensures reliable operation even under demanding conditions.
  • Specifically suitable for charcoal grills: Optimal exhaust performance for a better grilling experience.

Description

Efficient Ventilation for Charcoal Grills

The Airbox Pro is a powerful ventilation solution specifically designed for charcoal grills. With an impressive airflow capacity of 4000 m³ per hour, it ensures optimal air circulation, supporting the perfect grilling result. The model operates at a voltage of 230 V and is particularly energy-efficient. Its foldable design makes handling simple and practical.

High-Quality Craftsmanship and Thoughtful Features

This Airbox features a motor manufactured in Italy and a backward-curved centrifugal fan, which is maintenance-friendly and easy to clean. The weatherproof casing made of galvanised steel sheet guarantees a long service life, while the polyurethane rigid foam insulation provides heat and sound insulation. An integrated grease drain is pre-installed, further facilitating cleaning. The self-supporting structure made of sandwich panels makes the box particularly robust and stable.

Conclusion and Areas of Application

The Airbox Pro is ideal for anyone seeking a reliable and powerful ventilation solution for charcoal grills. It combines high performance with low power consumption and, thanks to its weatherproof and easy-to-clean design, is versatile in use – whether in a private garden or a professional catering environment. The combination of quality, efficiency, and simple maintenance makes it the perfect choice for an optimal grilling atmosphere.

Installation & Operation

  • ⚠️ To avoid possible damage, connect the thermal protection to the speed controller if the wiring diagram specifies two cables.
  • ⚠️ For single-phase motors, the thermal protection is often integrated into the motor, so external connections are not required.
  • ⚠️ Before commissioning, carefully check the electrical connections on the appliance or junction box.
  • ⚠️ Faulty electrical connections will void the warranty.

Technical data

Dimensions

Width 820 mm
Depth 870 mm
Height 913 mm

Details

Air turnover per hour 4.000 m³
Diameter of suction support 360 mm
Pumping medium - temperature -20 °C to 110 °C

Connected load

Power 250 Watt
Voltage 230V
Phase(s) 1N/PE
Frequency 50 Hz
Amperage 2,30 A

Delivery

Shipping method Haulage
Delivered as Mounted
Gross weight 72 kg
Net weight 0 kg

Download / Exploded drawing

Safety and disposal instructions

TUV
