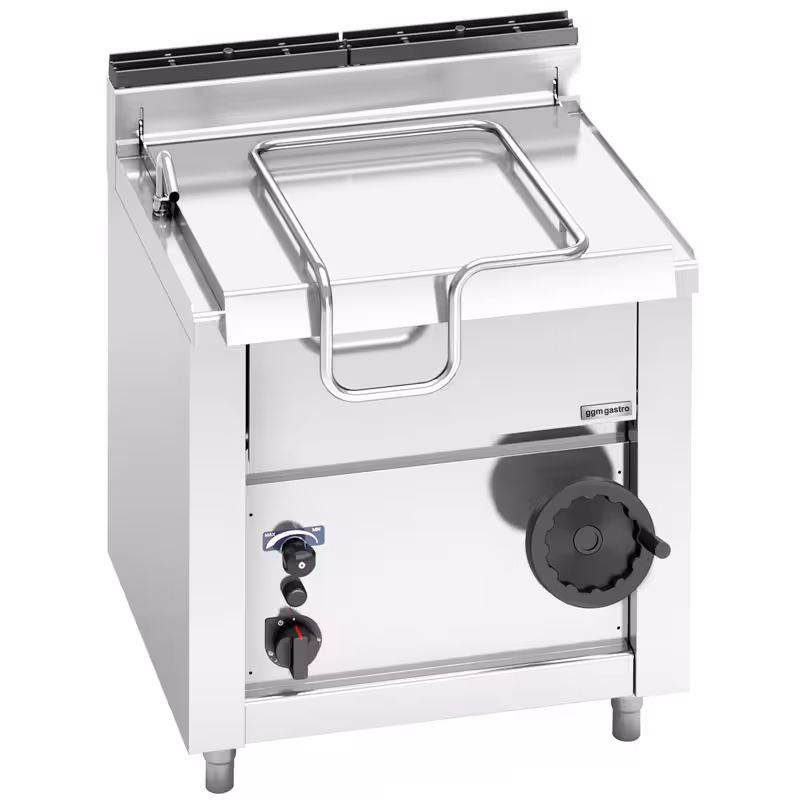

Gas Bratt Pan - 45L - 14.5kW - Manual Tilt
Floor-standing unit - 700 Deep
SKU GBB879B

* The picture may slightly differ from the original.
Guaranteed: Order by 12 noon for immediate dispatch!
Print* net price | gross price incl. 19% VAT.: €3,918.66
Gas Bratt Pan - 45L - 14.5kW - Manual Tilt
SKU GBB879B
Floor-standing unit - 700 Deep
Print* net price | gross price incl. 19% VAT.: €3,918.66
Accessories (3)
Spare Parts (8)
Product Advantages
- Made in Italy: Stands for high-quality craftsmanship and durable quality.
- All-rounder: Replaces multiple appliances and allows roasting, braising, cooking, and steaming in one device.
- Mass production expert: Efficiently prepares large quantities in just one go.
- Easy pouring: The tilting function facilitates pouring and saves the heavy lifting of pots.
Description
- Heating elements and electronics manufactured in Germany
- Self-balancing hinge
- Tilt angle up to 80°
- Ventilation of cooking vapours via integrated chimney
- Compatible with other products in the "Lorenzo 700" series
Powerful gas tilting frying pan for professional use
The gas tilting frying pan with a 60-litre capacity offers a high output of 14.5 kW, ideal for demanding kitchens. Its self-balancing hinge and tilt angle of up to 80° allow for comfortable and safe tilting when emptying. The integrated ventilation of cooking vapours via a chimney ensures optimal air circulation and a pleasant working environment. The combination of heating elements and electronics manufactured in Germany guarantees reliable and durable use.Versatility and safety for professional kitchens
This tilting frying pan is excellent for braising and sauces and impresses with its safety thermocouple protection, which automatically shuts off the gas supply if the flame goes out. The high-quality AISI-304 stainless steel body and AISI-316 stainless steel base ensure longevity and easy cleaning. Thanks to the piezo ignition with silicone protection and height-adjustable stainless steel feet, it is flexible to use and adapts to any professional kitchen. Combining it with other products from the "Lorenzo 700" series expands its range of applications.Installation & Operation
- ⚠️ Please note that all gas appliances must be installed by a qualified professional.
- We would like to point out that the use of an extraction system is recommended to ensure the best possible performance and optimal use of the product.
Cleaning & Maintenance
- Allow the pan to cool to approximately 50 °C to 60 °C before cleaning to prevent material damage (cracks/distortion) caused by extreme temperature shocks.
- Soak crusts with warm water. Do not use steel wool or knives; use only soft sponges, brushes, or plastic scrapers.
- After cleaning, thoroughly remove all detergent and cleaner residues with clear water to ensure nothing contaminates the food during the next cooking process.
- Clean the spout, lip, and lid seals especially thoroughly, as these areas tend to accumulate germs and grease residues.
- Never rinse the appliance with a high-pressure cleaner or strong water jet (risk to electrical/mechanical components) and leave the lid slightly open after cleaning to allow drying.
Technical data
Dimensions
| Width | 800 mm |
|---|---|
| Depth | 714 mm |
| Height | 1.041 mm |
Pan dimensions
| Width | 575 mm |
|---|---|
| Depth | 475 mm |
| Height | 200 mm |
Details
| Actual filling quantity | 45 l |
|---|---|
| Frying surface | 2.750 cm² |
| Temperature | 100 °C to 300 °C |
Connected load
| Connection | Gas |
|---|---|
| Power | 14,50 kW |
| Output per 24 hours | 4,35 kW |
Average consumption
| Kcal/h | 12.470 |
|---|---|
| Btu/h | 49.474 |
| Propane gas (G30 / G31) | 1,14 kg/h |
| Natural gas H (G20) | 1,53 m³/h |
| Natural gas L (G25) | 1,79 m³/h |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 132 kg |
| Net weight | 117 kg |
Download / Exploded drawing
Download / Exploded drawing
Safety and disposal instructions
Safety and disposal instructions
Download / Exploded drawing
Safety and disposal instructions
