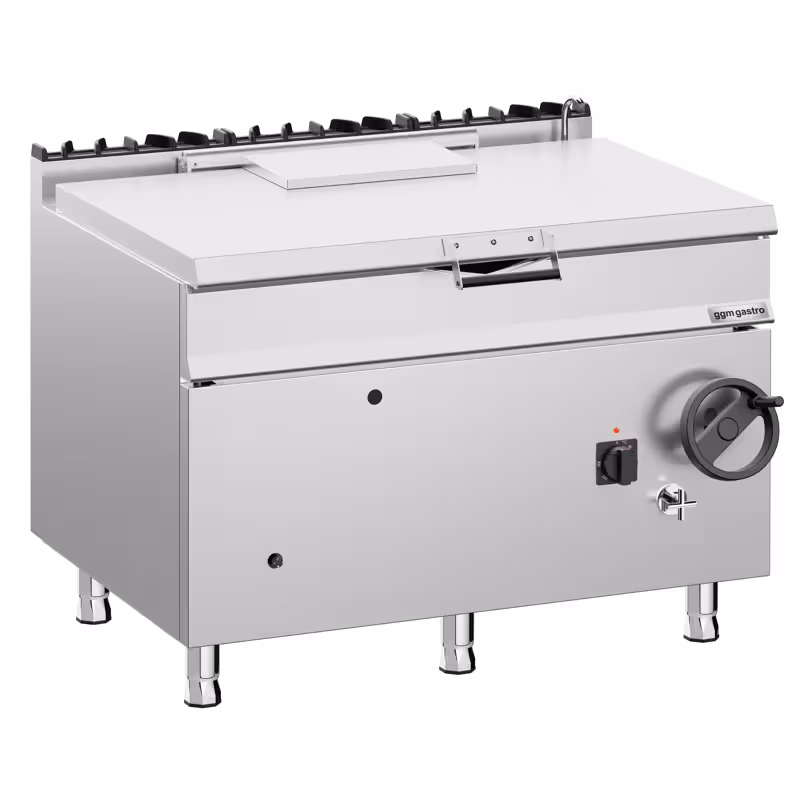

Gas Bratt Pan - 120L - 30kW - Manual Tilt - with Water Fill Tap
Freestanding Unit – 900 mm Deep
SKU GBK199

* The picture may slightly differ from the original.
Print* net price | gross price incl. 19% VAT.: €4,123.34
Gas Bratt Pan - 120L - 30kW - Manual Tilt - with Water Fill Tap
SKU GBK199
Freestanding Unit – 900 mm Deep
Print* net price | gross price incl. 19% VAT.: €4,123.34
Accessories (3)
Product Advantages
- Hygienic design: Smooth surfaces and thoughtful design enable particularly hygienic and rapid cleaning.
- Durability: Reinforced body and AISI 304 stainless steel ensure an extremely long service life even with intensive use.
- High efficiency: Burners directly beneath the basin provide optimal heat transfer and thus efficient operation.
- High safety: Safety thermostat and thermocouple monitoring offer maximum protection during operation.
Description
- Manual tilting system via comfortable handwheel
- Self-balancing hinged lid
- Powerful tubular burner
- Convenient piezo ignition
- Cast iron chimney cover
- Compatible with other products from the "Giuseppe 700" series
Robust gas tilting frying pan for professional use
The gas tilting frying pan with a 120-litre capacity impresses with its robust design made of high-quality AISI 304 stainless steel, ensuring long service life. The reinforced body and the 10 mm thick pan base made of AISI 310 stainless steel guarantee optimal heat distribution for perfect cooking results. Equipped with a powerful tubular burner and a convenient piezo ignition, it offers reliable and easy handling. The manual tilting system with handwheel allows for safe and comfortable emptying.Versatile applications and well-thought-out safety features
Ideally suited for use in the catering industry, the tilting frying pan convinces with thermostatic temperature control and an integrated safety thermostat to protect against overheating from 350 °C. The water inlet pipe can be controlled directly via the front panel, facilitating cleaning. Additionally, height-adjustable feet ensure a stable stand. The combination with other products from the "Giuseppe 700" and "Giuseppe 900" series enables flexible usage concepts in the professional kitchen.Installation & Operation
- ⚠️ Please note that all gas appliances must be installed by a qualified professional.
- We would like to point out that the use of an extraction system is recommended to ensure the best possible performance and optimal use of the product.
Cleaning & Maintenance
- Allow the pan to cool to approximately 50 °C to 60 °C before cleaning to prevent material damage (cracks/distortion) caused by extreme temperature shocks.
- Soak crusts with warm water. Do not use steel wool or knives; use only soft sponges, brushes, or plastic scrapers.
- After cleaning, thoroughly remove all detergent and cleaner residues with clear water to ensure nothing contaminates the food during the next cooking process.
- Clean the spout, lip, and lid seals especially thoroughly, as these areas tend to accumulate germs and grease residues.
- Never rinse the appliance with a high-pressure cleaner or strong water jet (risk to electrical/mechanical components) and leave the lid slightly open after cleaning to allow drying.
Technical data
Dimensions
| Width | 1.200 mm |
|---|---|
| Depth | 900 mm |
| Height | 900 mm |
Details
| Capacity | 120 l |
|---|---|
| Temperature | 50 °C to 300 °C |
| Gas connection | 1/2" |
| Water connection | 1/2" |
Connected load
| Operating mode | Gas |
|---|---|
| Gas output | 30 kW |
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Average consumption
| Kcal/h | 25795.36 |
|---|---|
| Btu/h | 102.364,20 |
| Propane gas (G30 / G31) | 2.366 kg/h |
| Natural gas H (G20) | 3.175 m³/h |
| Natural gas L ( G25 ) | 3.692 m³/h |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 210 kg |
| Net weight | 195 kg |
