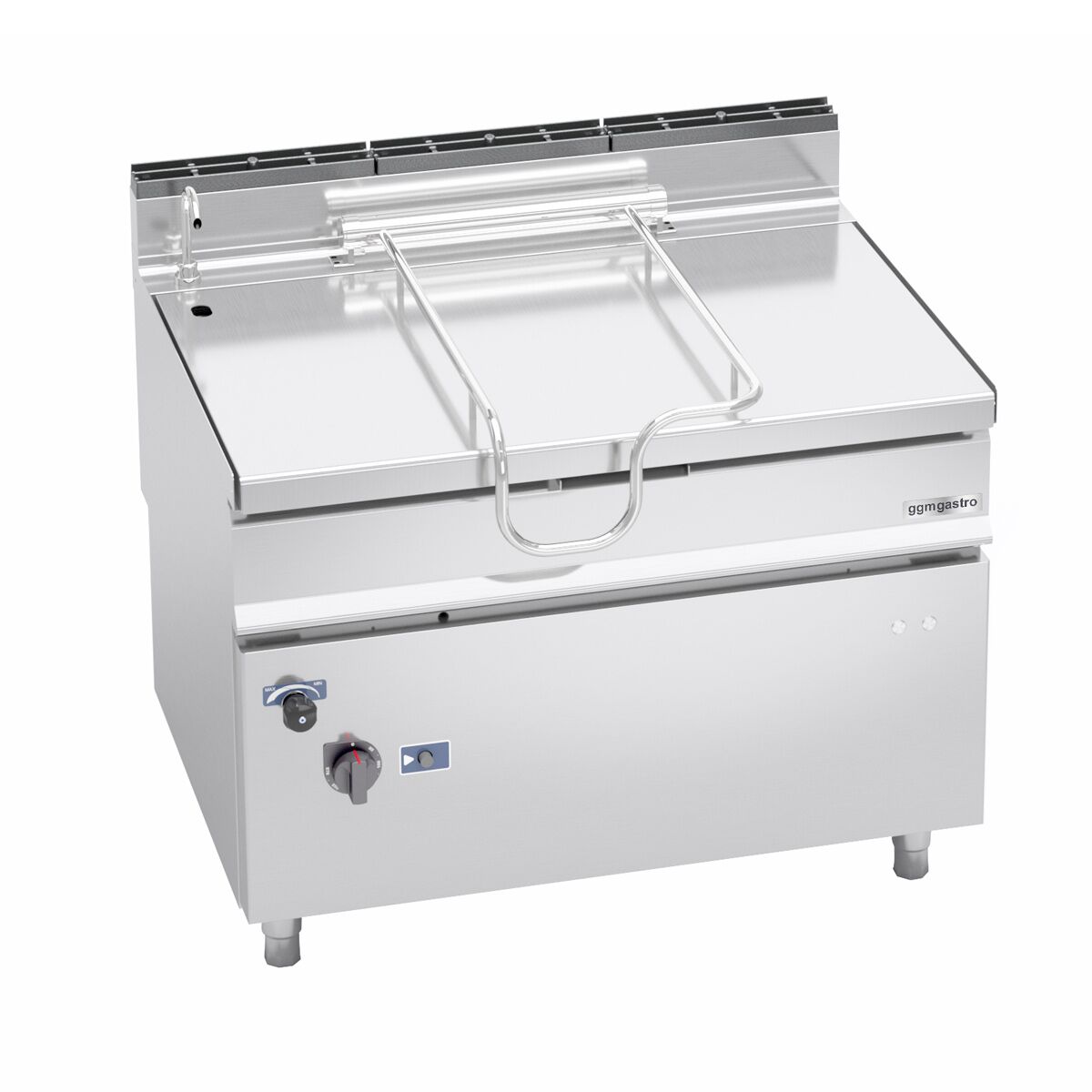

Gas Bratt Pan - 100L - 30kW
Floor-standing unit - 900 Deep
SKU GBB1299M
* The picture may slightly differ from the original.
Guaranteed: Order by 12 noon for immediate dispatch!
Print* net price | gross price incl. 19% VAT.: €7,389.89
Gas Bratt Pan - 100L - 30kW
SKU GBB1299M
Floor-standing unit - 900 Deep
Print* net price | gross price incl. 19% VAT.: €7,389.89
Accessories (7)
Spare Parts (7)
Product Advantages
- Made in Italy: Stands for high-quality craftsmanship and durable quality.
- All-rounder: Replaces several appliances and allows versatile cooking such as frying, braising, boiling, and steaming.
- Mass production expert: Prepares large quantities in just one go, saving time and effort.
- Easy pouring: The tilting function makes pouring simple and reduces physical strain.
Description
- Actual filling capacity: 100 l
- Heating elements and electronics manufactured in Germany
- Motor-driven tilting
- Ventilation of cooking vapours via integrated chimney
- Water tap for filling and rinsing the container
- Compatible with other products from the "Lorenzo 900" series
Powerful gas tilting frying pan for professional use
The gas tilting frying pan with a 120-litre capacity impresses with its robust construction made of high-quality AISI-304 stainless steel, ensuring long service life and easy cleaning. The motor-driven tilting system allows for comfortable emptying and handling of large quantities. Thanks to the ceramic microbead non-stick coating, gentle and even cooking is achieved. The integrated ventilation via the chimney ensures optimal steam extraction and safe working conditions in the kitchen.Versatility and safety for professional kitchens
Equipped with a powerful 30 kW stainless steel tube burner and a safety thermocouple for automatic gas shut-off, the tilting frying pan offers maximum safety. The water tap for filling and rinsing facilitates cleaning and operation. The tilt angle of up to 80° and the self-balancing hinge make the operation particularly flexible. Ideal for braising, frying, and sauces, this appliance is perfect for professional use in large kitchens and catering establishments.Installation & Operation
- ⚠️ Please note that all gas appliances must be installed by a qualified professional.
- We would like to point out that the use of an extraction system is recommended to ensure the best possible performance and optimal use of the product.
Cleaning & Maintenance
- Allow the pan to cool to approximately 50 °C to 60 °C before cleaning to prevent material damage (cracks/distortion) caused by extreme temperature shocks.
- Soak crusts with warm water. Do not use steel wool or knives; use only soft sponges, brushes, or plastic scrapers.
- After cleaning, thoroughly remove all detergent and cleaner residues with clear water to ensure nothing contaminates the food during the next cooking process.
- Clean the spout, lip, and lid seals especially thoroughly, as these areas tend to accumulate germs and grease residues.
- Never rinse the appliance with a high-pressure cleaner or strong water jet (risk to electrical/mechanical components) and leave the lid slightly open after cleaning to allow drying.
Technical data
Dimensions
| Width | 1.200 mm |
|---|---|
| Depth | 900 mm |
| Height | 1.068 mm |
Pan dimensions
| Width | 1.100 mm |
|---|---|
| Depth | 900 mm |
| Height | 900 mm |
Details
| Temperature | 100 °C to 300 °C |
|---|---|
| Gross volume | 120 l |
| Actual filling quantity | 100 l (common) |
Connected load
| Connection | Gas |
|---|---|
| Power | 30 kW |
| Kcal/h | 25.800 |
| Btu/h | 102.360 |
| Propane gas (G30 / G31) | 2,35 kg/h |
| Natural gas H (G20) | 3,17 m³/h |
| Natural gas L ( G25 ) | 3,71 m³ |
Connection: Electrical
| Voltage | 230V |
|---|---|
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 269 kg |
| Net weight | 205 kg |
Download / Exploded drawing
Download / Exploded drawing
Safety and disposal instructions
Safety and disposal instructions
Download / Exploded drawing
Safety and disposal instructions
