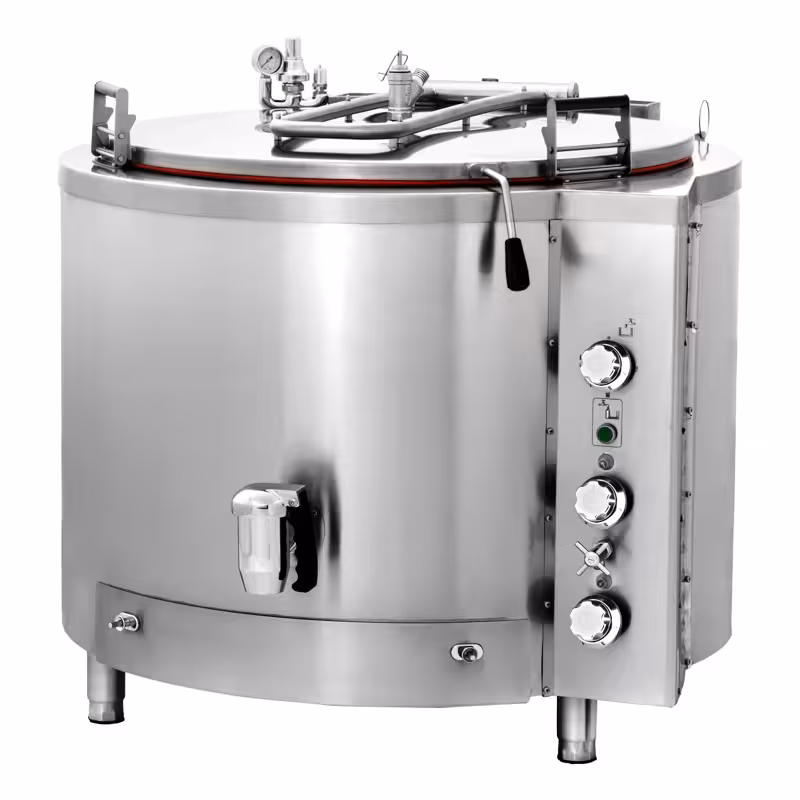

Gas Boiling Pan - 500L - 56kW - Indirect Heating - with Water Connection
SKU KKGOZ500Floor-standing unit - 1300 Deep
** The picture may slightly differ from the original.
Print* net price | gross price incl. 19% VAT.: €11,620.34
** The picture may slightly differ from the original.
Gas Boiling Pan - 500L - 56kW - Indirect Heating - with Water Connection
SKU KKGOZ500Floor-standing unit - 1300 Deep
Print* net price | gross price incl. 19% VAT.: €11,620.34
Product Advantages
- Absolutely gentle: The heat is evenly distributed through the medium, so milk, soups or purées hardly ever burn.
- Uniform heat: The kettle is heated evenly on all sides, including the side walls.
- Perfect for long cooking times: Ideal for keeping warm, braising or for "Cook & Chill" production.
- Easier cleaning: Since nothing burns, usually a simple rinse and wipe is sufficient.
Description
- Double-walled cooking kettle
- Indirect heating
- Spring-loaded lid
- Chimney with splash guard function
- Tap and outlet for filling and rinsing the container
Robust gas cooking kettle for professional kitchens
The gas cooking kettle with a capacity of 500 litres offers indirect heating, ensuring even heat distribution. Equipped with a double-walled stainless steel kettle made of AISI-304 and a spring-loaded lid, it guarantees durability and ease of handling. The high-quality stainless steel tube burner provides an efficient and safe heat source. With a powerful burner of 56 kW, the kettle is optimally designed for intensive use.Versatile use and safe operation
The kettle is ideal for professional use in large kitchens and catering operations. Thanks to the safety thermocouple, the gas supply is automatically cut off if the flame goes out, ensuring maximum safety. Practical features such as the tap and drain valve facilitate filling and rinsing. Height-adjustable stainless steel feet provide a stable stand, while pressure gauges and power regulators allow precise control. A chimney with splash guard function protects against unwanted liquid discharge.Installation & Operation
- ⚠️ All gas appliances must be connected by a qualified professional.
- ⚠️ The use of an extraction system is recommended to ensure the best possible performance and optimal use of the product.
Cleaning & Maintenance
- Allow the kettle to cool and only soak crusts. Do not use steel wool, scrapers, or chlorine-based cleaners to avoid damaging the stainless steel.
- Disassemble the outlet tap daily, clean thoroughly, disinfect, and lubricate with food-grade tap grease.
- Consistently remove limescale deposits to ensure optimal heat transfer and save energy.
- For indirectly heated kettles, regularly check the water level in the double jacket and the safety valve.
- After cleaning, always leave the lid slightly open for ventilation.
Technical data
Dimensions
| Width | 1.300 mm |
|---|---|
| Depth | 1.300 mm |
| Height | 966 mm |
Boiler dimensions
| Diameter | [b]1.100 mm[/b] |
|---|---|
| Depth | 600 mm |
Details
| Filling quantity | 500 l |
|---|---|
| Cold water connection | Zoll |
| Hot water connection | Zoll |
Connected load
| Connection | Gas |
|---|---|
| Gas connection | Zoll |
| Power | 56 kW |
Average consumption
| Kcal/h | 48160 |
|---|---|
| Btu/h | 191072 |
| Propane gas (G30 / G31) | kg/h kg/h |
| Propane gas (G30) | 4,41 kg/h |
| Natural gas H (G20) | 5,92 m³/h |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 220 kg |
| Net weight | 209 kg |
Download / Exploded drawing
Download / Exploded drawing
Safety and disposal instructions
Safety and disposal instructions
Download / Exploded drawing
Safety and disposal instructions
