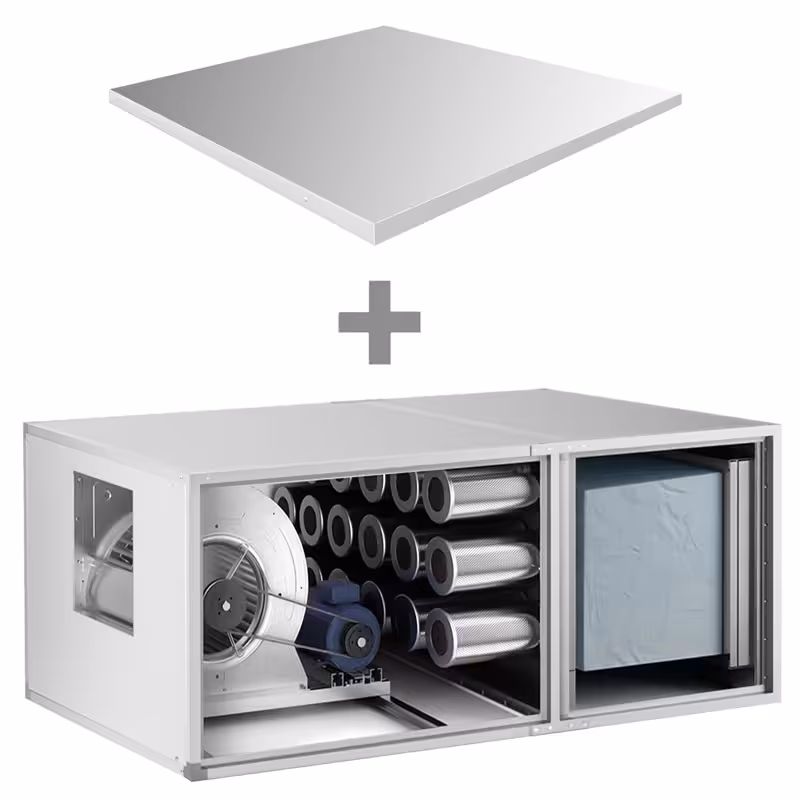

Exhaust Air Purification System with Motor - 8400m³/h - with Pre‑Filter, Bag Filter & Activated Carbon Filter - incl. Protective Panel
400V - 2,2 kW
SKU AMC8400VTA#SPAMC2012
* The picture may slightly differ from the original.
Print* net price | gross price incl. 19% VAT.: €4,323.26
Exhaust Air Purification System with Motor - 8400m³/h - with Pre‑Filter, Bag Filter & Activated Carbon Filter - incl. Protective Panel
Rate now
SKU AMC8400VTA#SPAMC2012
400V - 2,2 kW
Print* net price | gross price incl. 19% VAT.: €4,323.26
Accessories (4)
Product Advantages
- Made in Italy: High-quality craftsmanship and reliable quality through Italian manufacturing.
- Filtration & Deodorisation: Effective air purification by removing pollutants and unwanted odours.
Description
Efficient Exhaust Air Purification for Outdoor Use
This exhaust air purification system with motor offers a powerful solution for air cleaning with an airflow volume of 8,400 m³. It is ideally suited to reliably filter pollutants and odours from the exhaust air. With a 70% separation efficiency, contaminants are effectively retained, resulting in significantly improved air quality. The integrated protective panel allows for outdoor use and protects the system from weather influences.Robust Construction and High-Quality Filter Technology
The system is equipped with a pre-, pocket, and activated carbon filter, which together ensure thorough purification. The radial fan with double suction provides a consistently high airflow while maintaining low energy consumption. The housing consists of a robust aluminium profile frame construction with one-sided panel cladding, made internally from galvanised steel sheet and externally from stainless steel. The low-noise and weatherproof cladding with sound- and pressure-resistant design guarantees quiet operation even under demanding conditions.Conclusion and Areas of Application
This exhaust air purification system is perfect for industrial and commercial applications where environmentally friendly and efficient air cleaning is required. It is particularly suitable for outdoor use, such as in workshops, production halls, or laboratories. The combination of powerful filters and a robust, weatherproof construction makes it a reliable solution for clean exhaust air and sustainable environmental protection.Installation & Operation
- IMPORTANT: Only to be operated with an inverter!
- To prevent possible damage to the motor and/or the device, it is absolutely essential to connect the thermal protection to the speed controller, provided the wiring diagram shows two designated lines for this purpose.
- For single-phase motors, the thermal protection is often integrated within the motor, so no external connections to the speed controller are required.
- Before commissioning the fan and/or device, always carefully check the electrical connections. These may be located on the fan/device itself or in the connection box.
- Damage caused by incorrect electrical connections is excluded from the warranty.
- Only original spare parts guarantee the specified performance values in terms of efficiency, air volume flow, and pressure.
- The use of non-original components that impair the proper functioning of the device is excluded from the warranty.
Technical data
Dimensions
| Width | 2.000 mm |
|---|---|
| Depth | 1.280 mm |
| Height | 800 mm |
Dimensions prefilter
| Width | 592 mm |
|---|---|
| Depth | 592 mm |
| Height | 48 mm |
Dimensions of bag filter
| Width | 592 mm |
|---|---|
| Depth | 592 mm |
| Height | 535 mm |
Dimensions activated charcoal filter
| Width | 160 mm |
|---|---|
| Depth | 160 mm |
| Height | 400 mm |
Details
| Speed regulation | Frequency converter |
|---|---|
| Number of activated carbon filters | 18 Piece |
| Number of prefilters | 2 Piece |
| Number of bag filters | 2 |
| Air turnover per hour | 8.400 l |
| Degree of separation | 70% |
| Transient air temperature | 50 °C |
| Ambient temperature | -20 °C to 40 °C |
Connected load
| Power | 2,20 kW |
|---|---|
| Voltage | 400V |
| Phases | 3N/PE |
| Frequency | 50 Hz |
| Amperage | 5 A |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 323 kg |
| Net weight | 311 kg |
