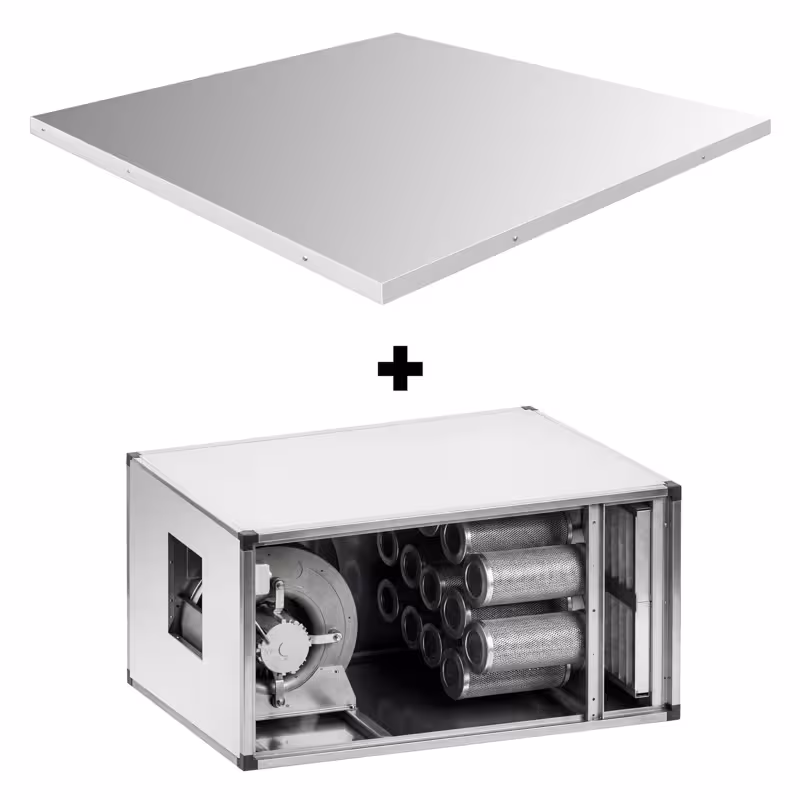

Exhaust Air Purification System with Motor - 4400m³/h - with Pre‑Filter & Activated Carbon Filter - incl. Protective Panel

Design

• Made in Italy - quality product made in Italy

• Low-noise activated carbon filter system

• TOP performance 4.400 m³

• With motor and protection panel for outdoor use

• Square air outlet

• Low energy consumption

• Environmentally-friendly

• Pre-filter and activated carbon filter

• Air filtration and deodorisation

• Deodorisation (removal of undesired smells)

Quality

• Noise and pressure resistant covering

• Low-noise and weather-proof covering

• Interior made of hot-dip galvanised sheeting and stainless steel exterior

• Heat and sound insulation with 5 mm thick foam certified according to UNI EN 13501-1 Class B-s2,d0

Scope of delivery

• Engine

• 14 Activated carbon filter

• 2 Prefilter

• Protection panel

Guidelines

• Compliant with European Regulation 1253 (ERP 2018)

• Manufactured in accordance with relevant hygiene and safety standards

• CE marking as proof of conformity with EU regulatory standards

Notes

• To prevent possible damage to the motor and/or the appliance, it is essential to connect the thermal protection to the speed controller if the wiring diagram shows two lines provided for this purpose

• With single-phase motors, the thermal protection is often integrated in the motor so that no external connections to the speed controller are required

• Always check the electrical connections carefully before commissioning the fan and/or appliance. These may be located on the fan/device itself or in the connection box

• Damage caused by faulty electrical connections is excluded from the warranty

Recommendation:

• Change the pre-filter every month

• Change the activated carbon filter every 6 months
