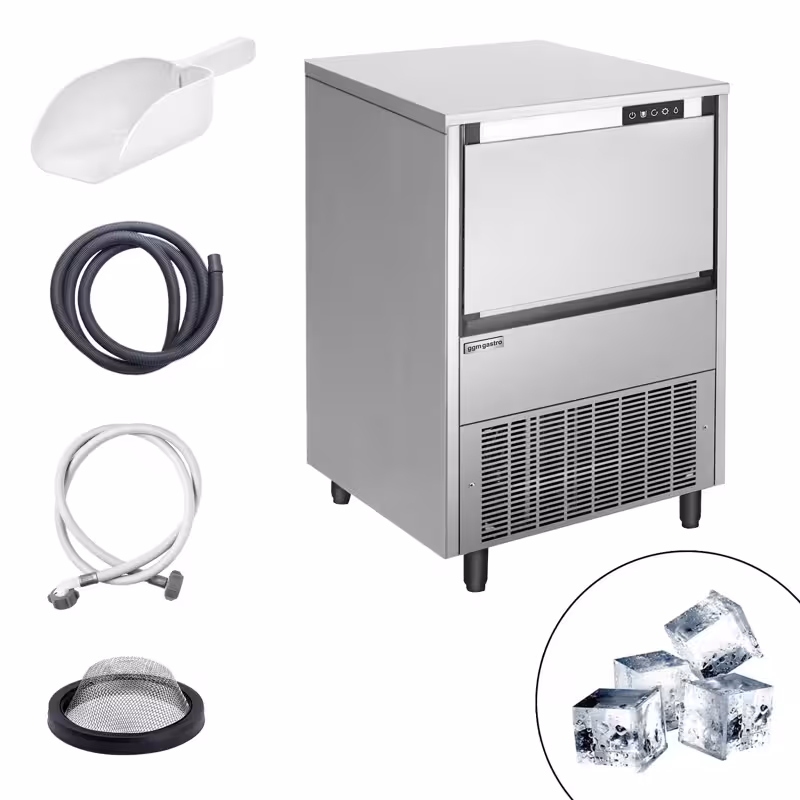

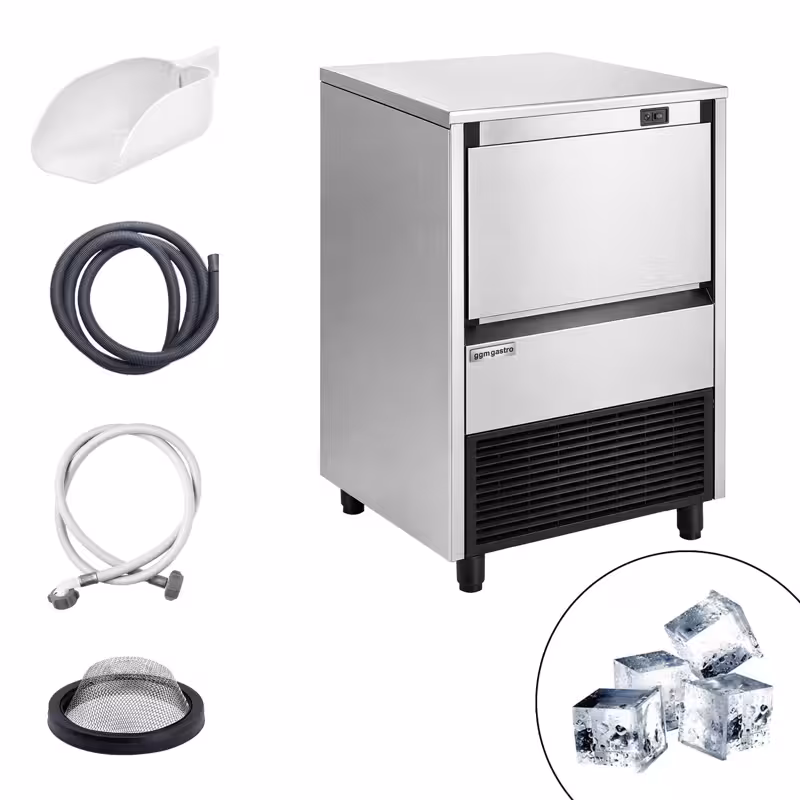

Commercial Ice Machine - Cube - 45 kg/24 h
* The picture may slightly differ from the original.
Commercial Ice Machine - Cube - 45 kg/24 h
Description
- Ice cube mould: full cube or half cube.
- Smart front ventilation system
Efficient ice cube production for professional demands
The ice cube maker produces up to 45 kg of ice cubes per 24 hours in two practical shapes: full cubes of 12 g or half cubes of 6 g. With a container volume of 20 kg, it is ideal for continuous use in gastronomy and commercial settings. The smart front ventilation system ensures optimal cooling and energy efficiency.
Robustness and reliability for demanding environments
The machine features an electronic control that operates reliably even under extreme climatic conditions. The housing made of high-quality AISI 304 stainless steel guarantees durability. Additionally, an elastic coating ensures maximum lifespan. The powerful motor gearbox and the energy-saving design provide strong and consistent cooling with low energy consumption.
Installation & Operation
- This appliance requires a fixed water connection!
- Water drainage is required
- Warning: The integrated containers are not suitable for the permanent storage of ice cubes!
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descaling agents are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
Technical data
Dimensions
| Product Dimensions (WxDxH) | 535 x 595 x 789 mm |
|---|
Details
| Ice Cube Shape | Whole cubes |
|---|---|
| Dimensions of a full ice cube | 26 x 26 x 25.5 mm |
| Weight of a full ice cube | 12 g |
| Dimensions of half-ice cubes | 26 x 13 x 25.5 mm |
| Weight of ice cubes | 6 g |
| Ice Production per Day | 45 kg |
| Maximum filling quantity | 20 kg |
| Water pressure | 1 bis 6 bar |
Composition
| Product material | Stainless Steel AISI 304 |
|---|
Cooling performance
| Cooling type | Ventilation |
|---|---|
| Environmental temperature | 10 bis 43 °C |
| Refrigerant Type | R290 |
| Refrigerant Quantity | 0,11 kg |
Connected load
| Operation | manual |
|---|---|
| Power | 240 Watt |
| Power Connection | 230V |
| Phase | 1N/PE |
| Water Connection | In/Outlet |
| Dimension water inlet | 3/4" |
Delivery
| Shipping Method | Haulage |
|---|---|
| Delivery condition | Mounted |
| Gross Weight | 54 kg |
| Net Weight | 48 kg |
Download / Exploded drawing
