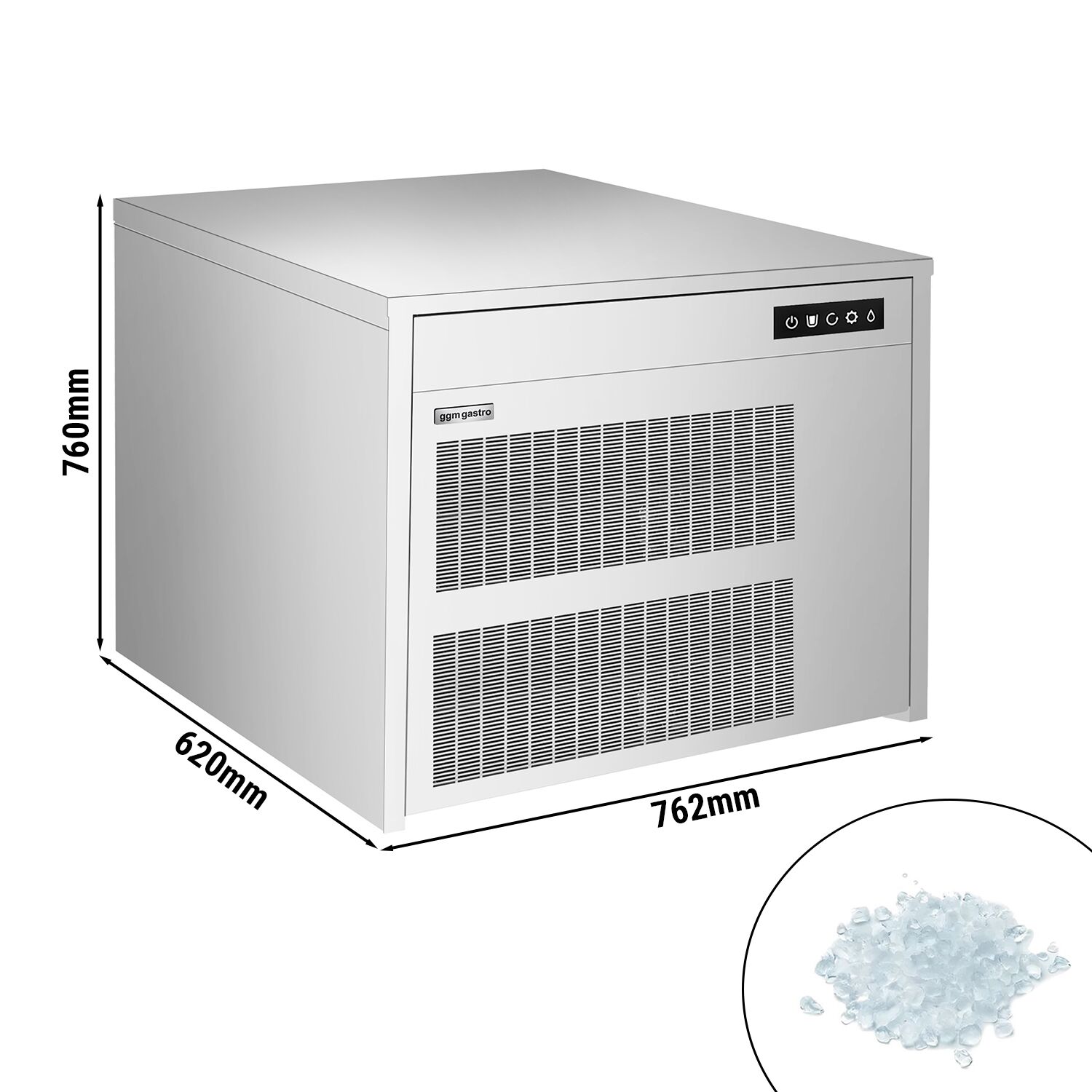

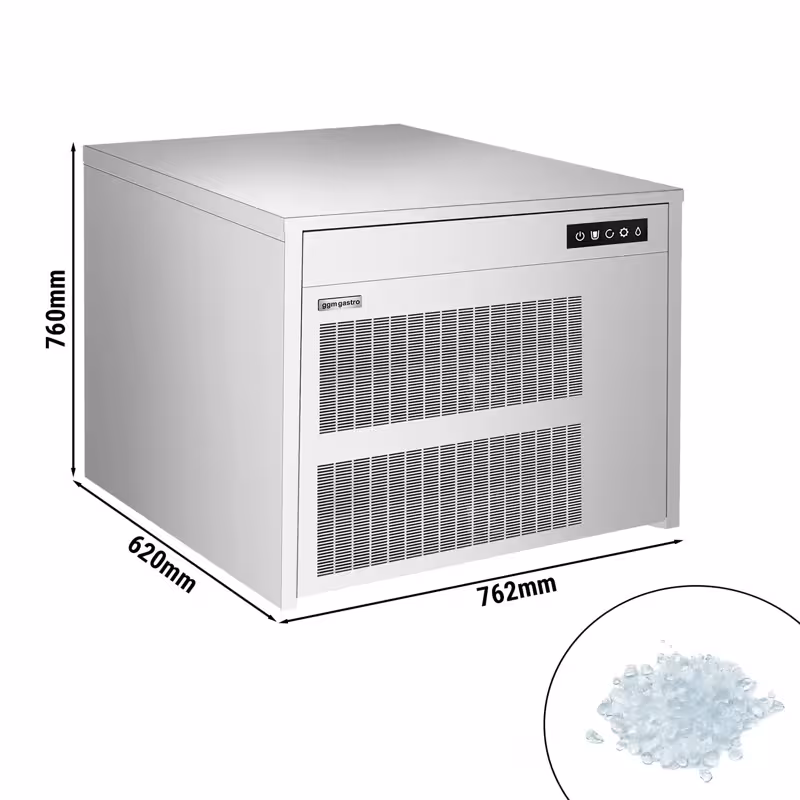

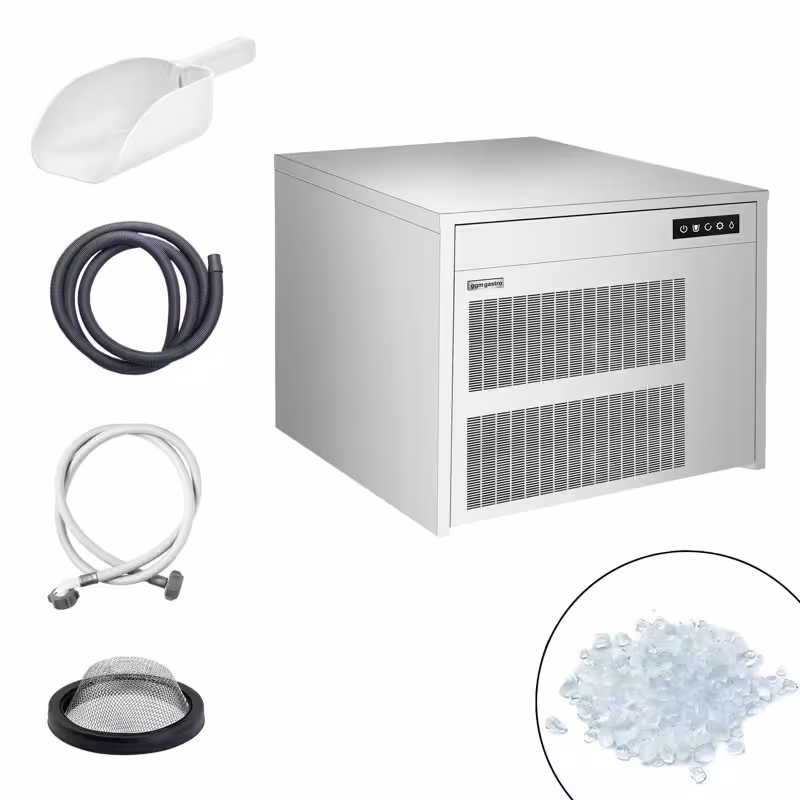

Commercial Flake Ice Machine - 390 kg/24 h
* The picture may slightly differ from the original.
Commercial Flake Ice Machine - 390 kg/24 h
Description
- Timer function
- Energy Star certification
Powerful flake ice maker for professional applications
The flake ice maker reliably produces up to 390 kg of flake ice per 24 hours and impresses with its high efficiency. Equipped with an easy-to-use on/off switch and an intelligent water distributor, it guarantees optimal ice production. The highly efficient evaporator ensures strong and consistent cooling.
Reliability and sustainability in refrigeration technology
Made from AISI 304 stainless steel, the unit stands out for its durability and ease of cleaning. The Energy Star certification confirms low energy consumption and makes the ice maker particularly environmentally friendly. Ideally suited for gastronomy, food retail, and medical applications where high-quality flake ice is required.
Installation & Operation
- Water drainage is required.
- Attention: An ice storage container must be ordered with the device!
Cleaning & Maintenance
- We recommend operating the item exclusively with a descaler, as otherwise damage to the motor and cooling system may occur.
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If you have installed a descaler upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow. The actual maximum flow rate depends on the water hardness.
Technical data
Dimensions
| Product Dimensions (WxDxH) | 762 x 620 x 760 mm |
|---|
Details
| Ice Cube Shape | Flake ice |
|---|---|
| Ice Production per Day | 390 kg |
| Water pressure | 1 bis 6 bar |
Composition
| Product material | Stainless Steel AISI 304 |
|---|
Cooling performance
| Water temperature | 5 bis 35 °C |
|---|---|
| Environmental temperature | 5 bis 43 °C |
| Refrigerant Type | R290 |
| Refrigerant Quantity | 0,87 kg |
Connected load
| Operation | manual |
|---|---|
| Power | 1,46 kW |
| Power Connection | 230V |
| Phase | 1N/PE |
| Current intensity | 16 A |
| Water Connection | In/Outlet |
| Dimension water inlet | 3/4" |
Delivery
| Shipping Method | Haulage |
|---|---|
| Delivery condition | Mounted |
| Gross Weight | 95 kg |
| Net Weight | 82 kg |
Download / Exploded drawing
