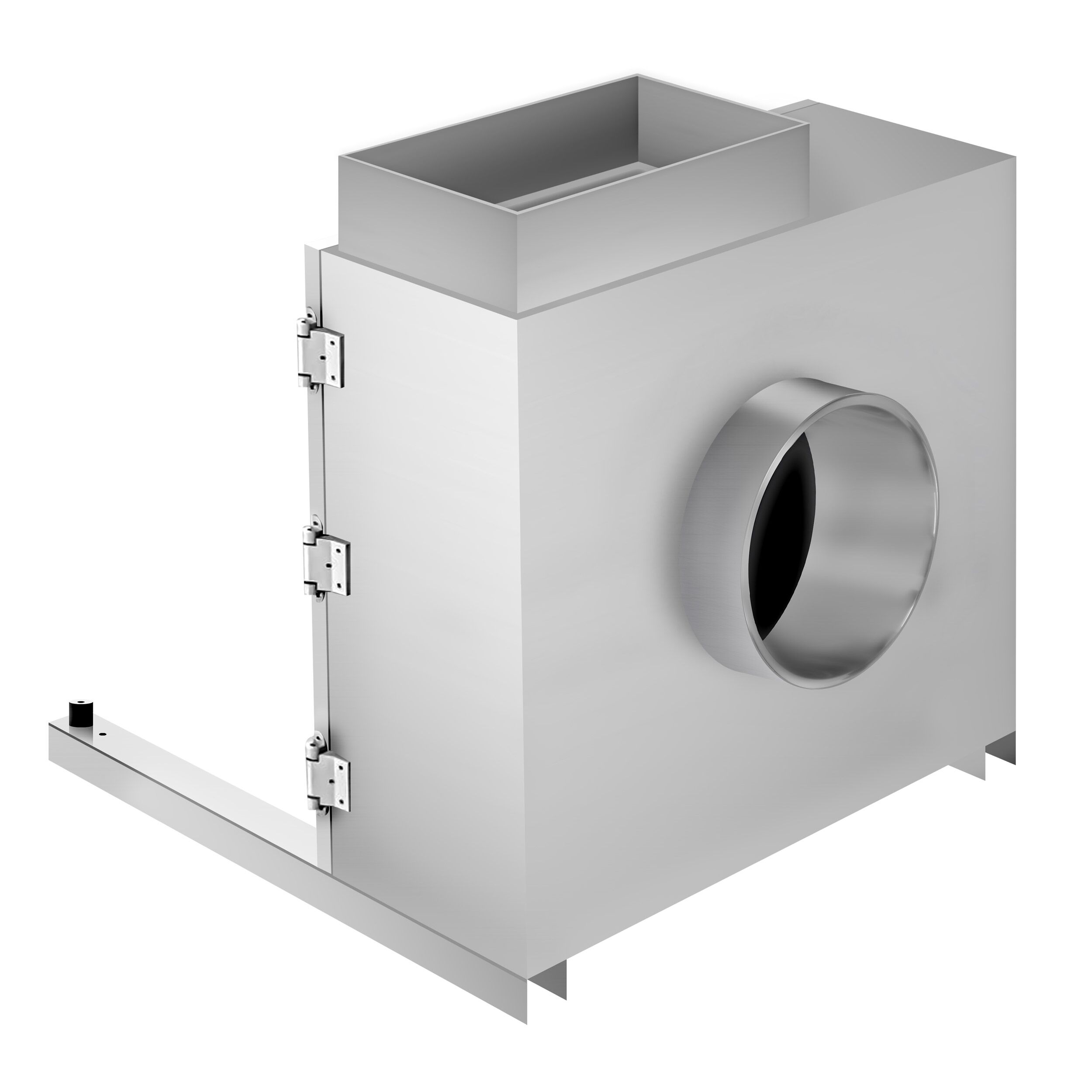

Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top

up to 120°C air temperature - VDI 4000 W PRO 1F 4P 1V
SKU AS4000WPRO
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top

* The picture may slightly differ from the original.

Guaranteed: Order by 12 noon for immediate dispatch!
€1,811.99 *
RRP €3,799.99
In stock: 1 - 3 Days
Free delivery**
Quantity:
Print* net price | gross price incl. 19% VAT.: €2,156.27
Accessories (8)

Product Advantages

  • Made in Italy: Represents high quality standards and meticulous craftsmanship.
  • Flip-up inspection opening: Significantly facilitates maintenance and cleaning.
  • Heat resistant up to 110 °C: Ensures safe operation even at high temperatures.
  • Ideal for charcoal grills: Optimal exhaust solution specifically for charcoal grills.

Description

Efficient Ventilation Solution for Charcoal Grills

The Airbox Pro is specially designed for use with charcoal grills and high temperatures. It impresses with its high performance of 4000 m³ per hour, ensuring optimal air circulation. Thanks to its foldable design, handling is particularly comfortable and allows quick access for maintenance and cleaning. This model is the ideal choice for anyone seeking a reliable and powerful ventilation solution.

Robust Construction and Technical Highlights

The housing is made of weather-resistant, galvanised sheet steel and is insulated with polyurethane rigid foam for heat and sound damping, ensuring long service life and comfortable working conditions. The motor manufactured in Italy operates with a backward-curved centrifugal fan, which is not only powerful but also maintenance-friendly and easy to clean. An integrated grease drain and the pre-cut air inlet further facilitate installation and operation. Despite its high performance, the Airbox Pro impresses with low power consumption and environmentally friendly features.

Conclusion and Areas of Application

The Airbox Pro is the perfect solution for professional grilling situations where high temperatures and strong ventilation are required. It is ideal for the catering industry, food stalls, and dedicated grilling enthusiasts who value quality and efficiency. With its robust construction and well-thought-out technology, it ensures reliable ventilation and improved air quality at the grilling site. This makes grilling not only safer but also more pleasant and effective.

Installation & Operation

  • ⚠️ To avoid possible damage, connect the thermal protection to the speed controller if the wiring diagram specifies two cables.
  • ⚠️ For single-phase motors, the thermal protection is often integrated into the motor, so external connections are not required.
  • ⚠️ Before commissioning, carefully check the electrical connections on the appliance or junction box.
  • ⚠️ Faulty electrical connections will void the warranty.

Technical data

Dimensions

Width 820 mm
Depth 870 mm
Height 913 mm

Details

Air turnover per hour 4.000 m³
Diameter of suction support 360 mm
Pumping medium - temperature -20 °C to 110 °C

Connected load

Power 250 Watt
Voltage 230V
Phase(s) 1N/PE
Frequency 50 Hz
Amperage 2,30 A

Delivery

Shipping method Haulage
Delivered as Mounted
Gross weight 72 kg
Net weight 0 kg

Download / Exploded drawing

Safety and disposal instructions
