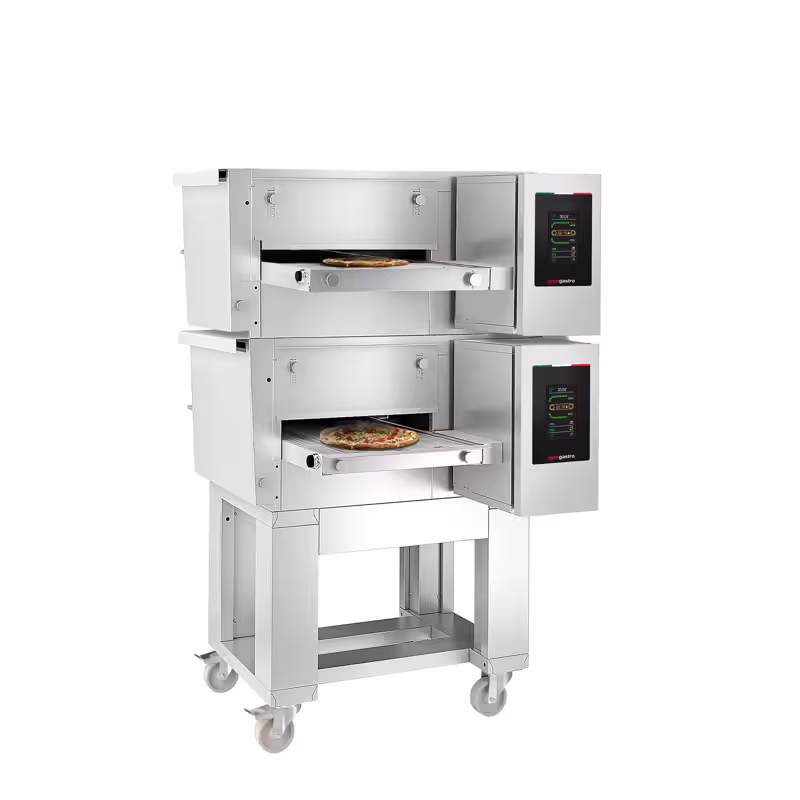

(2 pcs) Gas Conveyor Pizza Oven - 1030x1300mm (40.6"x51.2") - 230V Single Phase - Touchscreen Controls - Belt width: 400mm (15.7") - up to 350°C - incl. Base frame
Rate now
SKU 2#DPZ3030GN#UDZ3030G
Temperature up to 350 °C
Print* net price | gross price incl. 19% VAT.: €10,650.49
Accessories
Description
Product advantages
- No. 1 among continuous ovens in Europe
- Made in Italy - quality product made in Italy
- The maximum temperature of 350 °C is more than sufficient to achieve perfect results, thanks to the optimized ventilation system
- 10 Cooking programs - setting options for each program: cooking time, temperature and power for the upper and lower part of the oven
- ECONOMY function for lower production quantities - save money and energy
Please note
- Heat oven slowly during initial start-up. Increase temperature by 50 °C every 30 minutes until temperature of 350 °C is reached. With the door open, heat through for 4 hours at the set temperature of 350 °C heat through .
Design
- Gas convection oven
- Set article consisting of: 2 x pizza oven & base
- With safety thermocouple that monitors the flame and automatically switches off the gas supply to the appliance when the flame goes out
- Professional device for staff costs savings
- Maximum energy saving thanks to top-quality insulation
- Reverse button: Enables the direction of the conveyor belt to be easily reversed at the touch of a button
- Integrated safety thermostat
- Modern touch panel: Intuitive operation thanks to a highly sensitive and shock-resistant next-generation display
- Automated weekly schedule: Programmable automatic switch-off based on fixed operating times for the entire week
- Patented system for a cool external housing
- Heat-resistant control window
- Efficient use with gas
- All DPZ pass-through ovens can be stacked
- Remote control via app: Comprehensive control and monitoring of the oven via the Zanolli web app
- IoT connectivity: Intelligent networking of the device for digital processes.
Quality
- Body made of high-quality Stainless Steel
- The base frame made of high-quality stainless steel guarantees high stability
Oven chamber
- Optimal and even heat distribution
- Operating temperature is reached in record time
- Easily accessible interior
- High hourly productivity
- Perfect baking results, even without prior experience
- Efficient handling: Direct loading of the belt without doors, shovels or tools
- Always crispy baking results
- Product is transported directly to the area of use
- Side access ( for monitoring of the baking process)
Scope of delivery
- Frame
- 4 castors
Guidelines
- Manufactured in accordance with relevant hygiene and safety standards
- CE marking as proof of conformity with EU regulatory standards
- Material complies with European food standards
Technical data
Overall dimensions
| Width | 1.030 mm |
|---|---|
| Depth | 1.300 mm |
| Height | 1.510 mm |
Oven dimensions
| Width | 1.030 mm |
|---|---|
| Depth | 1.300 mm |
| Height | 440 mm |
Internal dimensions
| Width | 400 mm |
|---|---|
| Depth | 580 mm |
| Height | 95 mm |
Base frame dimensions
| Width | 765 mm |
|---|---|
| Depth | 580 mm |
| Height | 620 mm |
Details
| Operation | Touchscreen |
|---|---|
| Number of chambers | 2 Baking chambers |
| Belt width | 400 mm |
| Minimum baking time | 1,75 ' |
| Maximum baking time | 30 ' |
Cooking system
| Heating type | Convection |
|---|---|
| Temperature up to | 350 °C |
Connected load
| Operating mode | Gas |
|---|---|
| Gas connection | 1/2" |
| Power | 9 kW |
| Voltage | 2x230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Partly Mounted |
| Weight | 250 kg |
Download
Download / Exploded drawing
Download / Exploded drawing
