• Lead flashing: The extremely flexible material adapts seamlessly to the wave shape of roof tiles. This ensures that rainwater running down from above is safely diverted over the roof membrane.
• Weather collar: It seals the critical gap between the pipe and the roof penetration. Water running down the pipe is caught and directed outwards in a controlled manner.

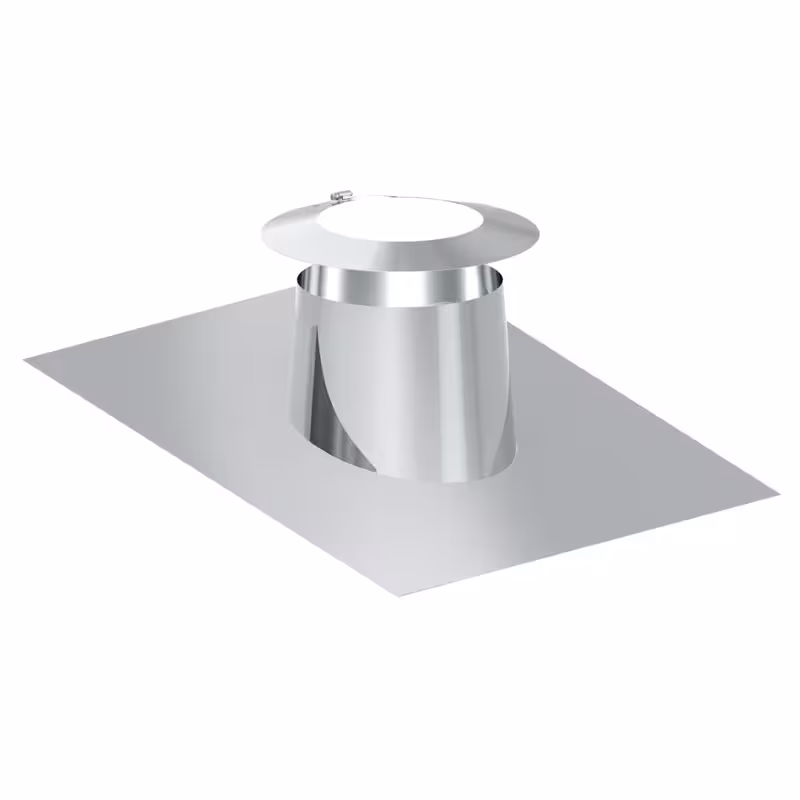

Robust Roof Penetration for Pitched Roofs

The roof penetration with a pitch angle of 5° to 15° is specifically designed for pipe outer diameters of 200mm. It is ideal for pitched roofs with clay tiles or roof tiles and provides a reliable solution for routing pipes through the roof. The combination of a lead edge and weather collar ensures secure sealing, effectively preventing water ingress.

High-Quality Materials and Thoughtful Design

Manufactured from high-quality stainless steel, the roof penetration is distinguished by its extreme robustness and durability. The double-walled construction provides additional stability and enhances thermal insulation. Particularly noteworthy is the double rain protection achieved by the lead edge and the weather collar. This design addresses two typical weak points: water runoff on the tile surface and protection of the pipe gap.

Conclusion and Areas of Application

This roof penetration is the perfect choice for those seeking a reliable and weatherproof solution for pipe outlets on pitched tiled roofs. It impresses with its durable construction and high functionality in sealing. It is especially suitable for roofs with clay tiles or roof tiles where precise adjustment to the roof pitch is required. This ensures a secure and long-lasting installation.

⚠️ Pipe diameters should always remain the same or only be reduced in a professionally planned manner. Incorrect reduction can affect the entire system.

⚠️ More detailed information on the dimensions and graphical drawings can be found under Downloads!
