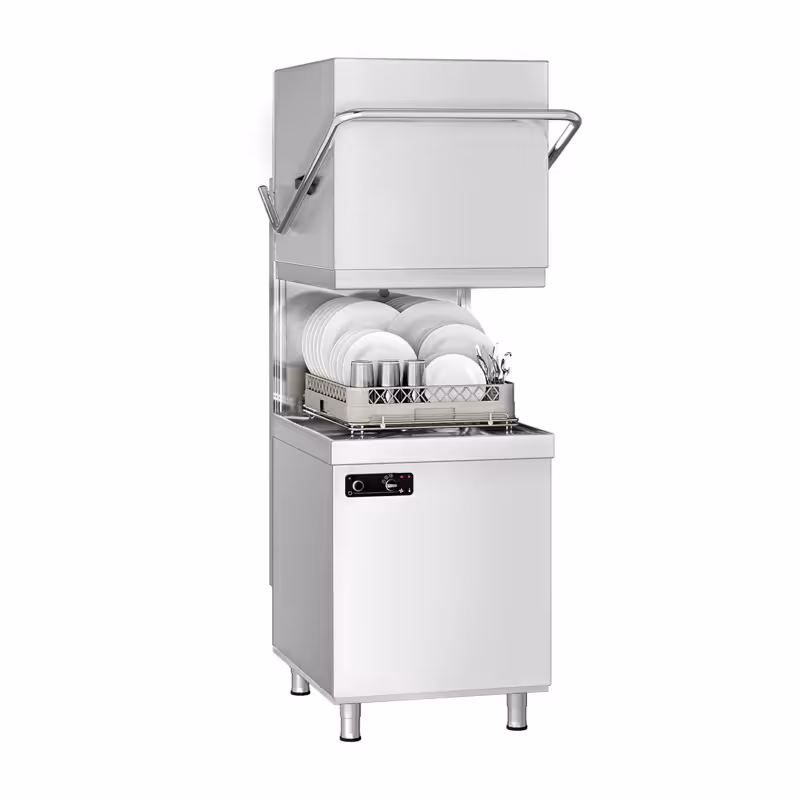

Pass Through Dishwasher - Mechanical Controls - 6.52kW - with Detergent & Rinse Aid Dosing Pumps
* The picture may slightly differ from the original.
Pass Through Dishwasher - Mechanical Controls - 6.52kW - with Detergent & Rinse Aid Dosing Pumps
Product Advantages
- Made in Italy: Stands for high-quality workmanship and reliable quality.
- Automatic wash cycle start: Saves time by starting independently after closing the hood.
- Adjustable runners: Allow flexible adjustment for easy loading and unloading of baskets.
Description
Product Overview
The pass-through dishwasher with 6.52 kW power is a robust freestanding unit specifically designed for professional use. It offers manual operation and is ideally suited for the thorough cleaning of crockery and pots. Thanks to the high-quality housing made of AISI 304 stainless steel, the machine is particularly durable and resistant to corrosion.
Product Details
The machine features two wash arms and two rinse arms that ensure effective and even cleaning. A double filter system in the washing chamber guarantees clean rinse water and prevents blockages. The integrated electric rinse aid supply and the detergent and alkali pumps allow precise dosing of cleaning agents. The control is electromechanical and maintenance-free, simplifying operation. The door opening with safety system provides additional protection during use.
Conclusion and Areas of Application
This pass-through dishwasher impresses with its powerful technology and reliable cleaning, making it a perfect solution for gastronomy, large kitchens, and catering. It is ideal for daily use when high hygiene standards must be met. The combination of robust stainless steel, efficient filter system, and precise dosing makes it an indispensable device for professional washing processes.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ The appliance can be operated with either a hot or cold water connection.
- ⚠️ The washing programmes function optimally only with a hot water connection.
- Please refer to the detailed instructions under the "Download" tab.
- Additionally, use the video to assist with installation and operation.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the appliance regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Overall dimensions
| Width | 655 mm |
|---|---|
| Depth | 785 mm |
| Height closed | 1.480 mm |
| Height open | 1.930 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Insertion height | 430 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water outlet | Ja |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 405 mm |
Flushing process
| Rinse program 1 | Rinse time 75 at max 48 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Water consumption per run | 2,50 l |
Capacity
| Tank capacity | 20 l |
|---|---|
| Boiler capacity | 9 l |
Connected load
| Power | 6,52 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 106 kg |
| Net weight | 89,10 kg |
Download / Exploded drawing
