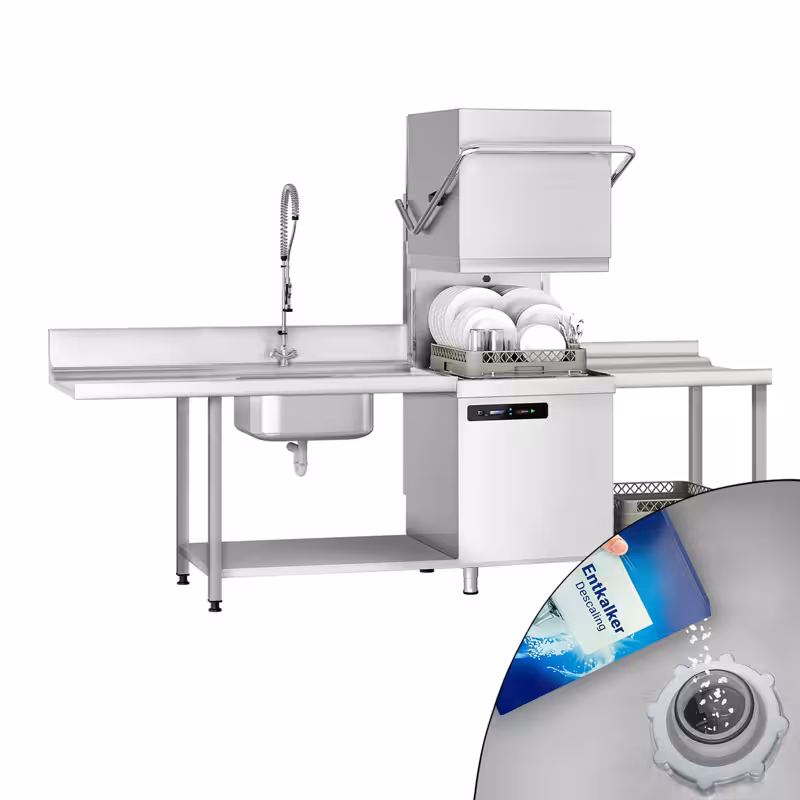

Pass Through Dishwasher - Digital Controls - 7.1kW - incl. Inlet Table left, Outlet Table right - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
** The picture may slightly differ from the original.

** The picture may slightly differ from the original.
Pass Through Dishwasher - Digital Controls - 7.1kW - incl. Inlet Table left, Outlet Table right - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and reliable quality.
- Automatic wash cycle start: Saves time by starting independently after closing the hood.
- Adjustable running rails: Allow flexible loading and unloading of baskets on all sides.
- Flexible table placement: Inlet and outlet tables can also be positioned at an angle, facilitating installation.
- Special rinsing system with insulated boiler: Maintains temperature and rinse water pressure consistently for optimal cleaning results.
- Integrated descaling system: Eliminates the need for external descalers, reducing maintenance effort.
- Built-in stand-by system: Saves energy through automatic shutdown during idle periods.
Description
Efficient pass-through dishwasher for professional use
The pass-through dishwasher with 7.1 kW power is ideal for use in gastronomy and large kitchens. It impresses with its double-walled construction, which ensures optimal insulation and energy efficiency. With an integrated inlet table on the left and outlet table on the right, it offers an ergonomic workflow and significantly eases the washing process. This freestanding unit is specially designed for cleaning dishes and pots, supporting a fast and hygienic workflow.
High-quality equipment and well-thought-out technology
The body and tables are made of high-quality AISI 304 stainless steel, guaranteeing durability and easy cleaning. Equipped with two wash arms and two rinse arms, the machine enables thorough and effective cleaning. The double filter system in the washing chamber protects the pumps from blockages and ensures consistently high washing quality. The electromechanical control is maintenance-free and ensures reliable operation. Additionally, the machine features electric pumps for detergent, rinse aid, and caustic soda, ensuring precise dosing.
Conclusion and areas of application
This digital pass-through dishwasher is perfectly suited for businesses seeking a robust, powerful, and hygienic solution for the dishwashing area. It stands out due to its efficient cleaning technology and ease of use thanks to the safety door opening system. It is ideal for restaurants, canteens, and catering companies that need to clean large quantities of dishes and cookware quickly and reliably. This machine significantly eases dishwashing tasks and increases operational safety.
Installation & Operation
- Information about the mains voltage can be found in the operating manual.
- Please note that the appliance can be operated with both a hot water connection and a cold water connection.
- The values of the wash programmes can only be guaranteed with a hot water connection.
- A detailed guide can be found under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If you have installed a descaler upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Overall dimensions
| Width | 2.855 mm |
|---|---|
| Depth | 785 mm |
| Height closed | 1.480 mm |
| Height open | 1.930 mm |
Dimensions per item
| Dimensions push-through dishwasher W x D x H | 655 mm x 785 mm x 1.480 mm |
|---|---|
| Dimensions of feeder table W x D x H | 1.200 mm x 700 mm x 850 mm |
| Dimensions dish spray W x D x H | 140 mm x 600 mm x 1.070 mm |
| Dimensions discharge table W x D x H | 1.000 mm x 520 mm x 865 mm |
| Basin dimensions W x D x H | 500 mm x 400 mm x 260 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Insertion height | 430 mm |
|---|
Water connection
| Water inlet | 3/4" |
|---|---|
| Water outlet | Ja |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 405 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 30 l |
|---|---|
| Boiler capacity | 7 l |
Connected load
| Power | 7,10 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N~/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 190 kg |
| Net weight | 161 kg |
Download / Exploded drawing
