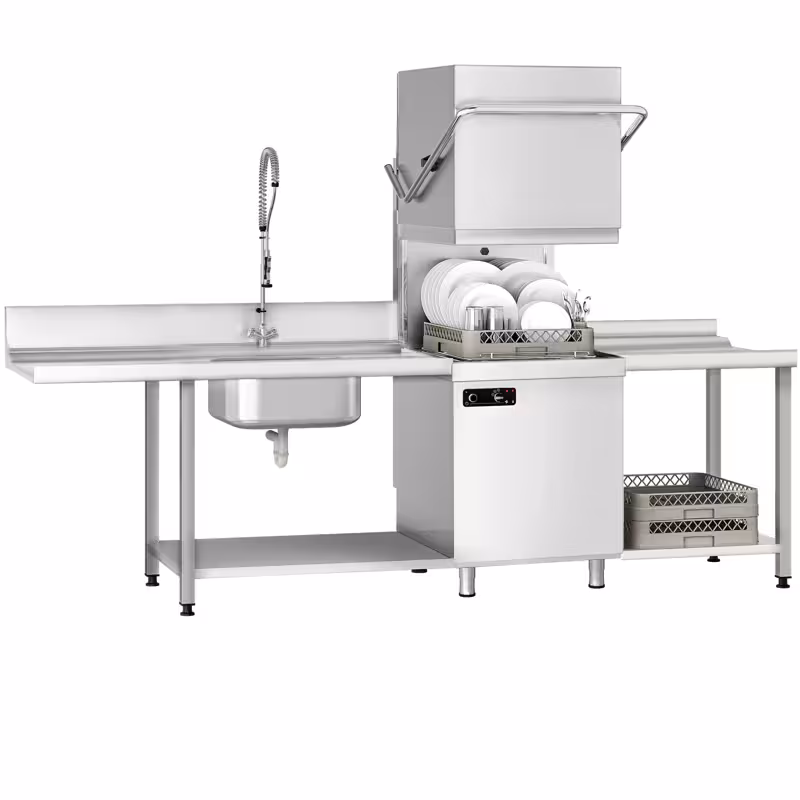

Pass-through dishwasher - 6.52 kW - incl. inlet & outlet table right - with detergent & rinse aid pump

SKU DS430E#SET-RInsertion height: 430mm
Rate now

** The picture may slightly differ from the original.

2.689,99 € *
RRP €5,199.99
Available from 04.10.2026
Free delivery**
Print* net price | gross price incl. 0% VAT.: €2,689.99

** The picture may slightly differ from the original.

Accessories (17)
Spare Parts (9)

Product Advantages

  • Made in Italy: Stands for high-quality workmanship and durable quality.
  • Automatic wash cycle start: Saves time and simplifies the operation process by starting after closing the lid.
  • Adjustable running rails: Allow flexible adjustment for the inflow and outflow of baskets from all sides.
  • Flexible table placement: Inflow and outflow tables can also be positioned at an angle, allowing optimal use of space.

Description

Product Overview

The pass-through dishwasher is a manually operated dishwasher with a power output of 6.52 kW. It is specially designed for professional use in the gastronomy sector or large-scale kitchens and offers optimal workflow organisation thanks to the integrated infeed table on the left and outfeed table on the right. The appliance is ideal for washing dishes and pots and impresses with its robust construction made of high-quality AISI 304 stainless steel.

Product Details

The machine features two wash arms for particularly effective cleaning as well as two rinse arms, which ensure a streak-free rinsing result. The electric rinse aid dispenser and the detergent pump guarantee precise dosing of the cleaning agents. The washing chamber is equipped with a dual filtration system that prevents blockages and enhances hygiene. The electromechanical control is maintenance-free and ensures reliable operation. Additionally, the door opening is equipped with a safety system that makes operation safer.

Conclusion and Areas of Application

This pass-through dishwasher is perfectly suited for businesses that require a powerful and durable dishwasher. It combines efficient cleaning with robust technology and easy handling. It provides fast and hygienic washing results, especially in restaurants, canteens, and large-scale kitchens. Thanks to the high-quality materials and reliable technology, it is a sustainable investment for professional kitchen operations.

Installation & Operation

  • Information about the mains voltage can be found in the operating manual.
  • Please note that the appliance can be operated with both a hot water connection and a cold water connection.
  • The values of the wash programmes can only be guaranteed with a hot water connection.
  • A detailed guide can be found under the "Download" and "Video" tabs.

Cleaning & Maintenance

  • For smooth washing, we recommend regularly descaling the appliance and its components!
  • If you have a descaler installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
  • The actual maximum flow rate depends on the water hardness.
  • Suitable only for chlorine-free detergents.

Technical data

Overall dimensions

Width 2.855 mm
Depth 785 mm
Height closed 1.480 mm
Height open 1.930 mm

Dimensions per item

Dimensions push-through dishwasher W x D x H 655 mm x 785 mm x 1.480 mm
Dimensions of feeder table W x D x H 1.200 mm x 700 mm x 850 mm
Dimensions dish spray W x D x H 140 mm x 600 mm x 1.070 mm
Dimensions discharge table W x D x H 1.000 mm x 520 mm x 865 mm

Basket dimensions

Width 500 mm
Depth 500 mm

Flushing process

Rinse program 1 Rinse time 75s at max 48 Baskets/h
Rinse program 2 Rinse time 120s at max 30 Baskets/h
Rinse program 3 Rinse time 180s at max 20 Baskets/h

Water connection

Water inlet 3/4"
Water outlet Ja

Details

Wash temperature 55 °C
Rinse temperature 85 °C
Water consumption per run 2,50 l
Basin dimensions W x D x H 500 mm x 400 mm x 260 mm
Insertion height 430 mm
Max. Crockery height 405 mm

Capacity

Tank capacity 20 l
Boiler capacity 7 l

Connected load

Power 6,52 kW
Voltage 400V
Phase(s) 3N~/PE

Delivery

Shipping method Haulage
Delivered as Mounted
Gross weight 190 kg
Net weight 146 kg

Download / Exploded drawing
