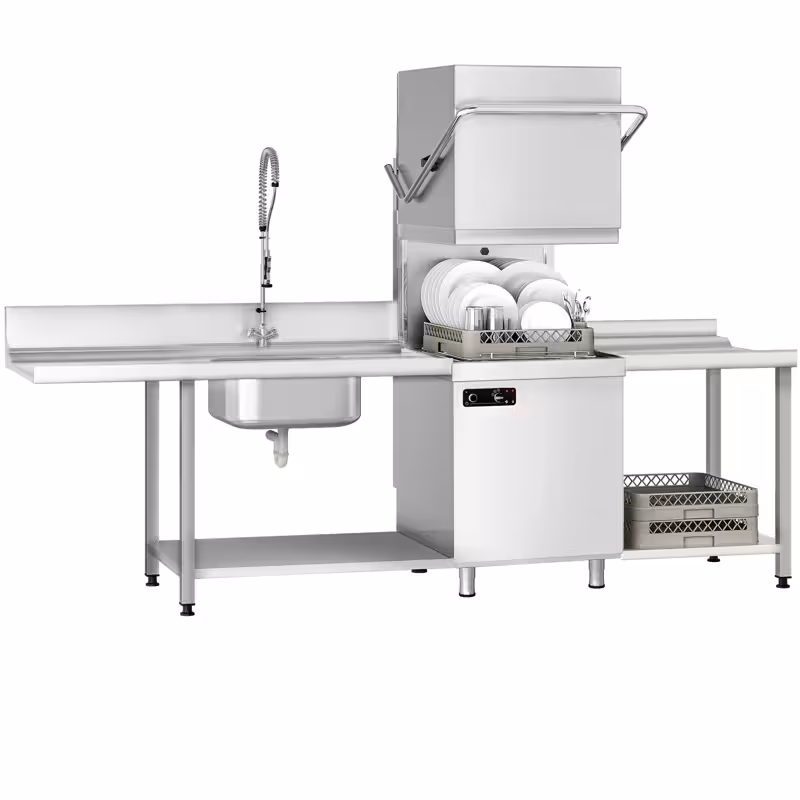

Pass-through dishwasher - 6.52 kW - incl. inlet table left & outlet table right - with detergent, rinse aid & drain pump
** The picture may slightly differ from the original.

** The picture may slightly differ from the original.
Pass-through dishwasher - 6.52 kW - incl. inlet table left & outlet table right - with detergent, rinse aid & drain pump
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and reliable quality, ensuring a long service life.
- Automatic start of the wash cycle: The washing process begins immediately after closing the hood, allowing for efficiency and time savings.
- Adjustable running rails: Allow flexible inlet and outlet options for the baskets, facilitating adaptation to different workflows.
- Inlet and outlet tables flexibly placeable: Enables corner arrangements as well, supporting integration into various kitchen layouts.
Description
Product Overview
The conveyor dishwasher with 6.52 kW power is a robust freestanding unit, ideal for professional use in the gastronomy sector. It features a left inlet table and right outlet table, which optimise workflow and facilitate loading and unloading. With its manual operation, it offers a reliable and efficient cleaning solution for dishes and pots.
Product Details
This dishwasher is equipped with two wash arms and two rinse arms that ensure thorough cleaning. The wash chamber has a double filter system that effectively retains dirt and extends the machine’s lifespan. The electric detergent, rinse aid, and caustic pumps ensure precise dosing and optimal washing results. The body and tables are made of high-quality AISI 304 stainless steel, providing long durability and easy cleaning. An integrated door opening safety system guarantees safe operation.
Conclusion and Areas of Application
This conveyor dishwasher is perfectly suited for catering businesses, canteens, and large kitchens that prioritise fast and thorough cleaning. Thanks to its powerful pumps and high-quality materials, it impresses with durability and efficiency. The combination of inlet and outlet tables supports a smooth washing process. Overall, this unit offers a professional solution for daily washing requirements in high-traffic kitchens.
Installation & Operation
- Information about the mains voltage can be found in the operating manual.
- Please note that the appliance can be operated with both a hot water connection and a cold water connection.
- The values of the wash programmes can only be guaranteed with a hot water connection.
- A detailed guide can be found under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For smooth washing, we recommend regularly descaling the appliance and its components!
- If you have a descaler installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free detergents.
Technical data
Overall dimensions
| Width | 2.855 mm |
|---|---|
| Depth | 785 mm |
| Height closed | 1.480 mm |
| Height open | 1.930 mm |
Dimensions per item
| Dimensions push-through dishwasher W x D x H | 655 mm x 785 mm x 1.480 mm |
|---|---|
| Dimensions of feeder table W x D x H | 1.200 mm x 700 mm x 850 mm |
| Dimensions dish spray W x D x H | 140 mm x 600 mm x 1.070 mm |
| Dimensions discharge table W x D x H | 1.000 mm x 520 mm x 865 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Flushing process
| Rinse program 1 | Rinse time 75s at max 48 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120s at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180s at max 20 Baskets/h |
Water connection
| Water inlet | 3/4" |
|---|---|
| Water outlet | Ja |
Details
| Wash temperature | 55 °C |
|---|---|
| Rinse temperature | 85 °C |
| Water consumption per run | 2,50 l |
| Basin dimensions W x D x H | 500 mm x 400 mm x 260 mm |
| Insertion height | 430 mm |
| Max. Crockery height | 405 mm |
Capacity
| Tank capacity | 20 l |
|---|---|
| Boiler capacity | 9 l |
Connected load
| Power | 6,52 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N~/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 155 kg |
| Net weight | 146 kg |
Download / Exploded drawing
