• Suitable for ventilation ducts (exhaust air)
• Not suitable for fresh air intake

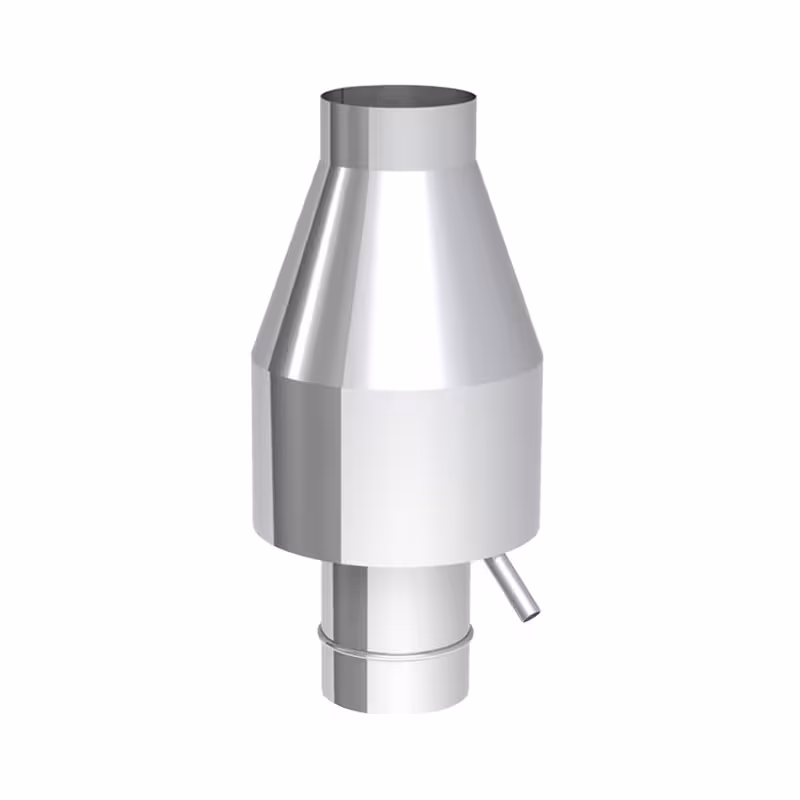

Efficient Exhaust Air Extraction with Deflector Hood

The deflector hood Ø 250 mm is specially designed for the extraction of polluted exhaust air from the roof area. It ensures a good mixing of fresh air and exhaust air and contributes to the dilution of pollutant-laden and unpleasant-smelling air. Thanks to its integrated rainwater protection and condensate drainage, its function is maintained even under adverse weather conditions.

Reliable Protection and Versatile Use

Made from high-quality stainless steel, the hood is temperature resistant up to 600 °C and suitable for single-wall angled ducts with a wall thickness of 0.6 mm. The outlet velocity is approximately 10-15 m/s. This product effectively prevents odour nuisance around the building and is ideal for use in exhaust air systems, but not for fresh air intake.

• Pipe diameters should always remain the same or only be reduced in a professionally planned manner. Incorrect reduction can affect the entire system.
• More detailed information on the dimensions and the technical drawings can be found under the downloads.
