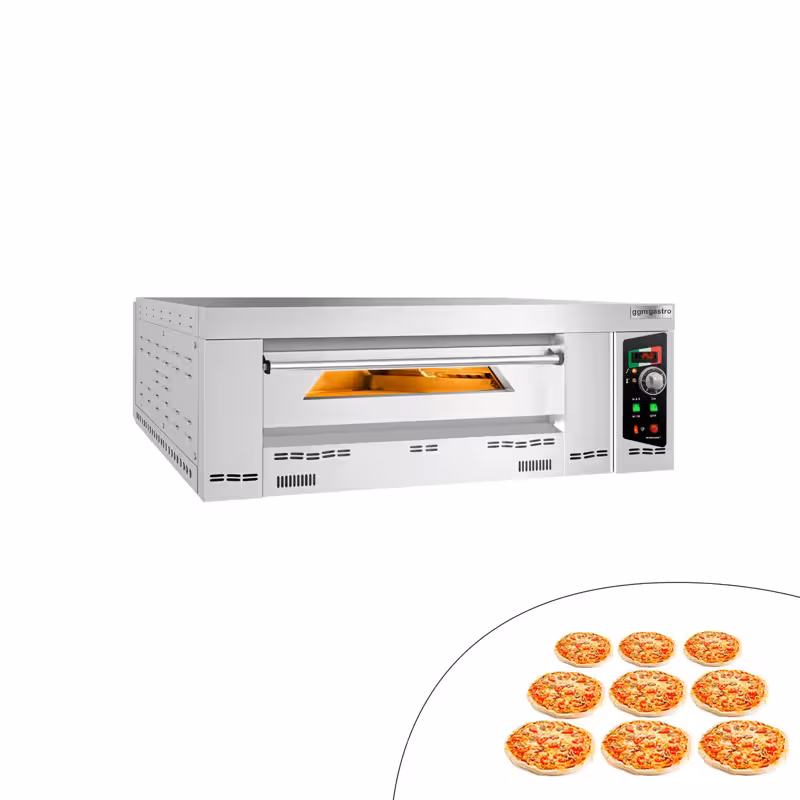

Gas Deck Pizza Oven - Single Deck - Refractory Stone Deck - 9 x Ø 34cm (13.4") - 230V Single Phase - Mechanical Controls - up to 450°C
SKU GEP9#NMax. temperature: 450 °C
Rate now
** The picture may slightly differ from the original.
Print* net price | gross price incl. 0% VAT.: €3,249.99
** The picture may slightly differ from the original.
Gas Deck Pizza Oven - Single Deck - Refractory Stone Deck - 9 x Ø 34cm (13.4") - 230V Single Phase - Mechanical Controls - up to 450°C
SKU GEP9#NMax. temperature: 450 °C
Rate now
Print* net price | gross price incl. 0% VAT.: €3,249.99
Accessories (8)
Spare Parts (8)
Product Advantages
- Made in Italy: Guarantees high-quality craftsmanship and authentic quality.
- Easy operation via analogue rotary controls: Allows intuitive control without complicated technology.
- Top and bottom heat adjustable separately: Provides precise temperature control for perfect baking results.
Description
Efficient Gas Pizza Oven for the Hospitality Industry
This gas pizza oven is specially designed for professional use in the hospitality industry. With nine baking chambers for 34 cm pizzas each, it allows for high capacity and fast preparation of multiple pizzas simultaneously. The manual operation ensures easy handling and precise control during the baking process. This oven is ideally suited for pizzerias, restaurants, and fast-food establishments that value quality and efficiency.High-Quality Equipment and Safety
The oven features a heat-insulated housing with fibreglass insulation, ensuring optimal heat retention and low energy consumption. A safety thermocouple monitors the flame and automatically shuts off the gas supply if the flame goes out – an important safety mechanism for professional operation. The internal lighting and extra-large viewing window allow constant monitoring of the baking process, while the integrated emergency stop switch provides additional safety.Conclusion and Areas of Application
This gas pizza oven impresses with its efficient performance and high safety, making it an indispensable appliance in any hospitality setting. It is ideal for use in pizzerias, catering businesses, and hospitality operations that need to bake large quantities of pizza quickly and evenly. With its low energy consumption and robust construction, it offers a reliable solution for professional daily use.Installation & Operation
- ⚠️ Please note that all gas appliances must be connected by a professional
- ⚠️ The use of an extraction system is recommended to ensure optimal performance and best use of the product
- ⚠️ Please ensure a minimum distance of 15 cm is maintained from rear and side walls or adjacent large appliances
- ⚠️ Remove all packaging material. Make sure that the polystyrene in the baking chamber and under the firebricks is completely removed
- Before first use, the oven must be seasoned. To do this, increase the temperature by 50°C every 30 minutes until the maximum temperature is reached
- Heat the oven at maximum temperature for 4 hours, leaving the door open to allow toxic fumes to escape
Cleaning & Maintenance
- We recommend regularly cleaning the firebrick with a brass brush to remove baking residues and thus prevent smoke development
- Do not clean firebricks with moisture, as this can cause stress cracks
Technical data
Dimensions
| Width | 1.480 mm |
|---|---|
| Depth | 1.260 mm |
| Height | 470 mm |
Internal dimensions
| Width | 1.050 mm |
|---|---|
| Depth | 1.050 mm |
| Height | 150 mm |
Details
| Number of chambers | 1 Baking Chamber |
|---|---|
| Pizzas per chamber | 9 |
| For pizzas measuring | 34 cm across |
Cooking system
| Heating system | Bottom heat |
|---|---|
| Temperature up to | 450 °C |
Connected load
| Connection | Gas |
|---|---|
| Gas connection | 1/2 Zoll |
| Gas consumption | 2x 2,85 m³/h |
| Power | 29 kW |
Connected loads Operating elements
| Connection | Electrical |
|---|---|
| Voltage | 230V |
| Frequency | 50 Hz |
| Phase(s) | 1N~/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 224 kg |
| Net weight | 196 kg |
Download / Exploded drawing
Download / Exploded drawing
Safety and disposal instructions
Safety and disposal instructions
Download / Exploded drawing
Safety and disposal instructions
