• Made in Italy: Stands for high-quality workmanship and tested quality, ensuring long service life and reliability.
• Filtration & Deodorisation: Effectively removes unwanted odours and pollutants from the air, ensuring a pleasant and healthy indoor climate.

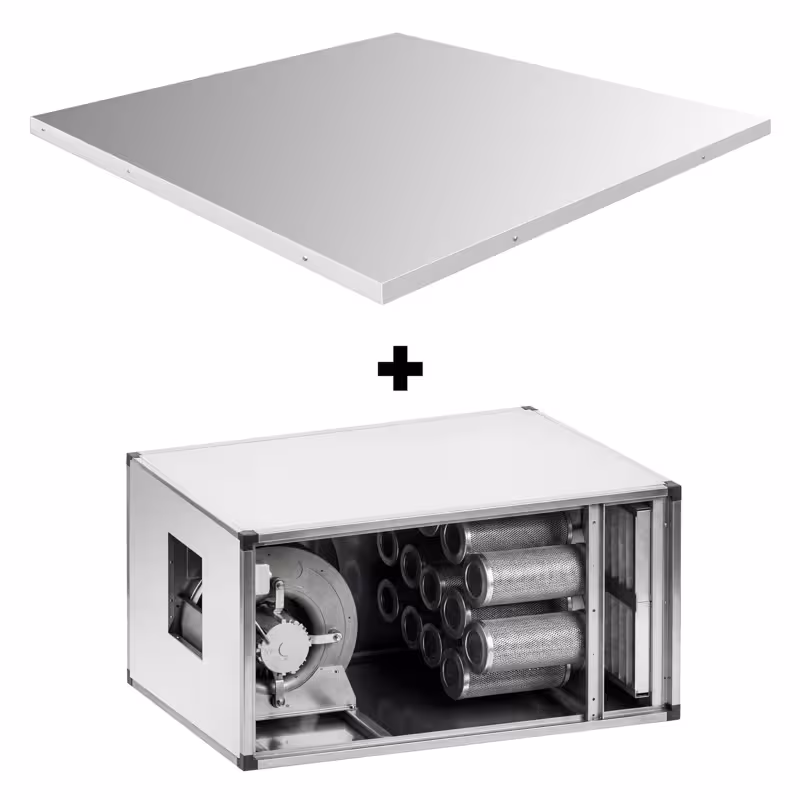

Efficient Exhaust Air Cleaning for Outdoor Use

This exhaust air purification system with motor impresses with its high capacity of 4,400 m³, enabling effective air cleaning over large areas. It is specially designed for outdoor use and, thanks to the integrated protective panel, ensures reliable and weatherproof operation. The combination of pre-filters and activated carbon filters guarantees thorough cleaning of the exhaust air with a separation efficiency of 70%, effectively reducing pollutants and odours.

Robust Construction and Energy-Saving Technology

The system features a low-noise and sound-insulated casing, made from high-quality materials both inside and out: internally with galvanised steel sheet and externally with stainless steel. The frame construction of aluminium profiles provides stability and durability. Additionally, the low energy consumption ensures environmentally friendly and cost-efficient operation. A square air outlet optimises airflow and supports the overall performance of the system.

Conclusion and Areas of Application

This exhaust air purification system is ideal for industrial and commercial applications where large volumes of air must be reliably cleaned. It is particularly suitable for production facilities, workshops, or other areas with high air quality requirements. The combination of efficient filter technology, robust protection, and energy-saving motorisation makes it the perfect solution for sustainable and high-performance exhaust air cleaning.

• To prevent possible damage to the motor and/or the device, it is essential to connect the thermal protection to the speed controller, provided that the wiring diagram shows two lines designated for this purpose.
• In single-phase motors, the thermal protection is often integrated into the motor, so no external connections to the speed controller are required.
• Before commissioning the fan and/or device, always carefully check the electrical connections. These may be located on the fan/device itself or in the junction box.
• Damage caused by faulty electrical connections is excluded from the warranty.
• Only original spare parts guarantee the specified performance values regarding efficiency, air volume flow, and pressure.
• The use of non-original components that impair the proper functioning of the device is excluded from the warranty.
