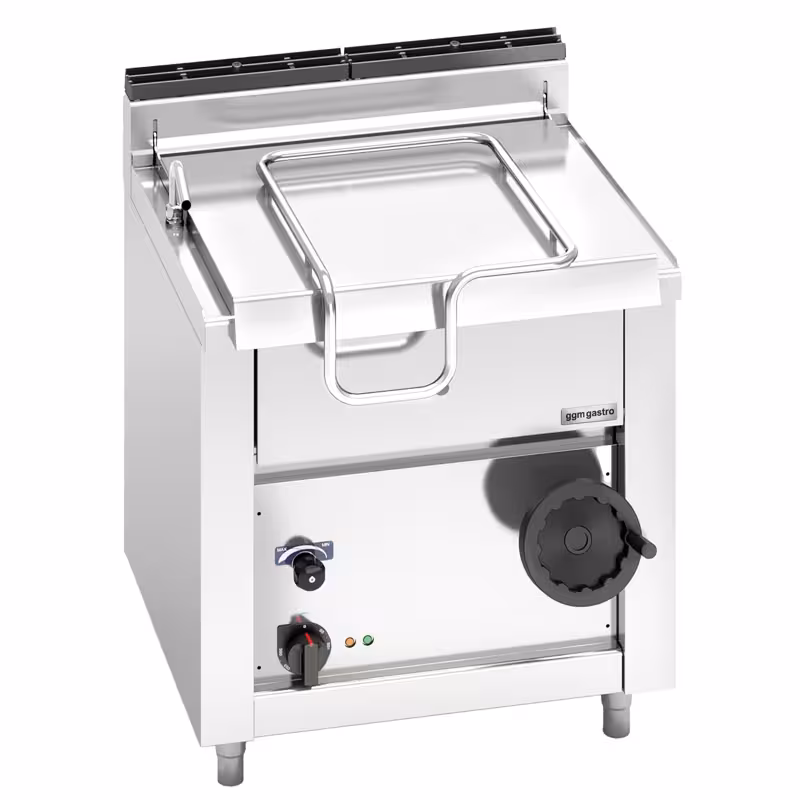

Electric Bratt Pan - 45L - 9kW
SKU EBB879HFloor-standing unit - 700 Deep
** The picture may slightly differ from the original.

Print* net price | gross price incl. 0% VAT.: €3,419.99
** The picture may slightly differ from the original.
Electric Bratt Pan - 45L - 9kW
SKU EBB879HFloor-standing unit - 700 Deep
Print* net price | gross price incl. 0% VAT.: €3,419.99
Accessories (3)
Spare Parts (9)
Product Advantages
- Made in Italy: Stands for high-quality craftsmanship and durable quality.
- All-rounder: Replaces several appliances and enables versatile cooking such as frying, braising, boiling, and steaming.
- Mass production expert: Prepares large quantities in just one go, saving time and effort.
- Easy pouring: The tilting function makes emptying easier without heavy lifting.
Description
- Actual filling capacity: 45 l
- Filling and rinsing tap for the container
- Ventilation of cooking vapours via integrated chimney
- Ceramic microbead non-stick coating
- Compatible with other products in the "Lorenzo 700" series
Efficient electric tilting frying pan for professional use
The electric tilting frying pan with a volume of 60 litres and a power output of 9 kW is ideal for professional kitchen operations. Thanks to the indirect heating and the ceramic microbead non-stick coating, it ensures optimal heat distribution and easy cleaning. The body made of high-quality AISI 304 stainless steel as well as the base made of AISI 316 stainless steel guarantee durability and hygiene. A self-balancing hinge and a tilt angle of up to 80° allow comfortable tilting and emptying.Versatility and safety in the commercial kitchen
With an integrated water tap for filling and rinsing and ventilation of cooking vapours via the chimney, the pan offers high ease of use. The height-adjustable stainless steel feet ensure a secure stand, while the safety thermostat and the operation control light provide reliable operation. Compatible with other products in the "Lorenzo 700" series, it is perfect for professional gastronomy and large-scale kitchens.Installation & Operation
- ⚠️ Please note that all equipment with three-phase power connection must be installed by a professional
Cleaning & Maintenance
- Allow the pan to cool down to approximately 50 °C to 60 °C before cleaning to avoid material damage (cracks/warping) caused by extreme temperature shocks.
- Soak crusts with warm water. Do not use steel wool or knives; use only soft sponges, brushes, or plastic scrapers.
- After cleaning, thoroughly remove all detergent and cleaner residues with clear water to ensure that nothing contaminates the food during the next cooking process.
- Clean the spout, lip, and lid seals particularly thoroughly, as germs and grease residues tend to accumulate there.
- Never rinse the appliance with a high-pressure cleaner or a strong water jet (risk to electrical/mechanical components) and leave the lid slightly open after cleaning to dry.
Technical data
Dimensions
| Width | 800 mm |
|---|---|
| Depth | 714 mm |
| Height | 1.041 mm |
Pan dimensions
| Width | 575 mm |
|---|---|
| Depth | 475 mm |
| Height | 200 mm |
Details
| Actual filling quantity | 45 l |
|---|---|
| Frying surface | 2.750 cm² |
| Temperature | 100 °C to 300 °C |
Connected load
| Connection | Electrical |
|---|---|
| Power | 9 kW |
| Output per 24 hours | 2,7 kW |
| Voltage | 400V |
| Frequency | 50 Hz |
| Average consumption | |
| Propane gas (G30 / G31) | 1,14 kg/h |
| Natural gas H (G20) | 1,53 m³/h |
| Natural gas L (G25) | 1,79 m³/h |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 143 kg |
| Net weight | 127,50 kg |
Download / Exploded drawing
Download / Exploded drawing
Download / Exploded drawing
