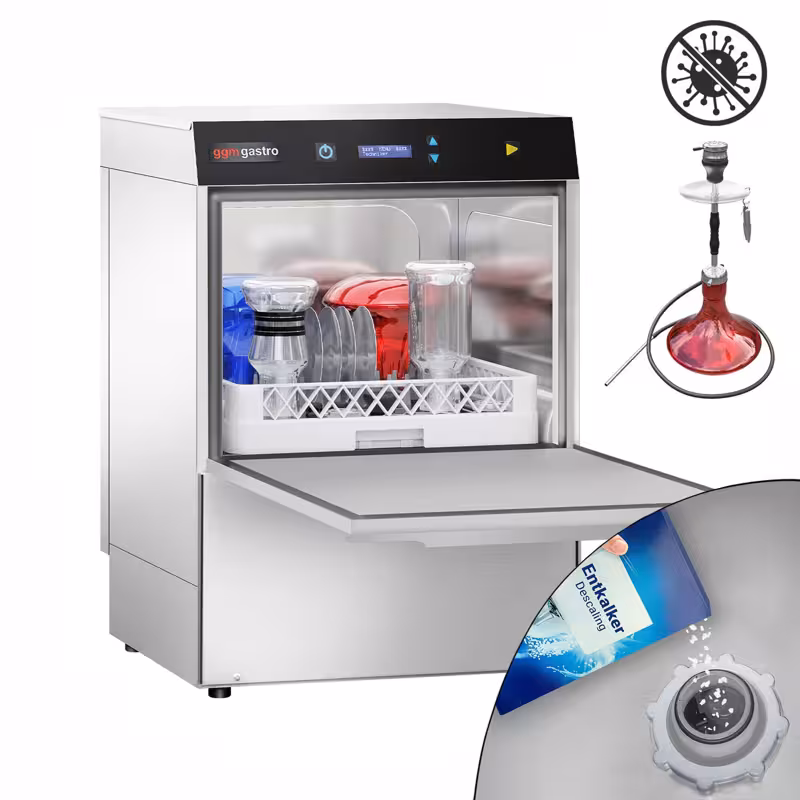

Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 4.9kW - with Drain, Rinse Aid & Detergent Pumps
** The picture may slightly differ from the original.

** The picture may slightly differ from the original.
Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 4.9kW - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Made in Italy: Stands for high-quality craftsmanship and reliable quality.
- Integrated descaling system: Eliminates the need for external descalers, saving effort and costs.
- Double-walled insulation: Effectively reduces noise levels and minimises heat radiation.
- High rinse temperature of 90°C: Thoroughly removes bacteria and ensures optimal hygiene.
Description
Product Overview
The double-walled SHISHA dishwasher is a specially designed undercounter unit that impresses with a power output of 4.9 kW. It is ideal for the thorough cleaning of shishas and other delicate tableware. The digital control panel with LCD display allows easy operation of the four available programmes. With its extra-large loading height, the machine provides ample space for a variety of parts.
Product Details
The dishwasher features a special washing chamber for shisha cleaning, ensuring optimal cleaning results. The double-walled housing guarantees excellent insulation and noise reduction. Equipped with a laundry pump that pumps wastewater over a height difference into the drain connection, it offers efficient disposal. Additionally, detergent and rinse aid pumps ensure automatic and precise dosing of cleaning agents.
Conclusion and Areas of Application
Thanks to its robust construction from high-quality stainless steel and the well-designed double filter system, this dishwasher is particularly durable and low-maintenance. It is perfectly suited for professional use in shisha bars, catering establishments, or private households that place special emphasis on gentle and thorough cleaning. With its high washing performance and specialised functions, it is the ideal solution for hygienic and time-saving cleaning of shishas and similar items.
Installation & Operation
- Information about the mains voltage can be found in the operating instructions.
- Please note that the diameter of the hookah stem should ideally be between 26 mm and 36 mm.
- Please note that this device requires a cold water connection.
Cleaning & Maintenance
- For smooth rinsing, the device and components should be descaled with the connected descaler!
- If you have installed a descaler upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Dimensions
| Width | 582 mm |
|---|---|
| Depth | 610 mm |
| Height | 822 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 405 mm |
|---|
Water connection
| Water inlet | 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Sound level | 62 dB |
| Max. Crockery height | 320 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 120 Sekunden Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|
Connected load
| Power | 4,90 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 68 kg |
| Net weight | 65 kg |
Download / Exploded drawing
