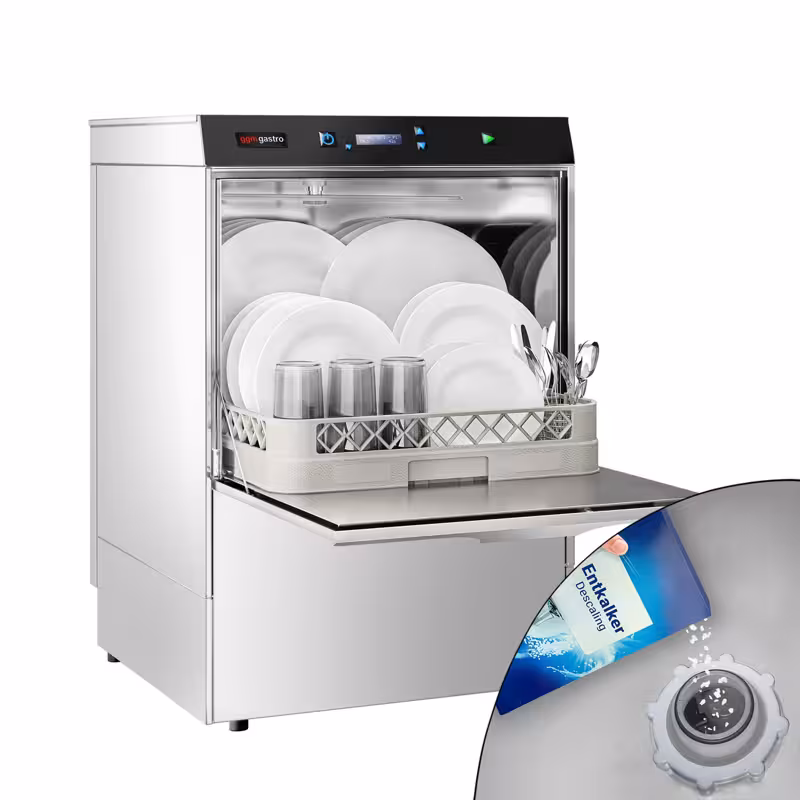

Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Integrated Water Softener - with Drain, Rinse Aid & Detergent Pumps
** The picture may slightly differ from the original.

** The picture may slightly differ from the original.
Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Integrated Water Softener - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Made in Italy: Stands for high-quality workmanship and reliable quality.
- Integrated descaling system: Eliminates the need for external descalers, saving effort and costs.
- Double-walled insulated walls: Significantly reduce noise levels and minimise heat radiation.
Description
Product Overview
The double-walled dishwasher is a robust undercounter unit ideally suited for professional use in gastronomy and large-scale kitchens. With a power consumption of 3.9 kW, it delivers powerful cleaning while maintaining efficient energy use. The electronic control panel with LCD display allows for simple and intuitive operation of the machine.
Product Details
Equipped with two wash arms for particularly thorough cleaning, the machine ensures excellent washing results. The combination of alkaline, detergent, and rinse aid pumps guarantees optimal dosing of cleaning agents. The washing chamber features a double filter system that reliably captures impurities and improves hygiene. The rotating, non-clogging wash and rinse arms ensure even water distribution. The door opening is equipped with a safety system that enhances user comfort and safety.
Conclusion and Areas of Application
This dishwasher impresses with its high washing performance and easy operation, making it an indispensable assistant in the professional kitchen. Thanks to the high-quality stainless steel housing, the unit is particularly durable and resilient. The machine is perfectly suited for restaurants, canteens, and catering businesses that value fast and hygienic cleaning. The integrated descaling function facilitates maintenance and extends the service life.
Installation & Operation
- Information about the mains voltage can be found in the operating instructions.
- Please note that a cold water connection is required for this appliance.
- A detailed manual is available under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For smooth rinsing, the device and components should be descaled with the connected descaler!
- If you have installed a descaler upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Dimensions
| Width | 582 mm |
|---|---|
| Depth | 610 mm |
| Height | 822 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 340 mm |
|---|
Water connection
| Water inlet | 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 320 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|
Connected load
| Power | 3,90 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Forwarding agent |
|---|---|
| Delivered as | Mounted |
| Net weight | 64 kg |
Download / Exploded drawing
