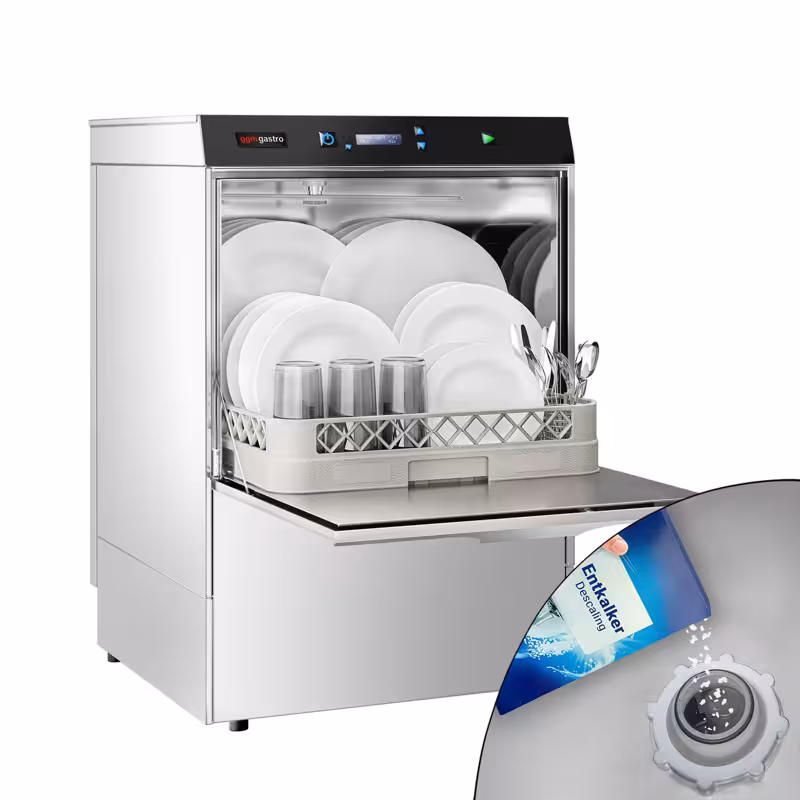

Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Integrated Water Softener - with Detergent & Rinse Aid Dosing Pumps
** The picture may slightly differ from the original.

** The picture may slightly differ from the original.
Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Integrated Water Softener - with Detergent & Rinse Aid Dosing Pumps
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and reliable quality, which supports the machine's durability.
- Integrated descaling system: Requires no external descaler, reducing maintenance effort and saving costs.
- Double-walled insulation: Significantly lowers noise levels and reduces heat emission, enhancing user comfort and improving energy efficiency.
Description
Product Overview
The double-walled dishwasher is a robust and high-quality stainless steel appliance specifically designed for professional use. With a power output of 3.9 kW, it ensures efficient and powerful cleaning. The appliance is designed as an under-counter unit and offers improved insulation and noise reduction thanks to its double-walled construction.
Product Details
The dishwasher features an electronic control panel with LCD display, allowing user-friendly operation. With four programmes and two rotating wash arms, effective and thorough cleaning is guaranteed. An integrated water softener protects the appliance from limescale build-up and ensures a long service life. The detergent and rinse aid pump with electronic dosing guarantees optimal distribution of cleaning agents. Additionally, the door opening safety system ensures safe operation.
Conclusion and Areas of Application
This dishwasher is ideal for use in gastronomy, large kitchens, or other commercial areas where high washing performance and reliability are required. Thanks to its high washing capacity and the dual filter system in the wash chamber, excellent cleaning results are achieved. The combination of robust stainless steel, modern technology, and practical functions makes this appliance the perfect solution for professional users.
Installation & Operation
- Information about the mains voltage can be found in the operating instructions.
- Please note that a cold water connection is required for this appliance.
- A detailed manual is available under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Dimensions
| Width | 582 mm |
|---|---|
| Depth | 610 mm |
| Height | 822 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 340 mm |
|---|
Water connection
| Water inlet | 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 320 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|
Connected load
| Power | 3,90 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 66 kg |
| Net weight | 57,60 kg |
Download / Exploded drawing
