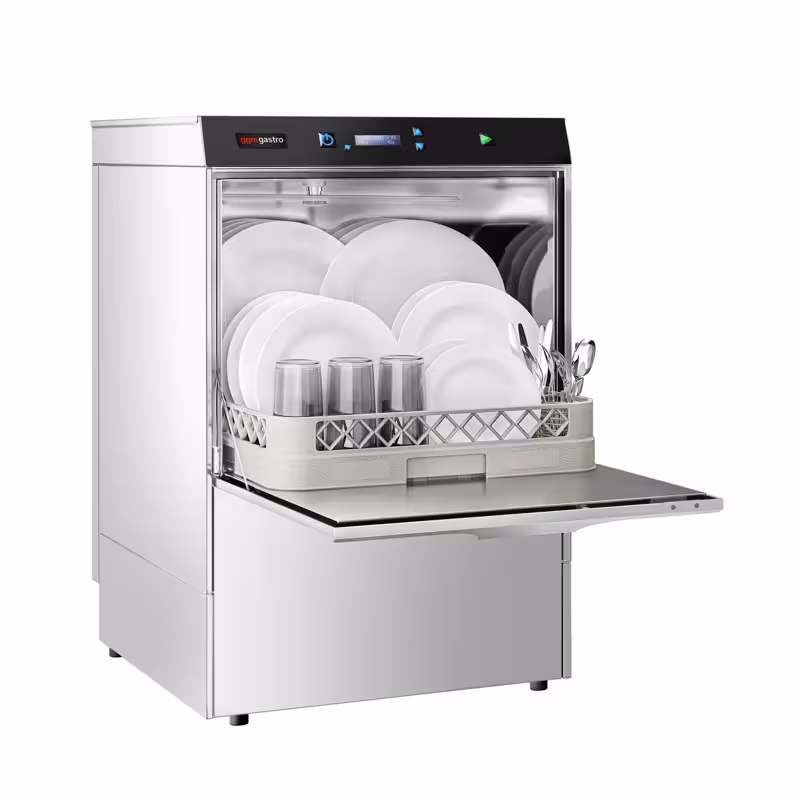

Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Drain, Rinse Aid & Detergent Pumps
** The picture may slightly differ from the original.

** The picture may slightly differ from the original.
Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Made in Italy: Stands for high-quality workmanship and quality, supporting the machine's durability and reliability.
- Electronic control panel with LCD display: Allows for simple and intuitive operation, significantly enhancing user-friendliness.
- Double-walled insulated walls: Reduce noise levels and minimise heat radiation, creating a more pleasant working environment.
Description
Product Overview
The double-walled dishwasher is a high-quality undercounter unit specifically designed for professional use. With a power output of 3.9 kW, it delivers powerful and efficient cleaning. The appliance features a digital control and is equipped with detergent, rinse aid, and alkali pumps to ensure optimal washing quality.
Product Details
The machine operates with two wash arms that guarantee effective cleaning. The rotating, non-clogging wash and rinse arms provide an even distribution of water and cleaning agents. A dual filtration system in the wash chamber ensures a clean wash result and protects the pumps. The electric detergent supply and electric rinse aid dosing pump allow precise dosing for the best results.
The unit is made of high-quality stainless steel, making it particularly robust and durable. The door opening is equipped with a safety system that enhances operational safety. With four programmes, the dishwasher can be flexibly adjusted to different levels of soiling. The alkali pump pumps waste water over a height difference into the drain connection, which simplifies installation.
Conclusion and Areas of Application
This double-walled dishwasher is ideal for gastronomy, large kitchens, and other commercial areas where high washing performance and reliability are required. It impresses with its robust construction and excellent cleaning results. Thanks to the versatile programmes and automatic dosing of detergents, it is perfectly suited to quickly and hygienically clean dishes with varying degrees of soiling.
Installation & Operation
- Information about the mains voltage can be found in the operating instructions.
- Please note that a cold water connection is required for this appliance.
- A detailed manual is available under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Dimensions
| Width | 582 mm |
|---|---|
| Depth | 610 mm |
| Height | 822 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 340 mm |
|---|
Water connection
| Water inlet | 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 320 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|---|
| Boiler capacity | 5,50 l |
Connected load
| Power | 3,90 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 230V / 1N~/PE | 400V / 3N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 61 kg |
| Net weight | 54 kg |
Download / Exploded drawing
