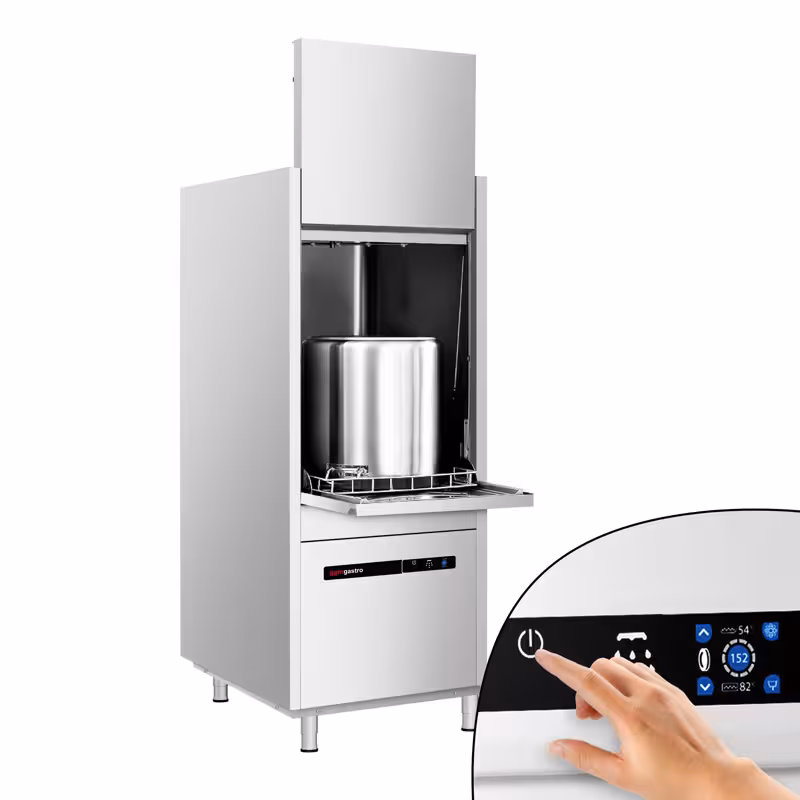

Double-Skinned Pot / Utensil Washer - Touch Control - 16.7 kW - with Detergent & Drain Pump
SKU TSOZ60Insertion height: 800mm
** The picture may slightly differ from the original.

Print* net price | gross price incl. 0% VAT.: €4,299.99
** The picture may slightly differ from the original.
Double-Skinned Pot / Utensil Washer - Touch Control - 16.7 kW - with Detergent & Drain Pump
SKU TSOZ60Insertion height: 800mm
Print* net price | gross price incl. 0% VAT.: €4,299.99
Accessories (4)
Spare Parts (2)
Product Advantages
- Intuitive touchscreen operation: Enables simple and quick control of the machine, significantly enhancing user comfort.
- Remaining time display: Provides transparent information about the remaining wash cycle at any time, facilitating planning.
- Versatile adjustment options: Allow individual adaptation of the machine to different requirements, thus improving flexibility.
- Double-walled insulation: Significantly reduces noise levels, contributing to a more pleasant working environment.
- Effective heat radiation reduction: Minimises heat loss and ensures energy-efficient use of the machine.
Description
Product Overview
The double-walled pot dishwasher is a powerful freestanding unit specifically designed for professional gastronomy. With a connection power of 16.7 kW, it offers efficient and rapid cleaning of pots and dishes. The device is ideally suited for pots with a diameter of up to 600 mm and GN 2/1 container sizes, allowing versatile applications in large-scale kitchens.Product Details and Features
The dishwasher features two wash arms and rotating, non-clogging wash and rinse arms made of high-quality stainless steel, ensuring thorough cleaning. The thermostatically controlled rinse and wash temperature guarantees optimal temperature regulation for efficient washing. Particularly noteworthy is the integrated detergent and alkali pump, which ensures effective dosing and distribution of cleaning agents. The fully sealed housing provides IPX5 water protection, allowing the unit to operate reliably even in humid conditions. Furthermore, all internal components are easily removable, greatly facilitating cleaning and maintenance.Conclusion and Areas of Application
This pot dishwasher is perfectly suited for use in large-scale kitchens, canteens, and catering operations that prioritise fast and hygienic cleaning. Combining a robust stainless steel body with state-of-the-art technology, it offers a durable and reliable solution for daily washing needs. The three programmes allow flexible adjustment to different levels of soiling and requirements. Overall, the machine impresses with its efficiency, user-friendliness, and ease of maintenance, making it the ideal choice for professional washing processes.Installation & Operation
- Information about the mains voltage can be found in the operating instructions.
- Please note that the appliance can be operated with both a hot water connection and a cold water connection.
- The values of the wash programmes can only be guaranteed with a hot water connection.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the appliance regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Dimensions
| Width | 780 mm |
|---|---|
| Depth | 950 mm |
| Height | 1.962 mm |
| Depth open | 1.336 mm |
| Height open | 2.400 mm |
Basket dimensions
| Width | 600 mm |
|---|---|
| Depth | 700 mm |
Rack height
| Height | 800 mm |
|---|
Water connection
| Water inlet | 3/4" |
|---|---|
| Water outlet | 3/4" |
Details
| Washing temperature | 55 - 60 °C |
|---|---|
| Purge temperature | 82 °C - 85 °C |
| Water pressure | min. 4 Bar to max. 6 Bar |
| Sound level | 80 dB(A) |
| Max. Crockery height | 800 mm |
Flushing process
| Rinse program 1 | Rinse time 120 at max 30 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 360 at max 10 Baskets/h |
| Rinse program 3 | Rinse time 480 at max 7,5 Baskets/h |
| Water consumption per run | 4,50 l |
Capacity
| Tank capacity | 65 l |
|---|---|
| Boiler capacity | 18 l |
Connected load
| Power | 16,70 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N~/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 268 kg |
| Net weight | 220 kg |
Download / Exploded drawing
Download / Exploded drawing
Download / Exploded drawing
