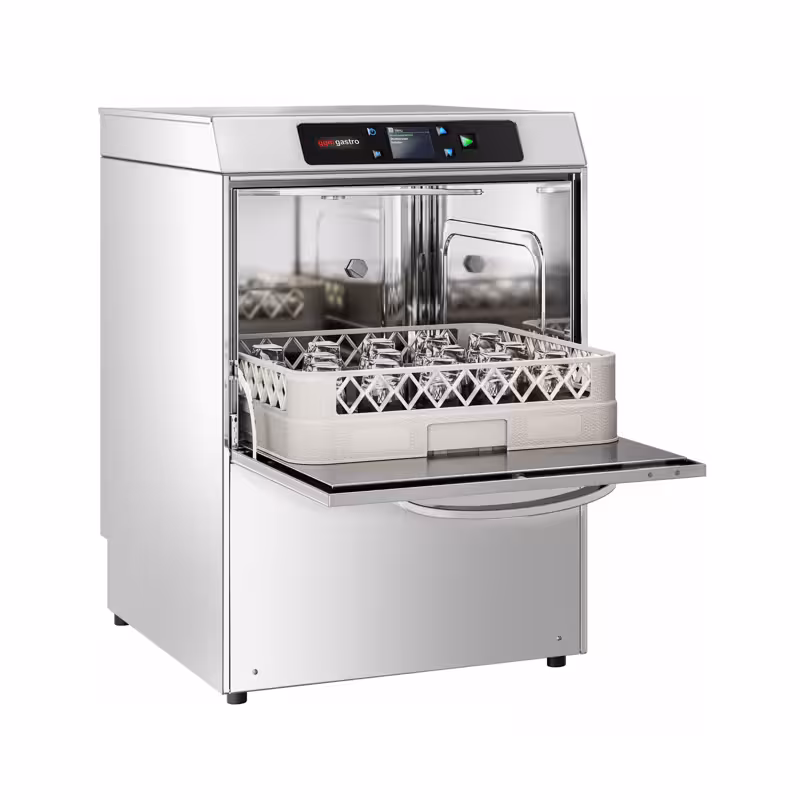

Double-skinned Compact Glasswasher - Digital - 3.4kW - with Drain Pump, Detergent & Rinse Aid Pumps & Wi-Fi Option
** The picture may slightly differ from the original.

** The picture may slightly differ from the original.
Double-skinned Compact Glasswasher - Digital - 3.4kW - with Drain Pump, Detergent & Rinse Aid Pumps & Wi-Fi Option
Product Advantages
- Made in Italy: High manufacturing quality guarantees durability and reliability of the dishwasher.
- Wi-Fi system: Enables sending text messages in case of anomalies and allows remote adjustments, facilitating maintenance.
- Electronic control with TFT colour display: Clear display of temperatures, wash cycles, and faults ensures easy operation and monitoring.
- Four adjustable wash programmes: Flexibility in cleaning various types of crockery increases efficiency.
- HY-NRG washing system with break tank and booster pump: Maintains constant temperature and wash water pressure for optimal washing results.
- Double-walled insulation: Reduces noise levels and heat emission, making operation more pleasant and energy-efficient.
Description
Product Overview
The double-walled glasswasher is a high-quality undercounter unit specifically designed for the professional cleaning of glasses. With a power output of 3.4 kW, it offers efficient and powerful washing performance. Thanks to the digital control and the Wi-Fi option, the machine can be conveniently monitored and operated remotely, significantly enhancing user comfort.
Product Details
The double-walled body made of AISI 304 stainless steel ensures optimal insulation and durability. The machine features a fully pressed tank with rounded corners and a sloped base, which facilitates cleaning and prevents deposits. For thorough cleaning, a wash arm and a rinse arm made of stainless steel are integrated; these operate with rotation and are clog-resistant. The electric detergent and rinse aid pump guarantees precise dosing of cleaning agents. Additionally, the unit is equipped with a wash chamber featuring a double filtration system that effectively retains dirt. A stand-by mode helps to save energy when the machine is not in active use.
Conclusion and Areas of Application
This glasswasher is ideal for use in gastronomy, bars, and cafés where fast and hygienic glass cleaning is required. Its robust construction and energy-saving technology make it a reliable solution for professional daily use. With the integrated Wi-Fi function, it is also future-proof, enabling modern, flexible operation.
Installation & Operation
- WI-FI module stores HACCP parameters such as cycles, temperatures, alarms. These parameters can be downloaded via a smartphone proximity connection or through a specialised website.
- Information on the mains voltage can be found in the operating manual.
- Please note that this device requires a cold water connection.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If you have installed a descaler upstream, please note that the cartridge needs to be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Dimensions
| Width | 473 mm |
|---|---|
| Depth | 539 mm |
| Height | 700 mm |
Basket dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Rack height
| Height | 290 mm |
|---|
Water connection
| Water inlet | 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Sound level | 58 dB |
| Max. Glass height | 280 mm |
Flushing process
| Water consumption per run | 2,20 l |
|---|---|
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
Capacity
| Tank capacity | 6 l |
|---|
Connected load
| Power | 3,40 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 47 kg |
| Net weight | 39 kg |
Download / Exploded drawing
