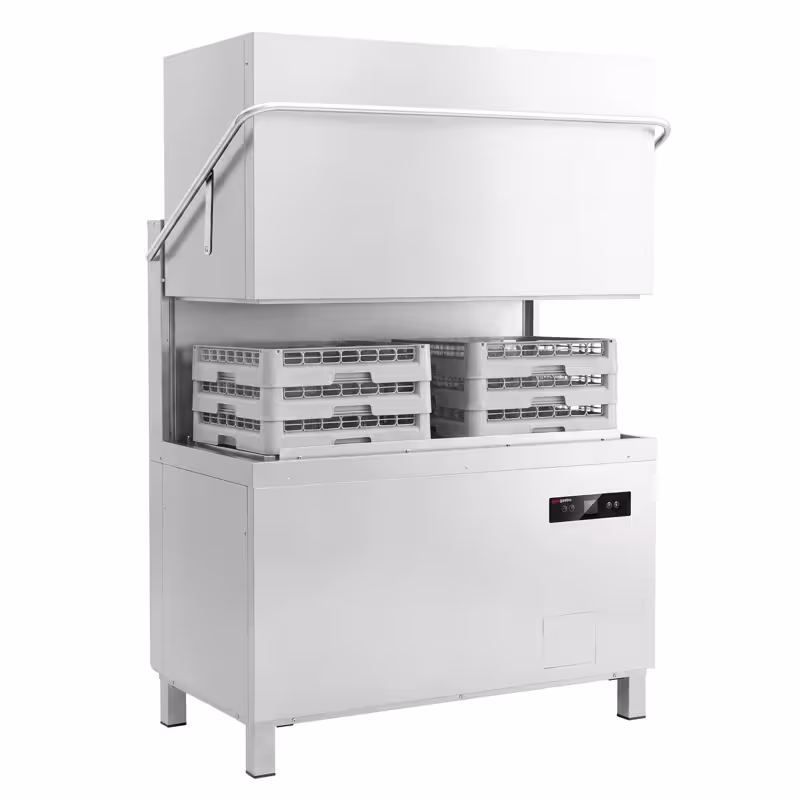

Double-Basket Pass-Through Dishwasher – Digital – 19 kW – up to 2160 plates/h -with Detergent, Rinse Aid & Drain Pumps
** The picture may slightly differ from the original.

** The picture may slightly differ from the original.
Double-Basket Pass-Through Dishwasher – Digital – 19 kW – up to 2160 plates/h -with Detergent, Rinse Aid & Drain Pumps
Product Advantages
- Automatic wash cycle start: The wash cycle starts automatically after closing the hood, enhancing user convenience and optimising workflow.
- Noise and heat reduction: The double-walled insulated panels significantly lower noise levels and effectively reduce heat emission, contributing to a more comfortable working environment.
Description
- 2 washing motors
- 4 different programmes with durations of 60, 90, 120 and 180 seconds
- Up to 2160 plates per hour
- With detergent and rinse aid pumps
- Basket dimensions: 500 × 500 mm
Efficient double-basket pass-through dishwasher for professional use
This high-quality pass-through dishwasher impresses with its robust construction featuring a stainless steel housing and durable stainless steel heating elements. The digital control panel allows for easy programme management. With two washing motors and four selectable programmes ranging from 60 to 180 seconds, it adapts flexibly to different washing requirements. The dishwasher is ideal for use in large kitchens and catering establishments.
Powerful, economical and versatile
The machine achieves a capacity of up to 2160 plates per hour while offering a low consumption of water, detergents and energy. Equipped with detergent and rinse aid pumps as well as a drain pump, it ensures thorough cleaning. The large basket dimensions of 500 × 500 mm allow for accommodating various types of crockery, significantly easing the workflow in the kitchen.
Installation & Operation
- Please note that this appliance requires a cold water connection.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Overall dimensions
| Width | 1.360 mm |
|---|---|
| Depth | 835 mm |
| Height closed | 1.480 mm |
| Height open | 1.915 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
| Insertion height | 410 mm |
Water connection
| Water inlet | 3/4" |
|---|---|
| Water outlet | Ja |
Details
| Washing temperature | 55 - 60 °C |
|---|---|
| Purge temperature | 80 °C - 85 °C |
| Material | Stainless Steel |
| Rinse program 1 | Rinse time 60 at max 120 Baskets/h |
| Rinse program 2 | Rinse time 90 at max 80 Baskets/h |
| Rinse program 3 | Rinse time 120 at max 60 Baskets/h |
| Rinse program 4 | Rinse time 180 at max 40 Baskets/h |
Connected load
| Power | 19 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N~/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 230 kg |
| Net weight | 200 kg |
