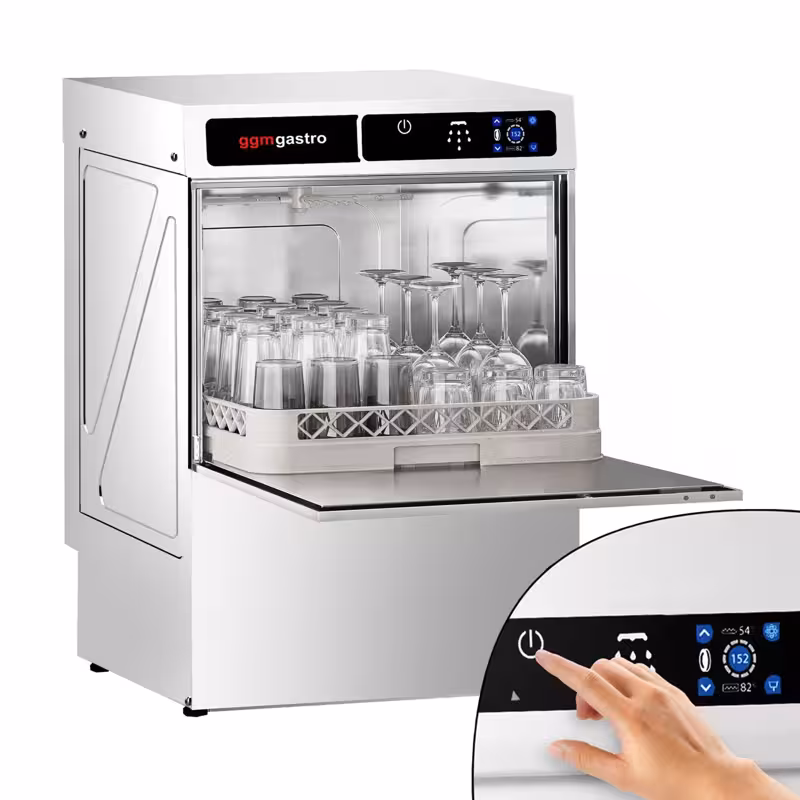

Compact Glasswasher - Touchscreen - 3.3kW - with Drain Pump, Detergent & Rinse Aid Pumps
** The picture may slightly differ from the original.

** The picture may slightly differ from the original.
Compact Glasswasher - Touchscreen - 3.3kW - with Drain Pump, Detergent & Rinse Aid Pumps
Product Advantages
- Intuitive touchscreen operation: Allows simple and quick control of the machine, significantly enhancing user comfort.
- Remaining time display: Provides information on the remaining wash time, enabling better planning of workflows.
- Versatile setting options: Offer flexibility in use and allow individual adjustments to different requirements.
- Automatic detergent & rinse aid dosing: Ensures optimal dosing and saves time and effort during operation.
Description
- Glasswasher with detergent, rinse aid and alkali pump
- Door opening with safety system
- Rotating, non-clogging wash and rinse arms
- With 3 programmes
- Digitally controlled rinse and wash temperature
Efficient glasswasher for professional use
This glasswasher impresses with its high washing performance and ease of use. The undercounter unit is made of high-quality stainless steel and features a fully sealed housing with water protection according to IPX5. The rotating wash and rinse arms made of polypropylene are non-clogging and ensure optimal cleaning results. The digital control guarantees precise rinse and wash temperatures for efficient operation.
Versatile functions and safe handling
With three selectable programmes, the machine adapts flexibly to different requirements. The integrated alkali pump enables the pumping of wastewater over height differences to the drain connection. The door opening is equipped with a safety system that ensures safe operation. Adjustable feet allow individual height adjustment, making the machine perfectly fit into any professional gastronomy or bar environment.
Installation & Operation
- Information on the mains voltage can be found in the operating instructions.
- To reduce the heating time, a hot water connection should be used. The maximum temperature of 50°C must not be exceeded.
- A detailed guide can be found under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Use only chlorine-free cleaners to protect the device.
Technical data
Dimensions
| Width | 475 mm |
|---|---|
| Depth | 540 mm |
| Height | 765 mm |
Basket dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Rack height
| Height | 330 mm |
|---|
Water connection
| Water inlet | 3/4" |
|---|---|
| Water drain | R 3/4 |
Details
| Operation | Touchscreen |
|---|---|
| Washing pump power | 270 Watt |
| Maximum volume | 70 dB |
| Max. Crockery height | 320 mm |
Flushing process
| Washing temperature | 55 - 60 °C |
|---|---|
| Purge temperature | 80 °C - 85 °C |
| Washing program 1 | Washing time 105 seconds, 33 baskets / hour |
| Washing program 2 | Washing time 135 seconds, 26 baskets / hour |
| Rinse program 3 | Rinse time 195 seconds, 18 baskets / hour |
| Water consumption per run | 2,50 l |
Capacity
| Tank capacity | 18,40 l |
|---|---|
| Boiler capacity | 2,80 l |
Connected load
| Power | 3,30 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 43 kg |
| Net weight | 35 kg |
Download / Exploded drawing
