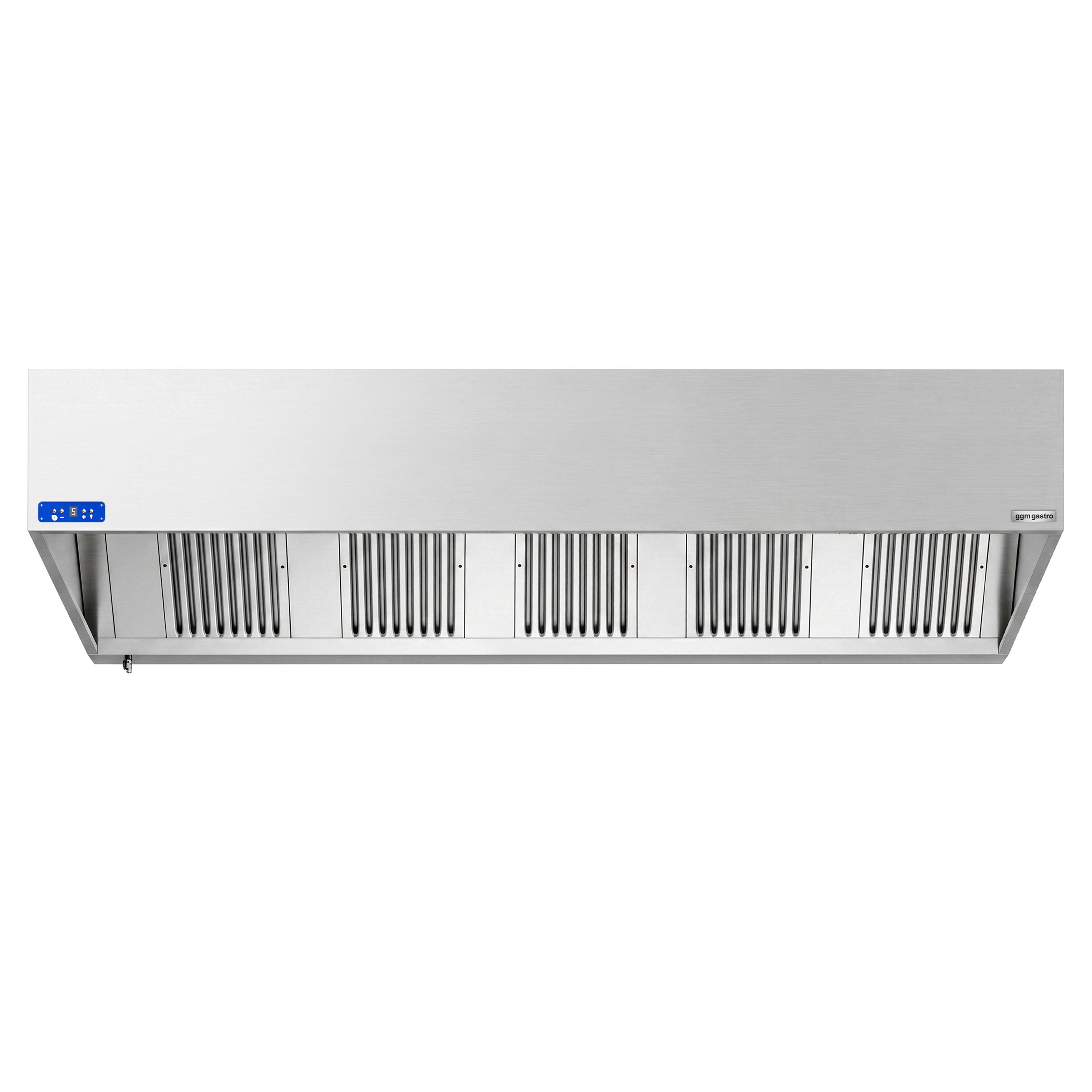

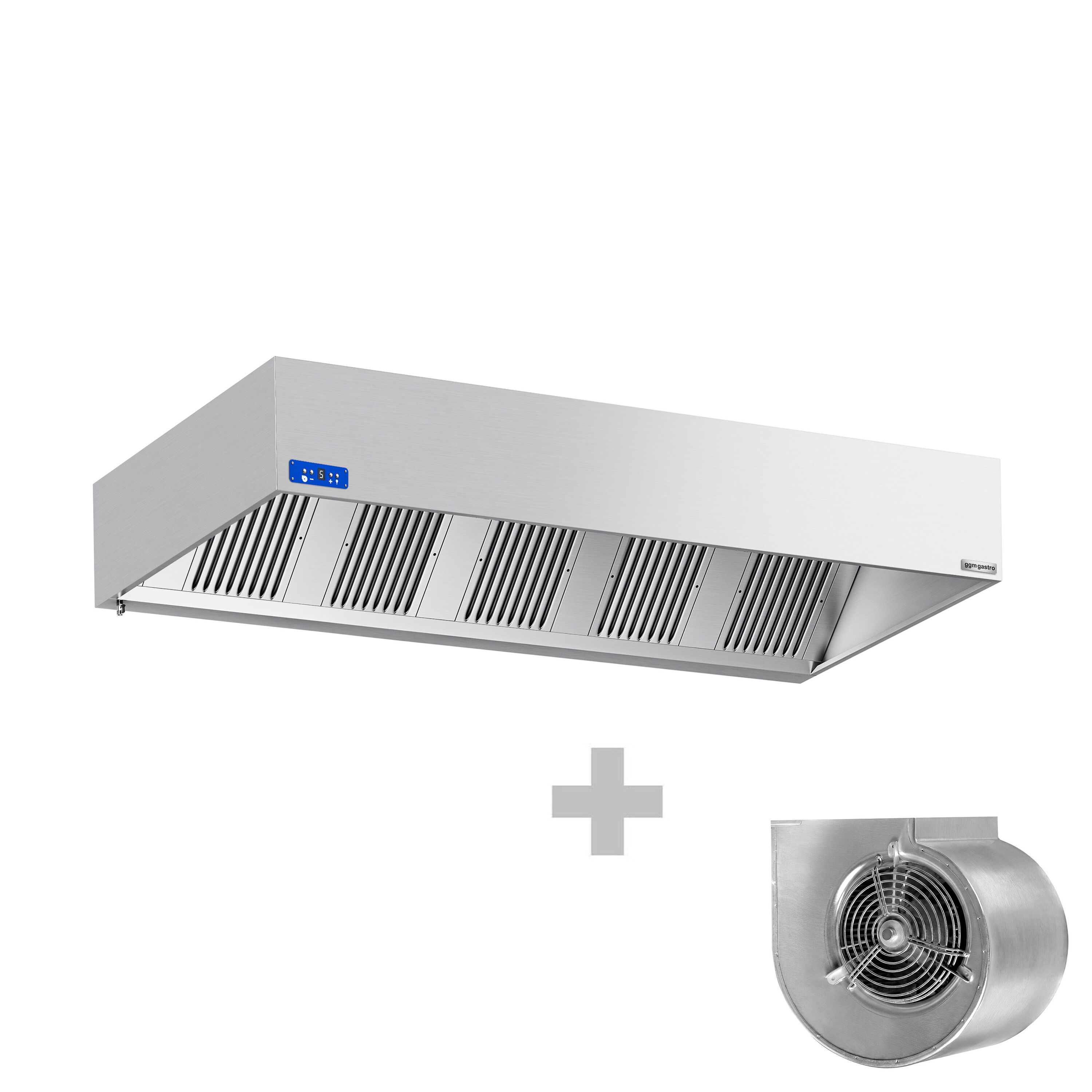

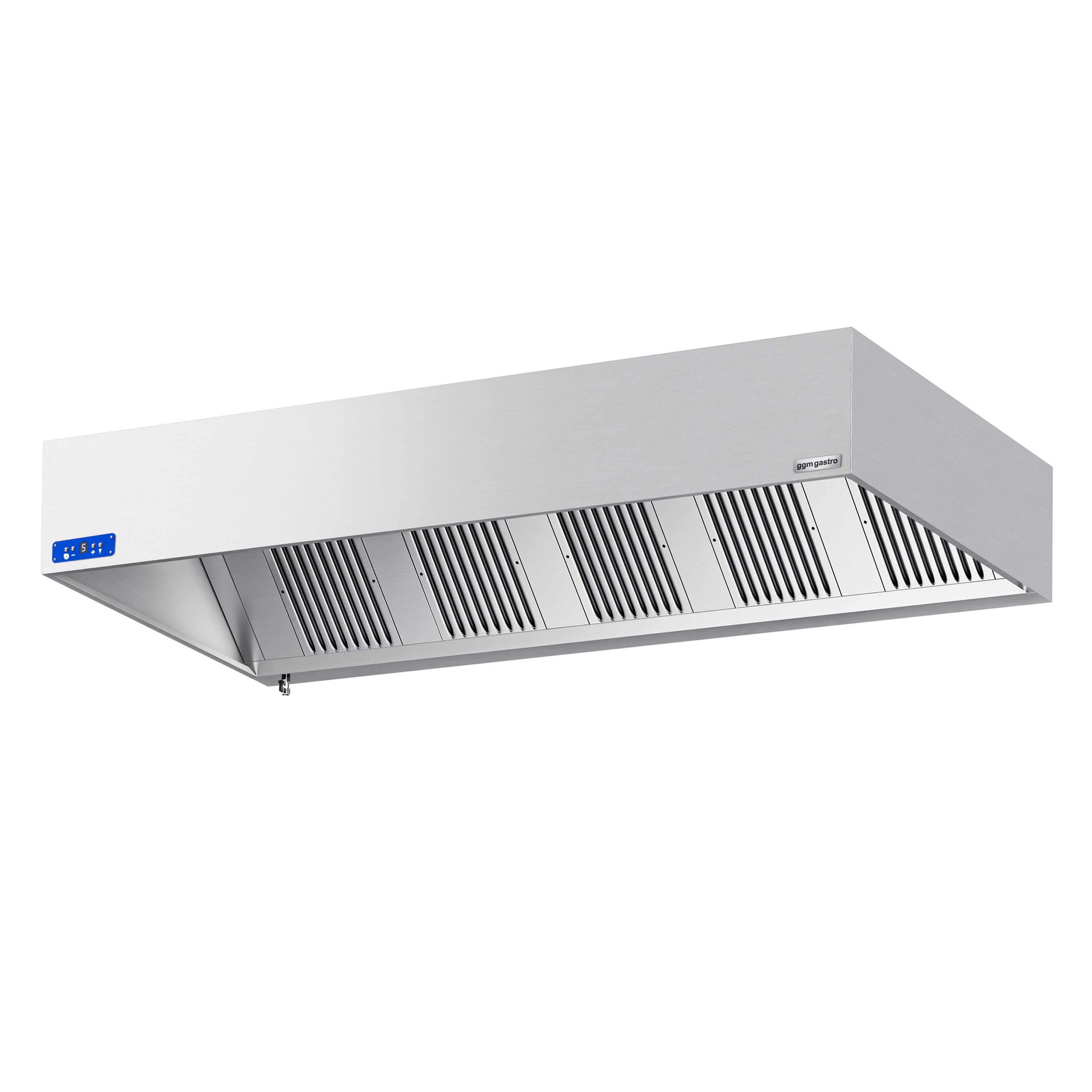

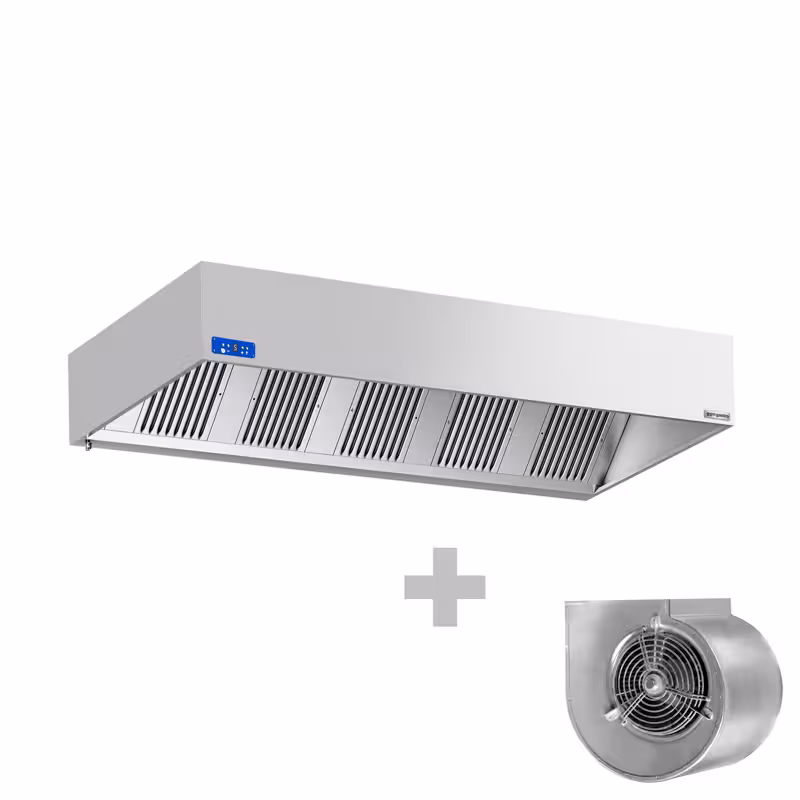

Commercial Wall-Mounted Extractor Hood with Motor - 2800mm - with Speed Controller, Baffle Filters & Lighting

SKU KLS2814MInstallation depth: 1400 mm
Rate now

** The picture may slightly differ from the original.

1.379,99 € *
RRP €2,449.99
Delivery time: 5 - 6 Weeks
Free delivery**
Print* net price | gross price incl. 0% VAT.: €1,379.99

** The picture may slightly differ from the original.

Accessories (5)
Spare Parts (4)

Product Advantages

  • Made in Italy: High-quality workmanship guarantees long-lasting quality.
  • Single-block structure made of AISI 304 stainless steel: Robust construction ensures stability and easy cleaning.
  • Grease-free labyrinth filters made of 18/10 stainless steel: Efficient grease separation improves air quality and facilitates maintenance.

Description

Product Overview

The box canopy with motor is a high-quality ventilation solution measuring 2800 mm in length, specifically designed for use in professional kitchens and commercial environments. It impresses with its robust construction and integrated lighting, which ensures optimal visibility. Thanks to the built-in controller, the performance can be flexibly adjusted to suit the respective requirements.

Product Details

This model features an electronically welded construction that guarantees maximum stability and durability. The drip-free, hermetic gutter safely collects fats and is equipped with practical drain taps, significantly facilitating cleaning. The surface is Scotch-Brite satin-finished, providing an attractive appearance as well as easy maintenance. The single-block structure made of stainless steel AISI 304 ensures a hygienic and corrosion-resistant design. In addition, grease-free labyrinth filters made of stainless steel 18/10 are integrated, effectively retaining grease particles and improving air quality.

Conclusion and Areas of Application

This canopy is perfectly suited for professional use in large-scale kitchens, restaurants, and catering operations where a reliable and high-performance ventilation solution is required. The combination of robust workmanship, easy grease management, and flexible control makes it an indispensable aid in complying with hygiene and safety standards. With its compact design and quick installation, it is also ideal for efficient kitchen operation.

Installation & Operation

  • Pipe diameters should always remain consistent or only be professionally planned to be reduced. Incorrect reduction can affect the entire system.

Cleaning & Maintenance

  • Modern flame protection filters made of stainless steel are designed to be cleaned in commercial dishwashers.
  • Daily cleaning prevents burning in/resin build-up.
  • Carefully lift the filter out of the holder (caution: fat droplets!).
  • For heavy soiling, rinse off coarse fat with hot water.
  • Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
  • The filters must be completely dry before being reinstalled to prevent mould or bacterial growth.

Technical data

Dimensions

Width 2.800 mm
Depth 1.400 mm
Height 450 mm

Filter dimensions

Width 400 mm
Depth 500 mm

Drain dimensions:

Width 260 mm
Depth 300 mm

Details

Number of filters 5
Extraction rate 2.800 m³/h
Air turnover per hour 2.200 m³

Connected load

Power 420 Watt
Voltage 230V
Phase(s) 1N~/PE
Frequency 50 Hz

Delivery

Shipping method Haulage
Delivered as Mounted
Gross weight 91 kg
Net weight 68 kg

Download / Exploded drawing
