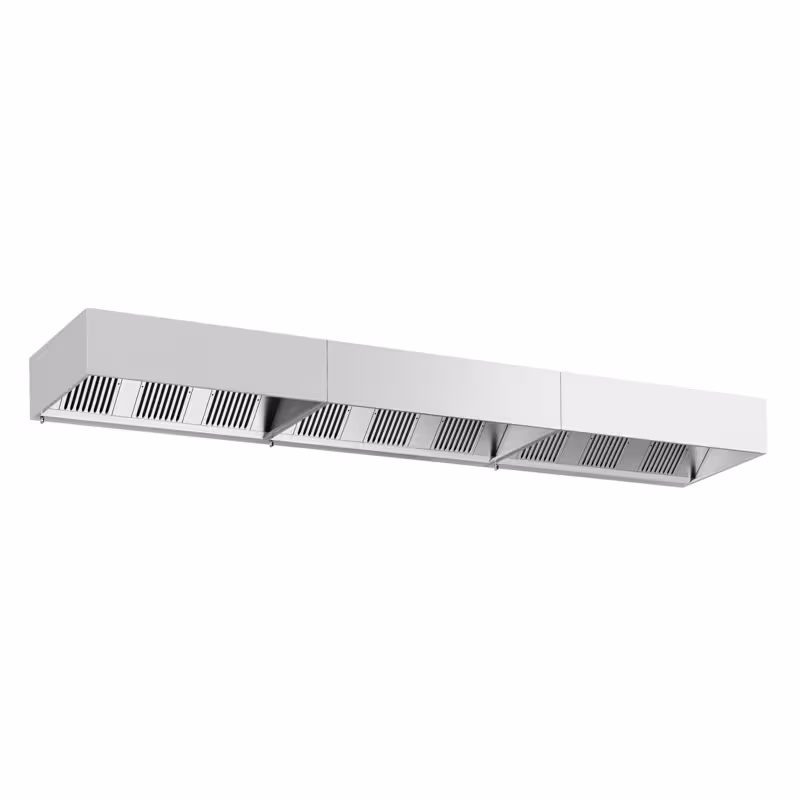

Commercial Wall-Mounted Extractor Hood - 5800mm - with Baffle Filters & Lighting
** The picture may slightly differ from the original.
** The picture may slightly differ from the original.
Commercial Wall-Mounted Extractor Hood - 5800mm - with Baffle Filters & Lighting
Product Advantages
- Made in Europe: Ensures high quality standards and reliability through European manufacturing.
- High-quality workmanship: Guarantees durability and an attractive appearance of the product.
- Single-block structure made of AISI 304 stainless steel: Provides stability and corrosion resistance for long-term use.
- Grease-free labyrinth filters made of 18/10 stainless steel: Enable effective grease separation and facilitate cleaning.
Description
Product Overview
The canopy hood with a width of 5800 mm is a high-quality solution for professional kitchens and industrial applications. It impresses with its robust construction made of AISI 304 stainless steel, which ensures durability and easy cleaning. Thanks to the integrated lighting and filter system, it provides optimal conditions for a clean and safe working environment.
Product Details
The hood is electronically welded, ensuring an especially stable and durable construction. A drip-free, hermetic gutter reliably collects fats and is equipped with practical drain taps to facilitate cleaning. The Scotch-Brite satin finish provides an attractive, matte appearance and reduces fingerprints. The grease-free labyrinth filters made of 18/10 stainless steel ensure effective air purification and are particularly low-maintenance. The minute-quick assembly allows for rapid installation without much effort.
Conclusion and Areas of Application
This canopy hood is perfectly suited for use in large-scale kitchens, catering establishments, and industrial production facilities where reliable extraction and grease separation are required. Its compact and robust construction makes it ideal for long-term use under demanding conditions. With the combination of efficient filter and integrated lighting, it improves both air quality and working conditions.
Installation & Operation
- Pipe diameters should always remain consistent or only be professionally planned to be reduced. Incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in commercial dishwashers.
- Daily cleaning prevents burning in/resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- For heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinstalled to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 5.800 mm |
|---|---|
| Depth | 1.100 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Details
| Number of filters | 9 |
|---|---|
| Conveyor volume | 6.000 m³/h/h |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 165 kg |
| Net weight | 130 kg |
Download / Exploded drawing
Safety and disposal instructions
