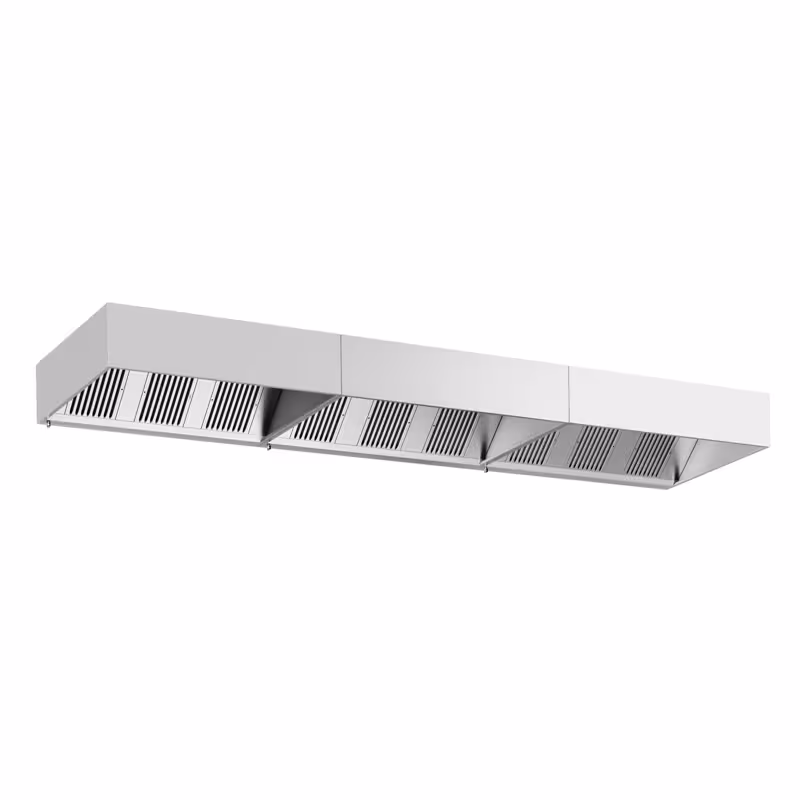

Commercial Wall-Mounted Extractor Hood - 5800mm - with Baffle Filters & LED Lighting
SKU KLP5814#SETInstallation depth: 1400 mm
Rate now
** The picture may slightly differ from the original.
Print* net price | gross price incl. 0% VAT.: €2,349.99
** The picture may slightly differ from the original.
Commercial Wall-Mounted Extractor Hood - 5800mm - with Baffle Filters & LED Lighting
SKU KLP5814#SETInstallation depth: 1400 mm
Rate now
Print* net price | gross price incl. 0% VAT.: €2,349.99
Accessories (1)
Product Advantages
- Made in Europe: Ensures high quality standards and reliability through European manufacturing.
- High-quality workmanship: Guarantees durability and an attractive appearance of the product.
- Single-block structure made of AISI 304 stainless steel: Provides stability and corrosion resistance for long-term use.
- Grease-free labyrinth filters made of 18/10 stainless steel: Enable effective grease separation and facilitate cleaning.
Description
Product Overview
The canopy hood with a width of 5800 mm is a high-quality and robust solution for professional kitchens and industrial applications. It impresses with its electronically welded construction, which ensures a durable and stable design. The compact design allows for easy integration into various spatial concepts while providing efficient functionality.Product Details
The hood features a drip-free, hermetic gutter for collecting fats, equipped with practical drain taps, which significantly facilitate cleaning and maintenance. The Scotch-Brite satin-finished stainless steel not only provides an appealing appearance but also increases resistance to corrosion and soiling. Integrated lighting ensures optimal visibility during work. The single-block structure made of AISI 304 stainless steel guarantees stability and hygiene, while the grease-free labyrinth filters made of 18/10 stainless steel ensure effective filtration.Conclusion and Areas of Application
This canopy hood is ideally suited for use in large kitchens, catering establishments, and other commercial areas where reliable extraction and grease separation are required. It stands out due to its easy installation and maintenance-friendly design. Thanks to its durable material quality and well-thought-out construction, it represents a sustainable investment for efficient and hygienic working environments.Installation & Operation
- Pipe diameters should always remain consistent or only be professionally planned to be reduced. Incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in commercial dishwashers.
- Daily cleaning prevents burning in/resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- For heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinstalled to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 5.800 mm |
|---|---|
| Depth | 1.400 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Details
| Number of filters | 9 |
|---|---|
| Conveyor volume | 6.000 m³/h/h |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 165 kg |
| Net weight | 140 kg |
Download / Exploded drawing
Download / Exploded drawing
Safety and disposal instructions
Safety and disposal instructions
Download / Exploded drawing
Safety and disposal instructions
