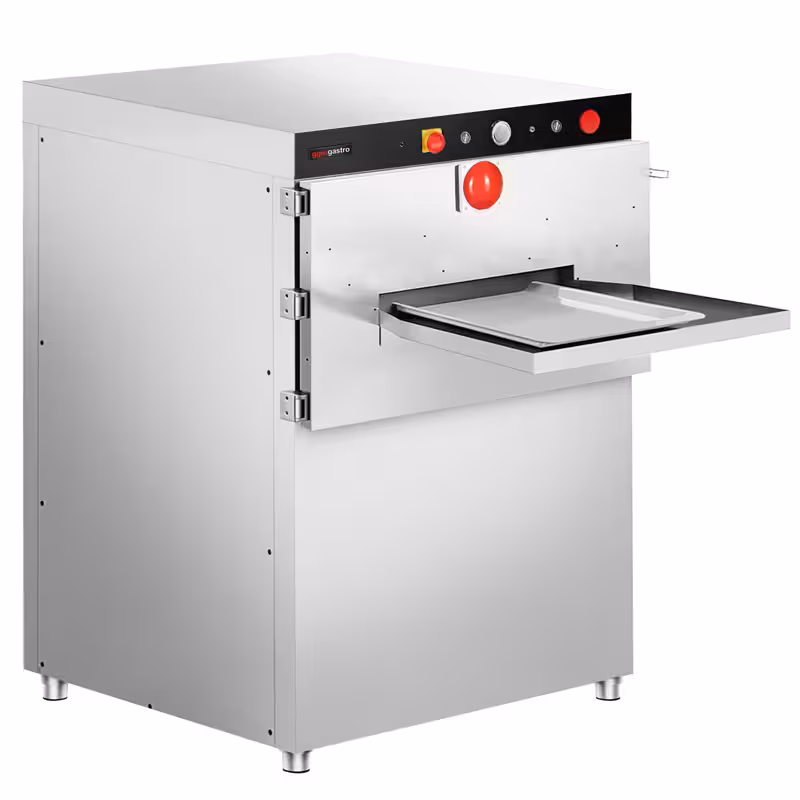

Commercial Tray Dishwasher – Single-tray operation - 600x400mm trays - 3.2 kW
** The picture may slightly differ from the original.
** The picture may slightly differ from the original.
Commercial Tray Dishwasher – Single-tray operation - 600x400mm trays - 3.2 kW
Product Advantages
- Very high hourly output: Enables the rapid and efficient processing of large quantities in the shortest possible time for maximum productivity.
- Targeted spray geometry: Specially aligned nozzles and spray arms ensure comprehensive and shadow-free cleaning of the entire tray surface.
- High cost-effectiveness: Reduces water, energy, and chemical consumption per cleaned tray through optimised flow-through systems.
Description
- 360 trays per hour
- Adjustable washing intensity
- Washing/program duration: 4 seconds entry, 2 seconds dwell time inside, 4 seconds exit – total 10 seconds
Efficient tray dishwasher for professional use
This tray dishwasher with 3.20 kW impresses with its high washing performance and a simple, intuitive control panel that allows for quick start-up. The washing intensity can be individually adjusted via a rotary dial. The machine is made of high-quality stainless steel and features feet made of stainless steel, ensuring a long service life. An integrated water heating system guarantees optimal cleaning results.
Durability and user-friendliness for demanding applications
The washing time of only 10 seconds allows for efficient cleaning of up to 360 trays per hour. The washing brushes are easy to dismantle and clean. Safety is ensured by an emergency stop switch and surge protection. The water pan at the basin outlet prevents drip water on the floor, while a drain valve allows for easy disposal of dirty water. This machine is ideal for use in the catering industry and other professional sectors where speed and hygiene are top priorities.
Installation & Operation
- When the device is installed and started up for the first time, the water heating system will only be activated once the automatic water inlet is complete
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1500-2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
Technical data
Dimensions
| Width | 790 mm |
|---|---|
| Depth | 1.390 mm |
| Height | 1.270 mm |
max. tray size
| Width | max 600 mm |
|---|---|
| Depth | max 400 mm |
Water connection
| Water inlet | 3/4" |
|---|
Details
| Capacity | 360 Trays per hour |
|---|---|
| Rinse temperature | 40 °C |
| Flushing time | 10 seconds |
Connected load
| Power | 3,50 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N~/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 160 kg |
| Net weight | 140 kg |
Download / Exploded drawing
Safety and disposal instructions
