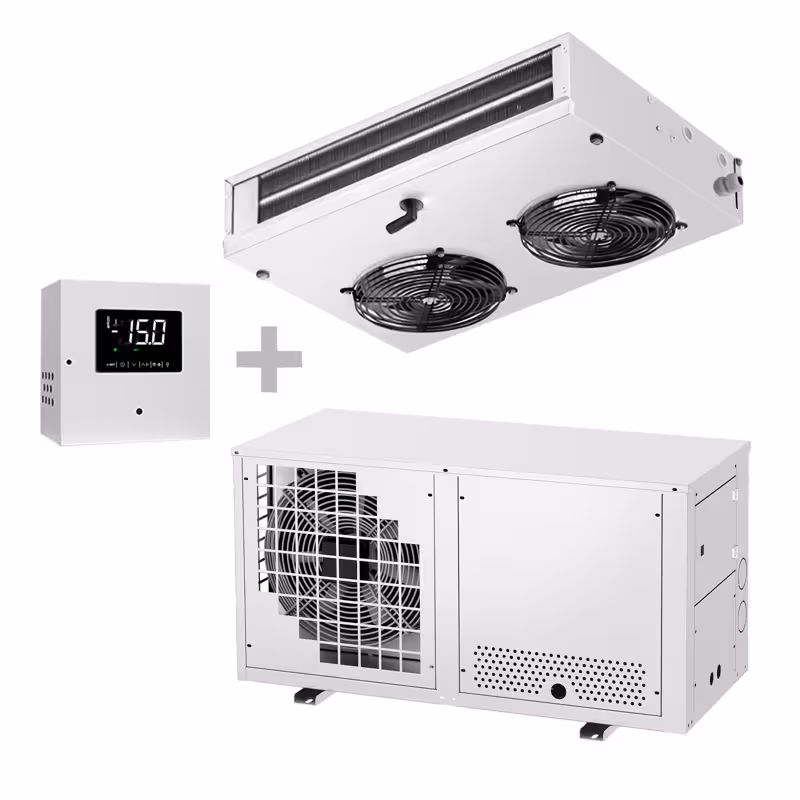

Commercial Remote Split System Freezer Pack - max. for 15 m³ - IP rating IP 51 - 373W
** The picture may slightly differ from the original.
** The picture may slightly differ from the original.
Commercial Remote Split System Freezer Pack - max. for 15 m³ - IP rating IP 51 - 373W
Description
- EVCO display
- Heat exchanger with copper pipes and aluminium fins
Efficient split freezer unit for optimal cooling
This split freezer unit impresses with its IP 51 protection rating and an electronic control with EVCO display. It features a digital thermostat and an expansion valve for precise temperature regulation. The separate installation of the evaporator and condenser units allows heat and noise to be expelled outside, making the unit particularly flexible in use.
Robust construction and versatile applications
The self-supporting housing made of galvanised, powder-coated sheet metal guarantees long service life. The hermetic compressor with thermal winding protection ensures strong and consistent cooling. With a condensate drain and programmable automatic defrost, the unit is ideal for demanding cooling applications up to 15m³. It is perfectly suited for commercial freezer use.
Installation & Operation
- Despite the IP 51 protection, we recommend installation indoors only
Technical data
Dimensions
| Width | 1.430 mm |
|---|
Evaporator unit dimensions
| Width | 1.430 mm |
|---|---|
| Depth | 685 mm |
| Height | 245 mm |
Capacitor unit dimensions
| Width | 960 mm |
|---|---|
| Depth | 525 mm |
| Height | 489 mm |
Details
| Maximum room volume | 15 m³ |
|---|---|
| Temperature | -22 °C to -10 °C |
| Ambient temperature up to | °C |
| Compressor output | 373 Watt |
| Connected load | 230V/ 50 Hz |
| Water protection | IP 51 (protection against vertically falling dripping water) |
| Dust protection | IP 51 ( protection against dust in damaging quantities) |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Not Mounted |
| Gross weight | 145 kg |
| Net weight | 91 kg |
Download / Exploded drawing
Safety and disposal instructions
