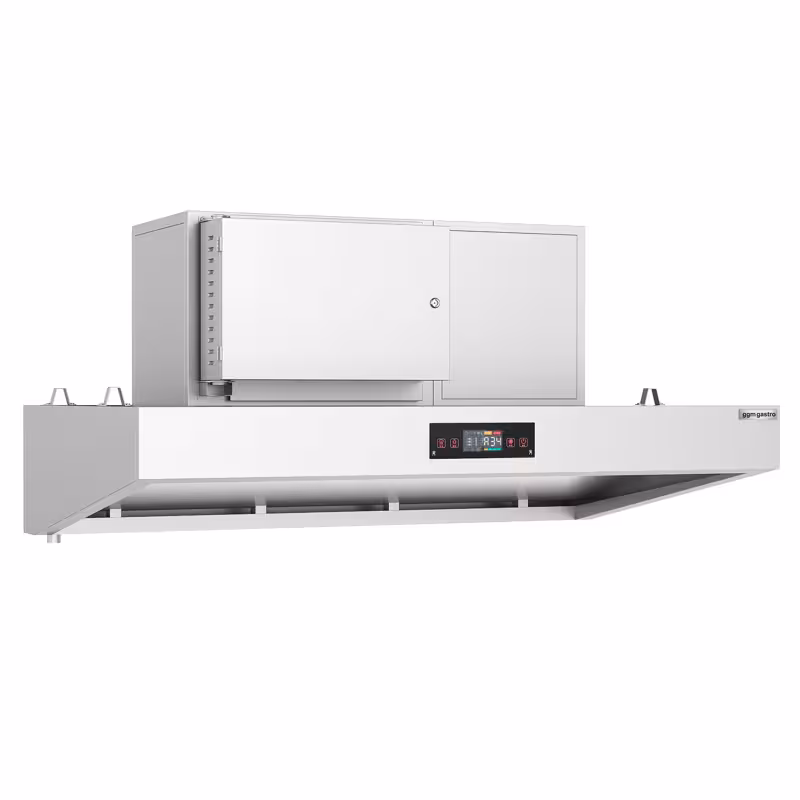

Commercial Plasma Extraction Canopy - 2000mm - Ducted/Recirculating - up to 80% Odour Reduction - Touch Control Panel - LED Lighting
SKU HDHK2011#SET5-stage cleaning
Rate now
** The picture may slightly differ from the original.
Print* net price | gross price incl. 0% VAT.: €2,419.99
** The picture may slightly differ from the original.
Commercial Plasma Extraction Canopy - 2000mm - Ducted/Recirculating - up to 80% Odour Reduction - Touch Control Panel - LED Lighting
SKU HDHK2011#SET5-stage cleaning
Rate now
Print* net price | gross price incl. 0% VAT.: €2,419.99
Accessories (1)
Spare Parts (5)
Product Advantages
- Integrated smoke purification through a hybrid filter system: Eliminates grease and odours with high efficiency and ensures residue-free exhaust air without oily smoke.
- Maximum grease and smoke separation of up to 98%: Improves air quality and significantly reduces contamination in the kitchen.
- Steam self-cleaning system: Automates filter cleaning and minimises maintenance effort.
Description
- Complete set including motor, control unit and UV odour module
- 5-stage filtration
- Maximum grease and smoke separation of up to 98%
- Arc suppression within 0.0001 seconds
Efficient hybrid extractor hood for professional kitchens
This hybrid extractor hood impresses with its high-quality industrial design and offers contactless gesture control for optimal hygiene. The soft-touch control panel allows for easy manual operation. With moisture- and grease-protected LED spotlights, it provides excellent visibility in the kitchen. The housing made of corrosion-resistant stainless steel SS 201 ensures durability and robustness.Powerful filtration and versatile use in the catering industry
The complete set includes a motor, control unit and a UV odour module for effective odour retention. The 5-stage filtration achieves grease and smoke separation of up to 98%. The integrated electrostatic honeycomb filter cell and the arc suppression within 0.0001 seconds guarantee the highest safety. Ideally suited for commercial kitchens with high emission levels.Installation & Operation
- Pipe diameters should always remain consistent or only be professionally planned to be reduced. Incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Regular maintenance of the filter cells is required according to the saturation indicator.
- The self-cleaning function significantly extends the manual cleaning cycles.
- UV lamps must only be operated with the housing fully closed.
- Regular emptying of the oil collection container is mandatory.
- Filter cells must only be reinserted in a dry condition after manual cleaning.
Technical data
Dimensions
| Width | 2.000 mm |
|---|---|
| Depth | 1.100 mm |
| Height | 990 mm |
Details
| Filter type | Hybrid (ESP + UV-C) mit 5-stufige Reinigung |
|---|---|
| Extraction rate | 4.000 m³/h |
| Fat removal efficiency | 98 % |
| Odor reduction level | 80 % |
| UV lamp service life | up to 10.000 h |
| Operating volume | approx. 65 dB |
Connected load
| Power | 1,40 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Partly Mounted |
| Gross weight | 240 kg |
| Net weight | 160 kg |
Download / Exploded drawing
Download / Exploded drawing
Download / Exploded drawing
